23S08 Series

Manufacturer: Renesas Electronics Corporation

Catalog

3.3V ZERO DELAY CLOCK MULTIPLIER, SPREAD SPECTRUM COMPATIBLE

Part	Frequency - Max [Max]	Number of Circuits	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [y]	Package / Case	Package / Case [y]	Ratio - Input:Output	Output	Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Package / Case	Divider/Multiplier
Renesas Electronics Corporation 23S08-1HPGG8	133.3 MHz	1	16-TSSOP	70 °C	0 °C	4.4 mm	16-TSSOP	0.173 in	1:8	CMOS LVTTL	Clock Multiplier Zero Delay Buffer	3.6 V	3 V	Surface Mount

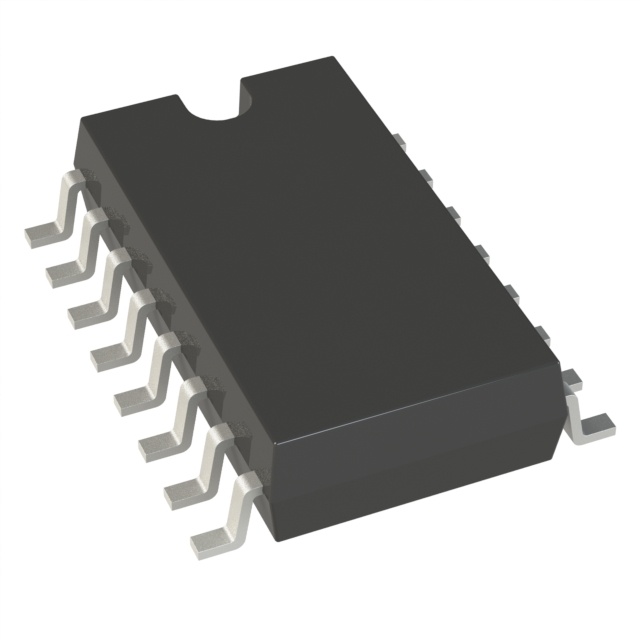

Renesas Electronics Corporation 23S08-1DCG8	133.3 MHz	1	16-SOIC	70 °C	0 °C		16-SOIC		1:8	CMOS LVTTL	Clock Multiplier Zero Delay Buffer	3.6 V	3 V	Surface Mount	0.154 in 3.9 mm
Renesas Electronics Corporation 23S08-3DCGI8	133.3 MHz	1	16-SOIC	85 °C	-40 C		16-SOIC		1:8	CMOS LVTTL	Clock Multiplier Zero Delay Buffer	3.6 V	3 V	Surface Mount	0.154 in 3.9 mm	No/Yes
Renesas Electronics Corporation 23S08E-3DCGI	200 MHz	1	16-SOIC	85 °C	-40 C		16-SOIC		1:8	CMOS LVTTL	Clock Multiplier Zero Delay Buffer	3.6 V	3 V	Surface Mount	0.154 in 3.9 mm	No/Yes
Renesas Electronics Corporation 23S08-1DCGI	133.3 MHz	1	16-SOIC	85 °C	-40 C		16-SOIC		1:8	CMOS LVTTL	Clock Multiplier Zero Delay Buffer	3.6 V	3 V	Surface Mount	0.154 in 3.9 mm
Renesas Electronics Corporation 23S08-2HDCG	133.3 MHz	1	16-SOIC	70 °C	0 °C		16-SOIC		1:8	CMOS LVTTL	Clock Multiplier Zero Delay Buffer	3.6 V	3 V	Surface Mount	0.154 in 3.9 mm
Renesas Electronics Corporation 23S08-3DCG8	133.3 MHz	1	16-SOIC	70 °C	0 °C		16-SOIC		1:8	CMOS LVTTL	Clock Multiplier Zero Delay Buffer	3.6 V	3 V	Surface Mount	0.154 in 3.9 mm	No/Yes
Renesas Electronics Corporation 23S08-1HPGGI	133.3 MHz	1	16-TSSOP	85 °C	-40 C	4.4 mm	16-TSSOP	0.173 in	1:8	CMOS LVTTL	Clock Multiplier Zero Delay Buffer	3.6 V	3 V	Surface Mount
Renesas Electronics Corporation 23S08-1HDCG	133.3 MHz	1	16-SOIC	70 °C	0 °C		16-SOIC		1:8	CMOS LVTTL	Clock Multiplier Zero Delay Buffer	3.6 V	3 V	Surface Mount	0.154 in 3.9 mm
Renesas Electronics Corporation 23S08E-3DCG	200 MHz	1	16-SOIC	70 °C	0 °C		16-SOIC		1:8	CMOS LVTTL	Clock Multiplier Zero Delay Buffer	3.6 V	3 V	Surface Mount	0.154 in 3.9 mm	No/Yes
