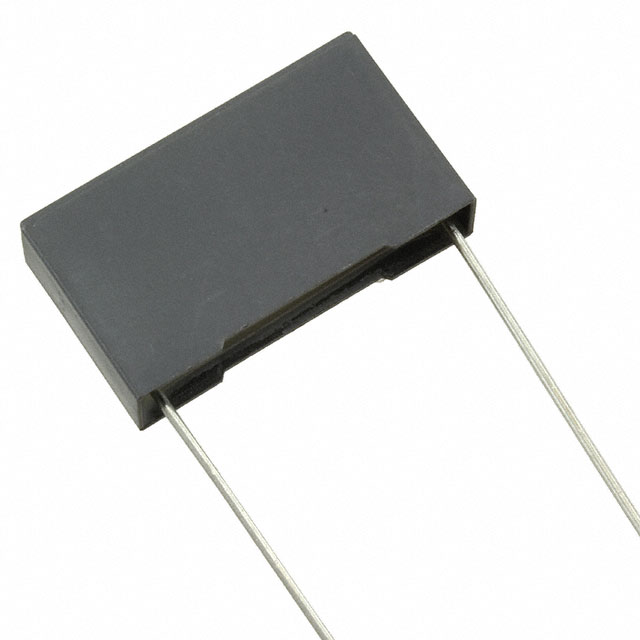

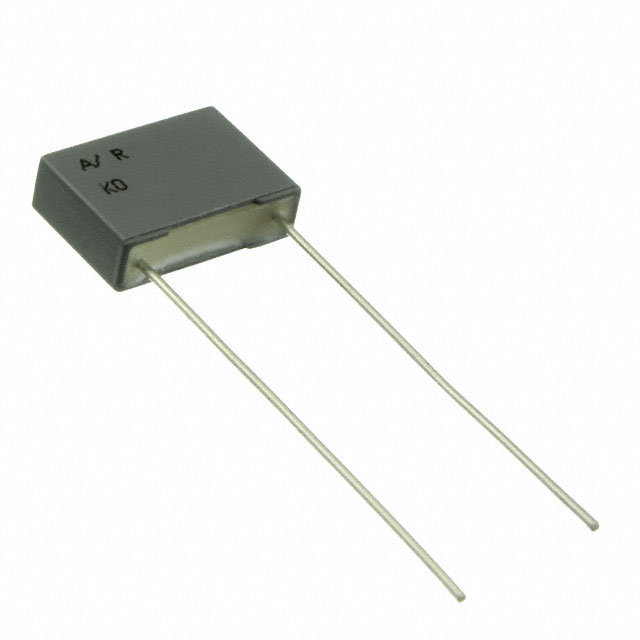

R75TI Series

Manufacturer: KEMET

Catalog

CAP, AEC-Q200, 8200PF, 1.6KV, FILM ROHS COMPLIANT: YES

Part	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Mounting Type	Lead Spacing	Lead Spacing	Package / Case	Dielectric Material	Ratings	Termination	Voltage Rating - DC	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max)	ESR (Equivalent Series Resistance)	Applications	Height - Seated (Max) [z]	Height - Seated (Max) [Max] [z]	Capacitance	Height - Seated (Max) [Max]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]
KEMET R75TI182050H3J	650 V	-55 C	125 °C	0.236 "	6 mm	0.709 in	18 mm	5 %	Through Hole	15 mm	0.591 in	Radial	Polypropylene (PP) Metallized	AEC-Q200	PC Pins	1.6 kV	1600 V	0.476 "	12.1 mm	97 mOhm	Automotive High Frequency Switching High Pulse DV/DT
KEMET R75TI14704030J	650 V	-55 C	105 ░C	0.157 "	4 mm	0.709 in	18 mm	5 %	Through Hole	15 mm	0.591 in	Radial	Polypropylene (PP) Metallized	AEC-Q200	PC Pins	1.6 kV	1600 V				Automotive High Frequency Switching High Pulse DV/DT	10.1 mm	0.398 in	0.0047 µF
KEMET R75TI1560AA30J	650 V	-55 C	105 ░C	0.197 "		0.709 in	18 mm	5 %	Through Hole	15 mm	0.591 in	Radial	Polypropylene (PP) Metallized	AEC-Q200	PC Pins	1.6 kV	1600 V	0.437 in			Automotive High Frequency Switching High Pulse DV/DT			0.0056 µF	11.1 mm	5 mm
KEMET R75TI227050H3J	650 V	-55 C	125 °C	0.394 in	10 mm	0.709 in	18 mm	5 %	Through Hole	15 mm	0.591 in	Radial	Polypropylene (PP) Metallized	AEC-Q200	PC Pins	1.6 kV	1600 V		16.1 mm	29.5 mOhms	Automotive High Frequency Switching High Pulse DV/DT			0.027 µF			0.634 "
KEMET R75TI218050H3J	650 V	-55 C	125 °C	0.335 in	8.5 mm	0.709 in	18 mm	5 %	Through Hole	15 mm	0.591 in	Radial	Polypropylene (PP) Metallized	AEC-Q200	PC Pins	1.6 kV	1600 V			44.2 mOhms	Automotive High Frequency Switching High Pulse DV/DT			0.018 µF	14.6 mm		0.575 in
KEMET R75TI139050H3J	650 V	-55 C	125 °C	0.157 "	4 mm	0.709 in	18 mm	5 %	Through Hole	15 mm	0.591 in	Radial	Polypropylene (PP) Metallized	AEC-Q200	PC Pins	1.6 kV	1600 V			204 mOhms	Automotive High Frequency Switching High Pulse DV/DT	10.1 mm	0.398 in	3900 pF
KEMET R75TI156050H3J	650 V	-55 C	125 °C	0.197 "		0.709 in	18 mm	5 %	Through Hole	15 mm	0.591 in	Radial	Polypropylene (PP) Metallized	AEC-Q200	PC Pins	1.6 kV	1600 V	0.437 in		142.1 mOhms	Automotive High Frequency Switching High Pulse DV/DT			0.0056 µF	11.1 mm	5 mm
KEMET R75TI1470AA00J	650 V	-55 C	105 ░C	0.157 "	4 mm	0.512 "	13 mm	5 %	Through Hole	10 mm	0.394 in	Radial	Polypropylene (PP) Metallized	AEC-Q200	PC Pins	1.6 kV	1600 V		9.1 mm		Automotive High Frequency Switching High Pulse DV/DT			0.0047 µF			0.358 in
KEMET R75TI210050H3J	650 V	-55 C	125 °C	0.236 "	6 mm	0.709 in	18 mm	5 %	Through Hole	15 mm	0.591 in	Radial	Polypropylene (PP) Metallized	AEC-Q200	PC Pins	1.6 kV	1600 V	0.476 "	12.1 mm	79.6 mOhms	Automotive High Frequency Switching High Pulse DV/DT			10000 pF
KEMET R75TI21004030J	650 V	-55 C	105 ░C	0.236 "	6 mm	0.709 in	18 mm	5 %	Through Hole	15 mm	0.591 in	Radial	Polypropylene (PP) Metallized	AEC-Q200	PC Pins	1.6 kV	1600 V	0.476 "	12.1 mm		Automotive High Frequency Switching High Pulse DV/DT			10000 pF
