FI-WE31P Series

Catalog

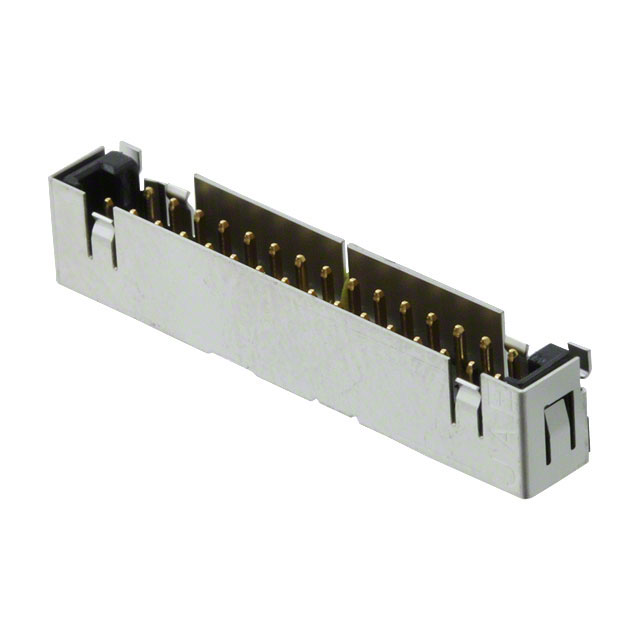

CONN HEADER SMD R/A 31POS 1.25MM

Part	Insulation Color	Mounting Type	Shrouding	Style	Number of Positions Loaded	Fastening Type	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Termination	Current Rating (Amps)	Contact Finish - Mating	Contact Shape	Number of Rows [custom]	Material Flammability Rating	Contact Material	Pitch - Mating	Pitch - Mating	Contact Type	Features	Contact Finish - Post	Connector Type	Insulation Material	Voltage Rating	Number of Positions [custom]	Operating Temperature [Max]	Operating Temperature [Min]
JAE Electronics FI-WE31P-HFE-E1500	Black	Right Angle Surface Mount	Shrouded - 4 Wall	Board to Cable/Wire	All	Friction Lock	2.4 mm	0.094 in	3.7 mm	0.146 in	1.4 mm	0.055 in	Solder	1 A	Gold	Square	2	UL94 V-0	Copper Alloy	0.049 in	1.25 mm	Male Pin	Shielded Solder Retention	Tin Tin-Alloy	Receptacle	Polyphenylene Sulfide (PPS) Glass Filled	200 V	31	80 °C	-40 C
JAE Electronics FI-WE31P-HFE	Black	Right Angle Surface Mount	Shrouded - 4 Wall	Board to Cable/Wire	All	Friction Lock	2.4 mm	0.094 in	3.7 mm	0.146 in	1.4 mm	0.055 in	Solder	1 A	Gold	Square	2	UL94 V-0	Copper Alloy	0.049 in	1.25 mm	Male Pin	Shielded Solder Retention	Tin Tin-Alloy	Receptacle	Polyphenylene Sulfide (PPS) Glass Filled	200 V	31	80 °C	-40 C
