PTSM 0,5 Series
Manufacturer: Phoenix Contact
Beta
⌘K

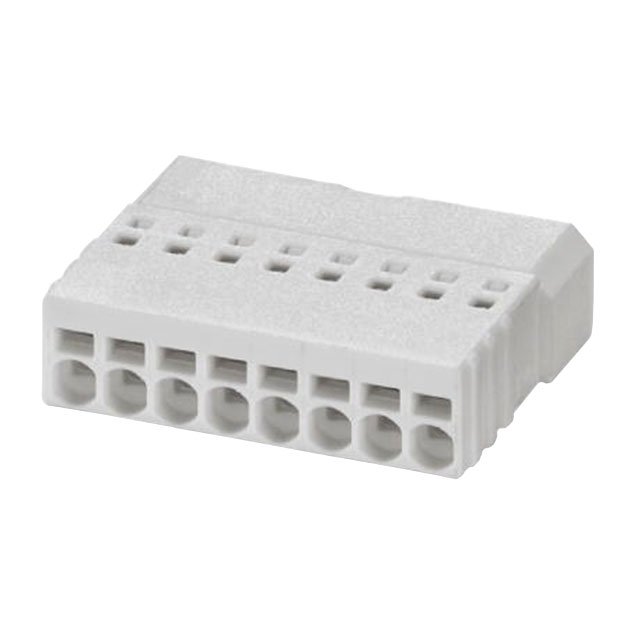

PLUGGABLE TERMINAL BLOCKS PTSM 0,5/8-PI-2,5 WH
| Part | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] | Color | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Current - UL | Contact Mating Finish | Pitch | Pitch | Current - IEC | Voltage - UL | Number of Positions | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Voltage - IEC | Positions Per Level | Number of Levels | Plug Wire Entry | Mounting Type | Termination Style | Housing Material | Wire Termination | Current | Wire Gauge [Min] | Wire Gauge [Max] | Features | Voltage | Mating Orientation | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 0.5 mm˛ | 0.14 mm˛ | White | 0.14 mm² | 0.5 mm² | 5 A | Tin | 2.5 mm | 0.098 in | 6 A | 150 V | 8 | 20 AWG | 26 AWG | 160 V | 8 | 1 | 180 ° | Free Hanging (In-Line) | Push-In Spring Screwless - Leg Spring | |||||||||
 Phoenix Contact | Black | 2.5 mm | 0.098 in | 3 | 1 | Surface Mount | Liquid Crystal Polymer (LCP) | Screwless - Spring Cage Tension Clamp | 5 A | 19.5 AWG | 26 AWG | Solder Retention | 150 V | Vertical with Board | |||||||||||||||

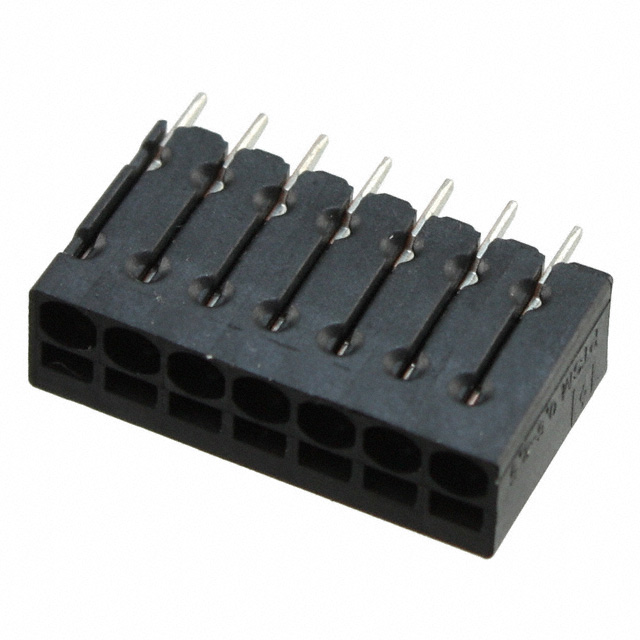

 Phoenix Contact | Black | 2.5 mm | 0.098 in | 1 | Through Hole | Liquid Crystal Polymer (LCP) | Screwless - Spring Cage Tension Clamp | 5 A | 19.5 AWG | 26 AWG | 150 V | Vertical with Board | 7 |
