ECQ-U2 Series

Manufacturer: Panasonic Electronic Components

Catalog

Catalog

CAP FILM 1.2UF 20% 275VAC RADIAL

...

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Tolerance	Package / Case	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Dielectric Material	Applications	Voltage Rating - AC	Termination	Height - Seated (Max) [Max]	Height - Seated (Max)	Lead Spacing	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECQ-U2A125MLA	26.5 mm	1.043 in	27.5 mm	1.083 in	1.2 µF	-40 C	100 °C	Through Hole	20 %	Radial	X2	30.5 mm	0.65 "	1.201 in	16.5 mm	Polyester Metallized	EMI RFI Suppression	275 V	PC Pins
Panasonic Electronic Components ECQ-U2A152KLA			0.492 in		1500 pF	-40 C	100 °C	Through Hole	10 %	Radial	X2	15 mm	0.197 "	0.591 in		Polyester Metallized	EMI RFI Suppression	275 V	PC Pins	0.472 in	12 mm	12.5 mm	5 mm
Panasonic Electronic Components ECQ-U2A473ML			0.492 in			-40 C	100 °C	Through Hole	20 %	Radial	X2	15 mm	0.236 "	0.591 in	6 mm	Polyester Metallized	EMI RFI Suppression	275 V	PC Pins	0.532 "	13.5 mm	12.5 mm

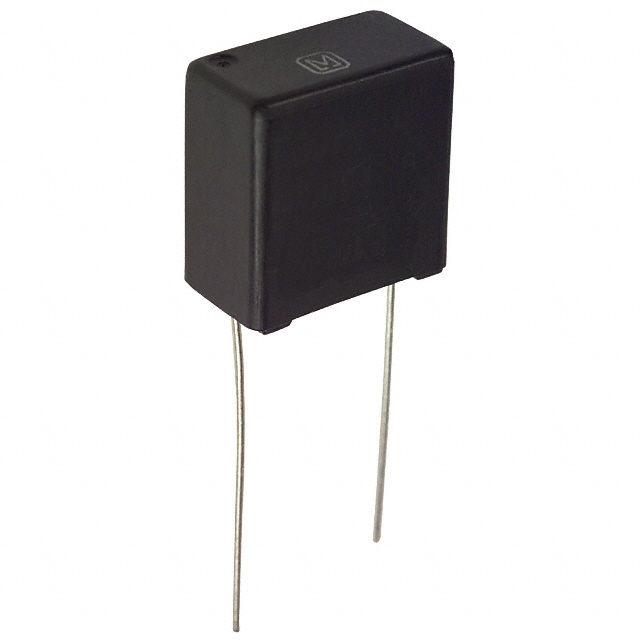

Panasonic Electronic Components ECQ-U2A683MG	0.61 in		0.492 in		0.068 µF	-40 C	100 °C	Through Hole	20 %	Radial	X2					Polyester Metallized	EMI RFI Suppression	275 V	PC Pins			12.5 mm		15.5 mm
Panasonic Electronic Components ECQ-U2A332KLA			0.492 in		0.0033 µF	-40 C	100 °C	Through Hole	10 %	Radial	X2	15 mm	0.197 "	0.591 in		Polyester Metallized	EMI RFI Suppression	275 V	PC Pins	0.472 in	12 mm	12.5 mm	5 mm
Panasonic Electronic Components ECQ-U2A393MLA			0.492 in		0.039 µF	-40 C	100 °C	Through Hole	20 %	Radial	X2	15 mm	0.236 "	0.591 in	6 mm	Polyester Metallized	EMI RFI Suppression	275 V	PC Pins	0.532 "	13.5 mm	12.5 mm
Panasonic Electronic Components ECQ-U2A683MLA			15 mm	0.591 in	0.068 µF	-40 C	100 °C	Through Hole	20 %	Radial	X2	17.5 mm	0.177 "	0.689 in	4.5 mm	Polyester Metallized	EMI RFI Suppression	275 V	PC Pins	0.472 in	12 mm
Panasonic Electronic Components ECQ-U2A562MLA			0.492 in		0.0056 µF	-40 C	100 °C	Through Hole	20 %	Radial	X2	15 mm	0.197 "	0.591 in		Polyester Metallized	EMI RFI Suppression	275 V	PC Pins	0.472 in	12 mm	12.5 mm	5 mm
Panasonic Electronic Components ECQ-U2A153MLA			0.492 in		15000 pF	-40 C	100 °C	Through Hole	20 %	Radial	X2	15 mm	0.197 "	0.591 in		Polyester Metallized	EMI RFI Suppression	275 V	PC Pins	0.472 in	12 mm	12.5 mm	5 mm
Panasonic Electronic Components ECQ-U2A125ML			27.5 mm	1.083 in	1.2 µF	-40 C	100 °C	Through Hole	20 %	Radial	X2	30.5 mm	0.65 "	1.201 in	16.5 mm	Polyester Metallized	EMI RFI Suppression	275 V	PC Pins	1.063 in					27 mm
