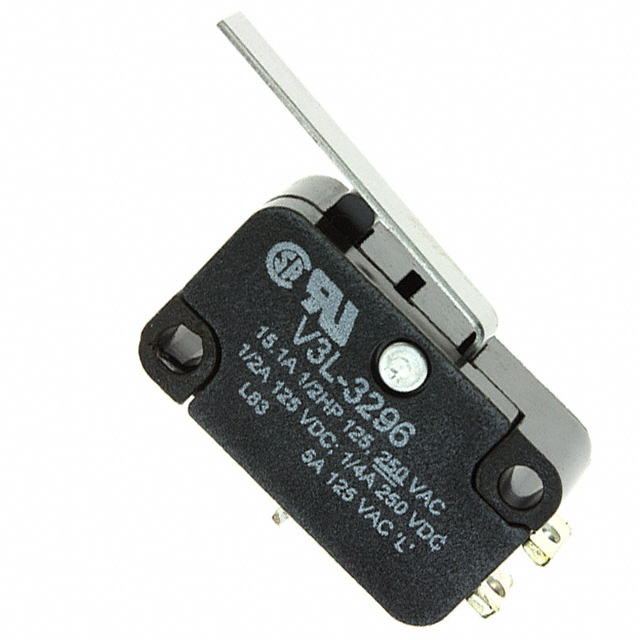

V3L-32 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 15A 125V
| Part | Mounting Type | Circuit | Actuator Type | Switch Function | Pretravel | Pretravel | Current Rating (Amps) | Voltage Rating - AC | Overtravel [custom] | Overtravel [custom] | Termination Style | Release Force | Voltage Rating - DC | Differential Travel | Differential Travel | Operating Position | Operating Position | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Chassis Mount | SPDT | Lever Straight | On-Mom | 0.12 in | 3 mm | 15 A 500 mA | 125 V | 2.3 mm | 0.09 " | Solder Lug | 6 gf | 125 VDC | 0.81 mm | 0.032 in | 0.6 in | 15.2 mm | 88 gf |
