CFS-0302 Series

Catalog

SWITCH SLIDE DIP SPST 0.1A 6V

Part	Mounting Type	Actuator Type	Current Rating (Amps)	Contact Material	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch	Pitch [x]	Height Above Board	Height Above Board	Length [x]	Length	Contact Finish	Voltage Rating	Electrical Life	Body Material	Circuit	Actuator Level
Nidec Components Corporation CFS-0302TA	Surface Mount	Slide (Standard)	100 mA	Copper Alloy	J Lead	85 °C	-40 °C	0.1 in	Full	2.54 mm	0.177 in	4.5 mm	0.356 in	9.04 mm	Gold	6 VDC	1000 Cycles	Polyphenylene Sulfide (PPS)	SPST	Raised

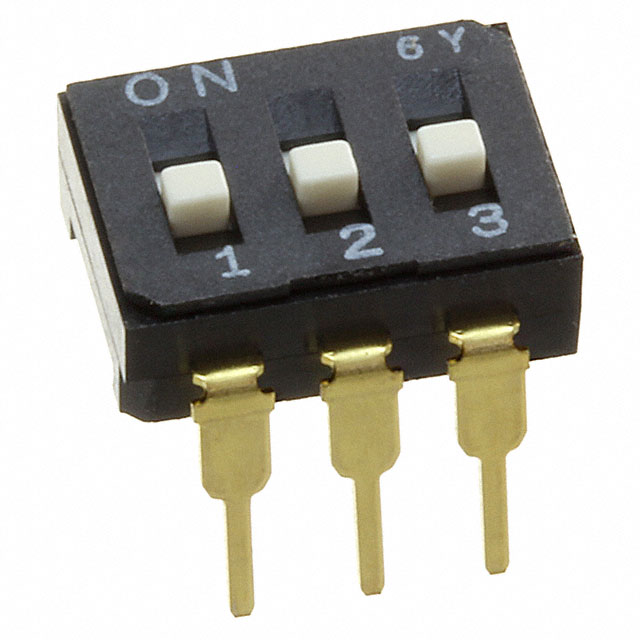

Nidec Components Corporation CFS-0302MC	Through Hole	Slide (Standard)	100 mA	Copper Alloy	PC Pin	85 °C	-40 °C	0.1 in	Full	2.54 mm	0.201 in	5.1 mm	0.356 in	9.04 mm	Gold	6 VDC	1000 Cycles	Polyphenylene Sulfide (PPS)	SPST	Raised

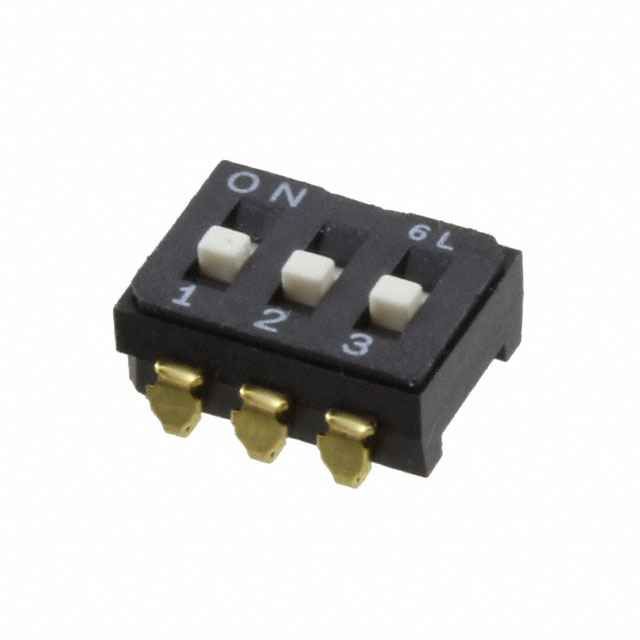

Nidec Components Corporation CFS-0302MA	Surface Mount	Slide (Standard)	100 mA	Copper Alloy	J Lead	85 °C	-40 °C	0.1 in	Full	2.54 mm	0.178 "	4.52 mm	0.356 in	9.04 mm	Gold	6 VDC	1000 Cycles	Polyphenylene Sulfide (PPS)	SPST	Raised
