MAXM15467 Series

4.5V to 42V, 300mA Himalaya uSLIC Step-Down Power Module

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

4.5V to 42V, 300mA Himalaya uSLIC Step-Down Power Module

Part	Mounting Type	Features	Current - Output (Max) [Max]	Type	Supplier Device Package	Number of Outputs	Voltage - Input (Max) [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Min) [Min]	Board Type	Outputs and Type	Outputs and Type	Supplied Contents	Frequency - Switching	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output	Voltage - Output	Regulator Topology	Utilized IC / Part	Contents
Analog Devices Inc./Maxim Integrated MAXM15467AMB+T	Surface Mount	OCP OTP UVLO	0.3 A	Non-Isolated PoL Module	10-eMGA (3x2.6)	1	42 V	10-SMD Module	0.12 inches	2.6 mm	0.06 "	0.1 in	1.5 mm	3 mm	ITE (Commercial)	125 °C	-40 C	0.9 V	6.3 V	4.5 V

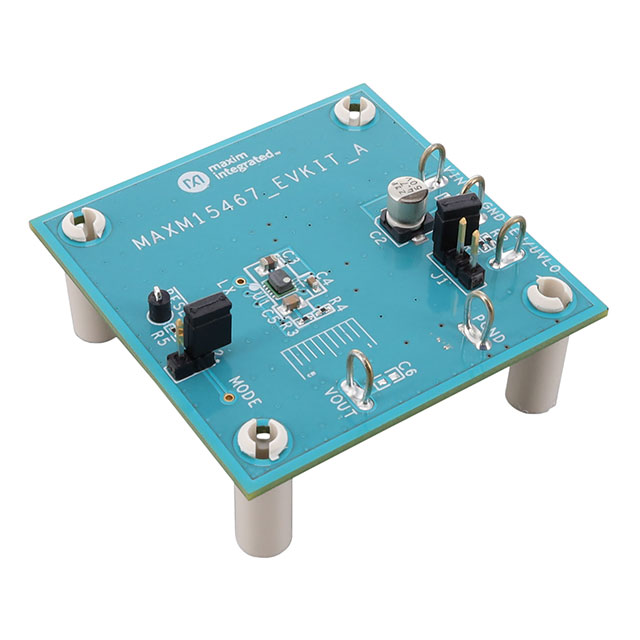

Analog Devices Inc./Maxim Integrated MAXM15467EVKIT#																					Fully Populated	1	1 Non-Isolated Output Non-Isolated	Board(s)	550 kHz	DC/DC Step Down	4.5 V	36 V	300 mA	2.5 V	Buck	MAXM15467	Board(s)
Analog Devices Inc./Maxim Integrated MAXM15467AMB+	Surface Mount	OCP OTP UVLO	0.3 A	Non-Isolated PoL Module	10-eMGA (3x2.6)	1	42 V	10-SMD Module	0.12 inches	2.6 mm	0.06 "	0.1 in	1.5 mm	3 mm	ITE (Commercial)	125 °C	-40 C	0.9 V	6.3 V	4.5 V

Catalog

4.5V to 42V, 300mA Himalaya uSLIC Step-Down Power Module

Description

The Himalaya series of voltage regulator ICs and power modules enable cooler, smaller, and simpler power-supply solutions. The MAXM15465/MAXM15466/MAXM15467 are a family of high-efficiency, synchronous step-down DC-DC modules with integrated controller, MOSFETs, compensation components, and inductor that operate over a wide input-voltage range. The modules operate from 4.5V to 42V input and deliver up to 300mA output current. The MAXM15465 and MAXM15466 are fixed 3.3V and 5V output modules respectively. The MAXM15467 is an adjustable output (0.9V to 6.3V) module. The modules significantly reduce design complexity, manufacturing risks, and offer a true plug and play power/supply solution, reducing time-to-market.The MAXM15465/6/7 modules employ peak-currentmode control architecture. To reduce input inrush current, the modules offer a fixed 3.75ms soft-start time.The MAXM15465/6/7 modules are available in a low profile, compact 10-pin, 2.6mm x 3mm x 1.5mm, uSLICTMpackage.Applications4-20mA Current-Loop Powered SensorsBattery-Powered EquipmentGeneral Purpose Point-of-LoadHVAC and Building ControlIndustrial Sensors and EncodersLDO ReplacementUSB Type-C Powered Loads
