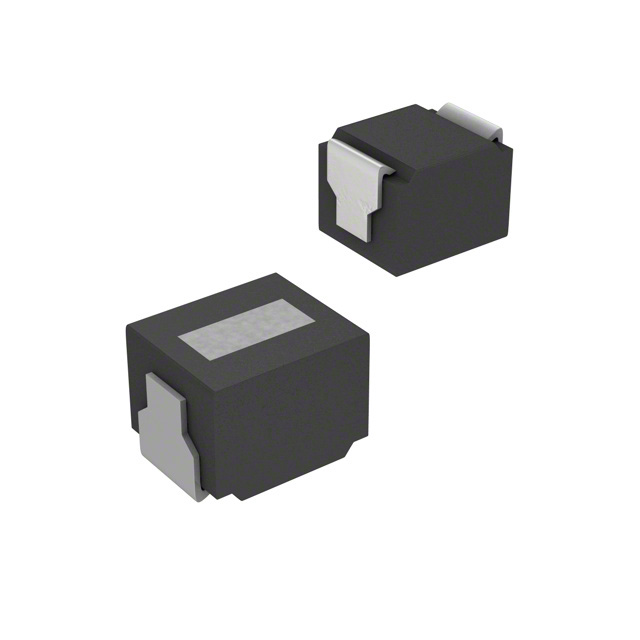

CM322522 Series

Catalog

FIXED IND 1.5UH 210MA 750MOHM SM

Part	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Inductance	Material - Core	Package / Case	Tolerance	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Current Rating (Amps)	Q @ Freq	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. CM322522-1R5JL	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount	1.5 µH	Ferrite	Nonstandard	5 %	750 mOhm	90 MHz	0.087 in	2.2 mm	Unshielded	0.21 A	7.96 MHz 30	7.96 MHz	125 °C	-40 C
Bourns Inc. CM322522-151JL	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount	150 µH	Ferrite	Nonstandard	5 %	15 Ohm	8 MHz	0.087 in	2.2 mm	Unshielded	50 mA		0.796 MHz	125 °C	-40 C	20	796 kHz
Bourns Inc. CM322522-5R6JL	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount	5.6 µH	Ferrite	Nonstandard	5 %	1.6 Ohm	50 MHz	0.087 in	2.2 mm	Unshielded	160 mA	7.96 MHz 30	7.96 MHz	125 °C	-40 C
Bourns Inc. CM322522-R82KL	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount	820 nH	Ferrite	Nonstandard	10 %	610 mOhm	125 MHz	0.087 in	2.2 mm	Unshielded	0.245 A		25.2 MHz	125 °C	-40 C	25		25.2 MHz
Bourns Inc. CM322522-R10ML	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount	100 nH	Ferrite	Nonstandard	20 %	300 mOhm	450 MHz	0.087 in	2.2 mm	Unshielded	360 mA	10 100 MHz	100 MHz	125 °C	-40 C
Bourns Inc. CM322522-151KL	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount	150 µH	Ferrite	Nonstandard	10 %	15 Ohm	8 MHz	0.087 in	2.2 mm	Unshielded	50 mA		0.796 MHz	125 °C	-40 C	20	796 kHz
Bourns Inc. CM322522-820JL	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount	82 µH	Ferrite	Nonstandard	5 %	10 Ohm	11 MHz	0.087 in	2.2 mm	Unshielded	60 mA	2.52 MHz 30	2.52 MHz	125 °C	-40 C
Bourns Inc. CM322522-560JL	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount	56 µH	Ferrite	Nonstandard	5 %	8 Ohm	15 MHz	0.087 in	2.2 mm	Unshielded	70 mA	2.52 MHz 30	2.52 MHz	125 °C	-40 C
Bourns Inc. CM322522-180JL	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount	18 µH	Ferrite	Nonstandard	5 %	3.3 Ohm	27 MHz	0.087 in	2.2 mm	Unshielded	110 mA	2.52 MHz 30	2.52 MHz	125 °C	-40 C
Bourns Inc. CM322522-R18ML	Drum Core Wirewound	2.5 mm	0.098 in	3.2 mm	0.126 "	Surface Mount	180 nH	Ferrite	Nonstandard	20 %	810 mOhm	320 MHz	0.087 in	2.2 mm	Unshielded	0.22 A	10 25.2 MHz	25.2 MHz	125 °C	-40 C
