M30-110 Series

Catalog

WIRE-TO-BOARD CONNECTOR, M30-1 SERIES, CRIMP, RECEPTACLE, 8, 1.25 MM ROHS COMPLIANT: YES

Part	Note	Number of Rows	Pitch	Pitch	Contact Termination	Connector Type	Mounting Type	Number of Positions	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Insulation Material
Harwin Inc. M30-1100800	Contacts Not Included	1	0.049 in	1.25 mm	Crimp	Receptacle	Free Hanging (In-Line)	8	Natural	85 °C	-25 °C	Female Socket	Nylon 6/6 Polyamide (PA66)
Harwin Inc. M30-1100700	Contacts Not Included	1	0.049 in	1.25 mm	Crimp	Receptacle	Free Hanging (In-Line)	7	Natural	85 °C	-25 °C	Female Socket	Nylon 6/6 Polyamide (PA66)

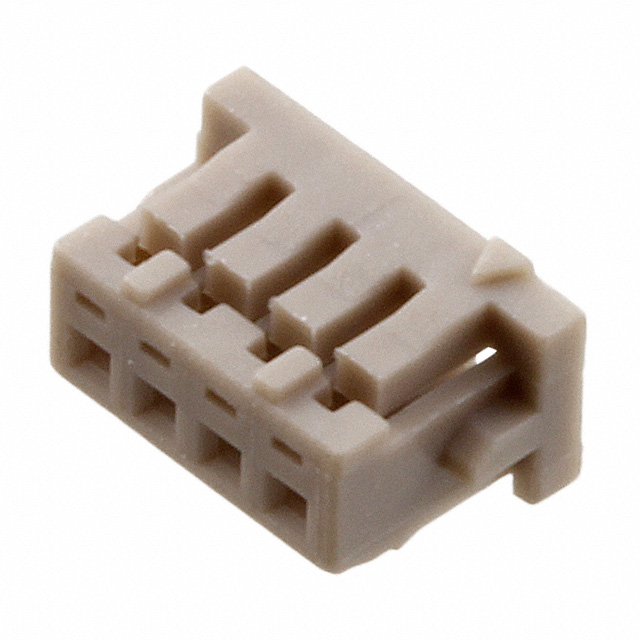

Harwin Inc. M30-1100400	Contacts Not Included	1	0.049 in	1.25 mm	Crimp	Receptacle	Free Hanging (In-Line)	4	Natural	85 °C	-25 °C	Female Socket	Nylon 6/6 Polyamide (PA66)

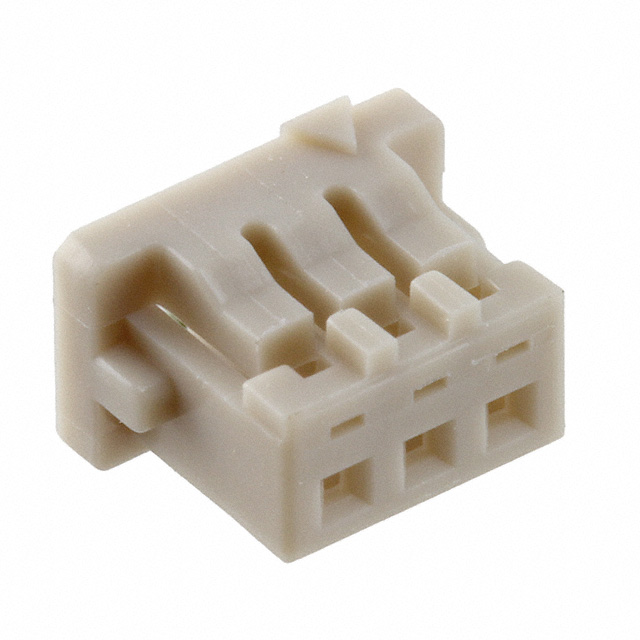

Harwin Inc. M30-1100300	Contacts Not Included	1	0.049 in	1.25 mm	Crimp	Receptacle	Free Hanging (In-Line)		Natural	85 °C	-25 °C	Female Socket	Nylon 6/6 Polyamide (PA66)
Harwin Inc. M30-1101200	Contacts Not Included	1	0.049 in	1.25 mm	Crimp	Receptacle	Free Hanging (In-Line)	12	Natural	85 °C	-25 °C	Female Socket	Nylon 6/6 Polyamide (PA66)
Harwin Inc. M30-1100900	Contacts Not Included	1	0.049 in	1.25 mm	Crimp	Receptacle	Free Hanging (In-Line)	9	Natural	85 °C	-25 °C	Female Socket	Nylon 6/6 Polyamide (PA66)
Harwin Inc. M30-1100500	Contacts Not Included	1	0.049 in	1.25 mm	Crimp	Receptacle	Free Hanging (In-Line)	5	Natural	85 °C	-25 °C	Female Socket	Nylon 6/6 Polyamide (PA66)

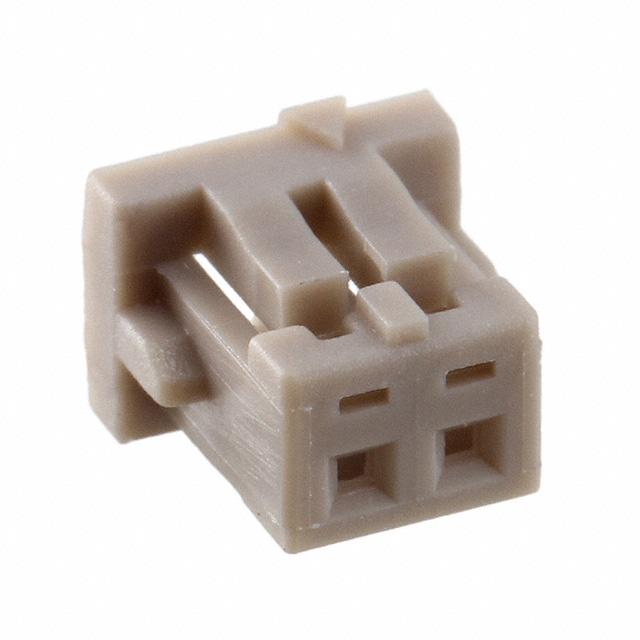

Harwin Inc. M30-1100200	Contacts Not Included	1	0.049 in	1.25 mm	Crimp	Receptacle	Free Hanging (In-Line)	2	Natural	85 °C	-25 °C	Female Socket	Nylon 6/6 Polyamide (PA66)
