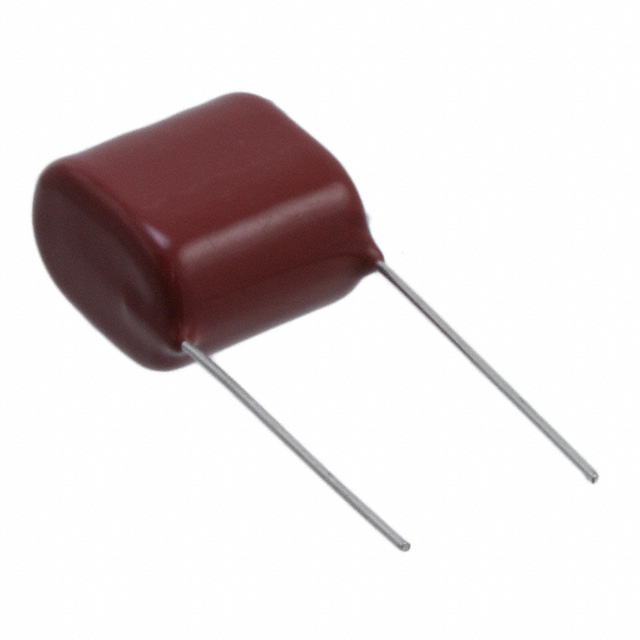

ECW-H Series

Manufacturer: Panasonic Electronic Components

Catalog

Catalog

CAP FILM 6200PF 3% 1KVDC RADIAL

...

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Applications	Voltage Rating - DC	Voltage Rating - DC	Capacitance	Lead Spacing	Lead Spacing	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Dielectric Material	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - AC	Size / Dimension [y]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
Panasonic Electronic Components ECW-H10622HV	Radial	-40 C	105 ░C	PC Pins	High Frequency Switching	1 kV	1 kVDC	6200 pF	15 mm	0.591 in	3 %	15 mm	0.591 "	Through Hole	18 mm	0.256 "	0.709 in	6.5 mm	Polypropylene (PP) Metallized
Panasonic Electronic Components ECW-H10682HVB	Radial	-40 C	105 ░C	PC Pins	High Frequency Switching	1 kV	1 kVDC	6800 pF	10 mm	0.394 in	3 %			Through Hole	18 mm			7 mm	Polypropylene (PP) Metallized	0.276 "	0.709 in	18.5 mm	0.728 in
Panasonic Electronic Components ECW-H12472JV	Radial	-40 C	105 ░C	PC Pins	High Frequency Switching	1.25 kV	1250 V	0.0047 µF	15 mm	0.591 in	5 %			Through Hole	18 mm	0.236 "	0.709 in	6 mm	Polypropylene (PP) Metallized			14.5 mm	0.571 "	354 V
Panasonic Electronic Components ECW-H6304HCC	Radial	-40 C	105 ░C	PC Pins	General Purpose			0.3 µF	17.5 mm	0.689 in	3 %			Through Hole	20.7 mm	0.583 "	0.815 in	14.8 mm	Polypropylene (PP) Metallized			21.1 mm	0.831 in	223 V
Panasonic Electronic Components ECW-H10392JV	Radial	-40 C	105 ░C	PC Pins	High Frequency Switching	1 kV	1 kVDC	3900 pF	15 mm	0.591 in	5 %			Through Hole	18 mm	0.236 "	0.709 in	6 mm	Polypropylene (PP) Metallized			14 mm	0.551 in
Panasonic Electronic Components ECW-H16272RJV	Radial	-40 C	105 ░C	PC Pins	High Frequency Switching	1.6 kV	1600 V	2700 pF	7.5 mm	0.295 in	5 %	19 mm	0.748 in	Through Hole	18 mm			7 mm	Polypropylene (PP) Metallized	0.276 "	0.709 in
Panasonic Electronic Components ECW-H10303RHV	Radial	-40 C	105 ░C	PC Pins	High Frequency Switching	1 kV	1 kVDC	0.03 µF	7.5 mm	0.295 in	3 %			Through Hole	18 mm	0.374 in	0.709 in	9.5 mm	Polypropylene (PP) Metallized			21.5 mm	0.846 "
Panasonic Electronic Components ECW-H16912HVB	Radial	-40 C	105 ░C	PC Pins	High Frequency Switching	1.6 kV	1600 V	9100 pF	15 mm	0.591 in	3 %		0.827 "	Through Hole	23 mm	0.315 in	0.906 in		Polypropylene (PP) Metallized			21 mm			8 mm
Panasonic Electronic Components ECW-H10113RHV	Radial	-40 C	105 ░C	PC Pins	High Frequency Switching	1 kV	1 kVDC	0.011 µF	7.5 mm	0.295 in	3 %			Through Hole	18 mm	0.256 "	0.709 in	6.5 mm	Polypropylene (PP) Metallized			18.5 mm	0.728 in
Panasonic Electronic Components ECW-H16123JVB	Radial	-40 C	105 ░C	PC Pins	High Frequency Switching	1.6 kV	1600 V	0.012 µF	15 mm	0.591 in	5 %			Through Hole	23 mm	0.354 in	0.906 in	9 mm	Polypropylene (PP) Metallized							0.866 in	22 mm
