HM1F51 Series

Catalog

METRAL T 5RX1M RA REC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Material Flammability Rating	Voltage Rating	Features	Mounting Type	Connector Style	Number of Rows	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Termination	Pitch [x]	Pitch [x]	Number of Positions Loaded	Color
Amphenol ICC (FCI) HM1F51TAR000H6	-55 C	85 °C	1.5 A	UL94 V-0	1000 VDC	Board Guide Spacer	Board Edge Right Angle Through Hole	High Speed	5	Gold	29.5 µin	0.75 µm	30	Receptacle Female Sockets	Solder	0.079 in	2 mm	All	Natural
Amphenol ICC (FCI) HM1F51TAR000H6LF	-55 C	85 °C	1.5 A	UL94 V-0	1000 VDC	Board Guide Spacer	Board Edge Right Angle Through Hole	High Speed	5	Gold	29.5 µin	0.75 µm	30	Receptacle Female Sockets	Solder	0.079 in	2 mm	All	Natural
Amphenol ICC (FCI) HM1F51TBP000H6	-55 C	85 °C		UL94 V-0	1000 VDC	Board Guide Spacer	Board Edge Right Angle Through Hole	High Speed	5	Gold	29.5 µin	0.75 µm	30	Receptacle Female Sockets	Solder	0.079 in	2 mm	All	Natural

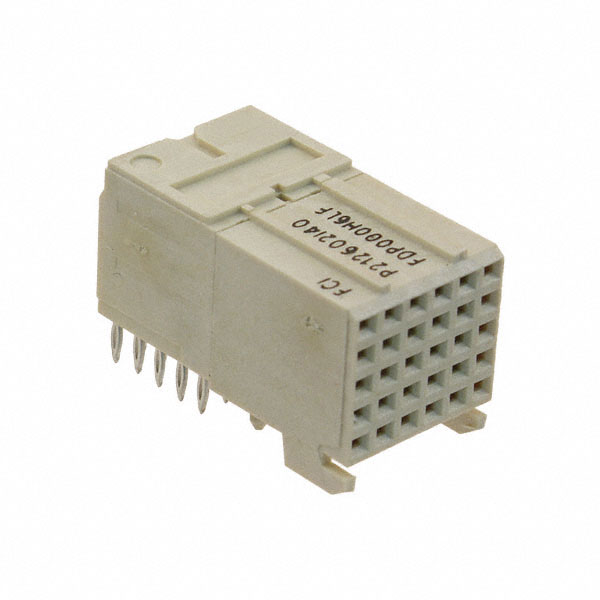

Amphenol ICC (FCI) HM1F51FDP000H6PLF	-55 C	105 ░C		UL94 V-0	1000 VDC	Board Guide Spacer	Board Edge Right Angle Through Hole		5	Gold			30	Receptacle Female Sockets	Press-Fit	0.079 in	2 mm	All	Natural

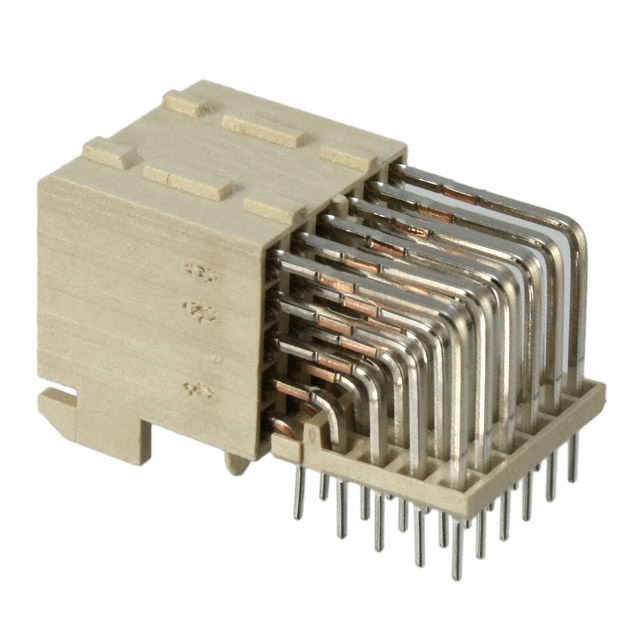

Amphenol ICC (FCI) HM1F51TAP000H6LF	-55 C	85 °C		UL94 V-0	1000 VDC	Board Guide Spacer	Board Edge Right Angle Through Hole		5	Gold	29.5 µin	0.75 µm	30	Receptacle Female Sockets	Solder	0.079 in	2 mm	All	Natural
Amphenol ICC (FCI) HM1F51TAP000H6PLF				UL94 V-0		Board Guide Spacer	Board Edge Right Angle Through Hole		5				30	Receptacle Female Sockets	Solder	0.079 in	2 mm	All	Natural
Amphenol ICC (FCI) HM1F51FDP000H6LF				UL94 V-0		Board Guide Spacer	Board Edge Right Angle Through Hole		5	Gold	30 Áin	0.76 Ám	30	Receptacle Female Sockets	Press-Fit	0.079 in	2 mm	All	Natural
