NHD-0440 Series

Catalog

LCD MOD 160DIG 40X4 TRAN YLW/GRN

Part	Interface	Outline L x W x H [z]	Outline L x W x H [x]	Outline L x W x H [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Display Type	Background Color	Display Format [y]	Display Format [x]	Display Mode	Character Format [x]	Character Format [y]	Operating Temperature [Min]	Operating Temperature [Max]	Character Size [y]	Character Size [z]	Dot Size [custom]	Dot Size [custom]	Viewing Area [y]	Viewing Area [x]	Number of Characters	Text Color	Controller Type	Backlight
Newhaven Display Intl NHD-0440AZ-FL-GBW	Parallel	9.5 mm	190 mm	54 mm	5.5 V	2.7 V	STN - Super-Twisted Nematic	Green	4	40	Transflective	5 Dots	8 Dots	-20 ░C	70 °C	2.78 mm	4.89 mm	0.5 mm	0.55 mm	29.5 mm	147 mm	160	Gray

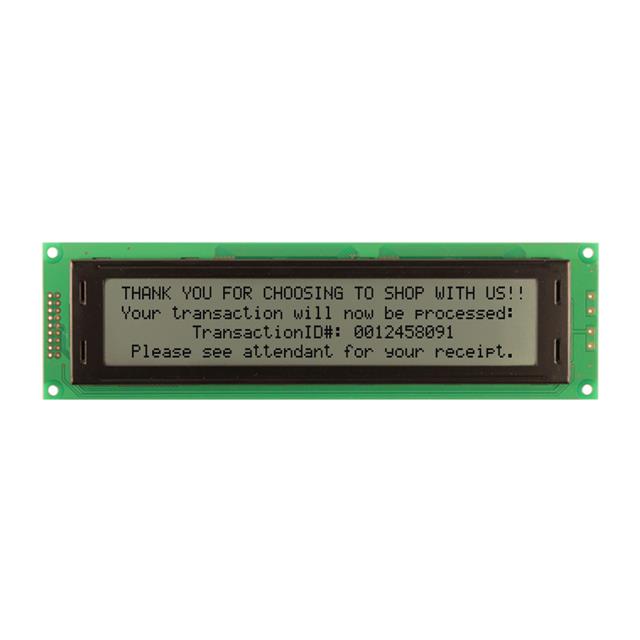

Newhaven Display Intl NHD-0440AZ-RN-FBW	Parallel	9.5 mm	190 mm	54 mm	5.5 V	4.7 V	FSTN - Film Super-Twisted Nematic	Gray	4	40	Reflective	5 Dots	8 Dots	-20 ░C	70 °C	2.78 mm	4.89 mm	0.5 mm	0.55 mm	29.5 mm	147 mm	160	Black	ST7066-0A

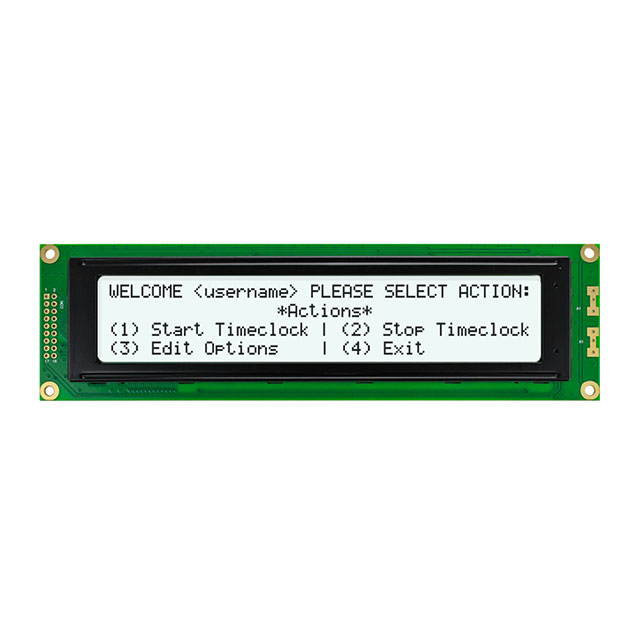

Newhaven Display Intl NHD-0440WH-ATFH-JT#	Parallel	13.6 mm	190 mm	54 mm	5.25 V	4.75 V	FSTN - Film Super-Twisted Nematic	White	4	40	Transflective	5 Dots	8 Dots	-20 ░C	70 °C	2.78 mm	4.89 mm	0.5 mm	0.55 mm	29.5 mm	147 mm	160	Black	ST7066-0A	LED - White

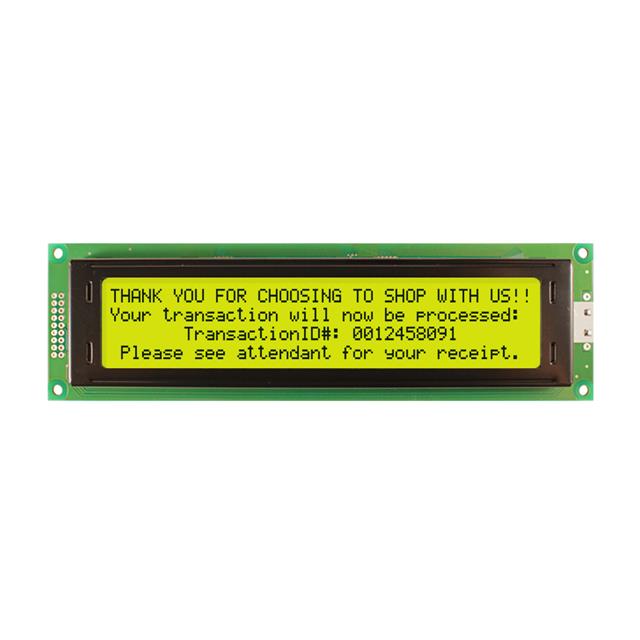

Newhaven Display Intl NHD-0440AZ-FL-YBW	Parallel	13 mm	190 mm	54 mm	5.5 V	4.7 V	STN - Super-Twisted Nematic	Green	4	40	Transflective	5 Dots	8 Dots	-20 ░C	70 °C	2.78 mm	4.89 mm	0.5 mm	0.55 mm	29.5 mm	147 mm	160	Blue	ST7066-0A

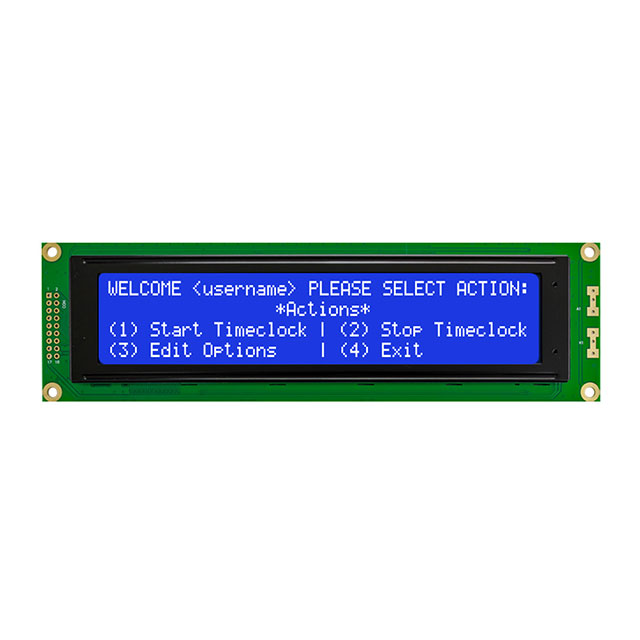

Newhaven Display Intl NHD-0440WH-ATMI-JT#	Parallel	13.6 mm	190 mm	54 mm	5.25 V	4.75 V	STN - Super-Twisted Nematic	Blue	4	40	Transmissive	5 Dots	8 Dots	-20 ░C	70 °C	2.78 mm	4.89 mm	0.5 mm	0.55 mm	29.5 mm	147 mm	160	White	ST7066-0A	LED - White
