YB26WS Series

Catalog

SWITCH PUSHBUTTON DPDT 3A 125V

Part	Electrical Life	Mechanical Life	Circuit	Termination Style	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Switch Function	Ingress Protection	Actuator Type	Current Rating (Amps)	Type	Illumination Type, Color	Mounting Type	Voltage Rating - DC	Voltage Rating - AC	Actuator Marking	Color - Actuator/Cap
NKK Switches YB26WSKW01-1F05-JB	100000 Cycles	200000 Cycles	DPDT	Solder Quick Connect - 0.110" (2.8mm)	5 VDC	16 mm	50 °C	-25 °C	Voltage Reduction Lighting	On-On	IP65 - Dust Tight Water Resistant	Button Square	3 A	Illuminated Standard	Green LED	Panel Mount Front	30 V	125 V	No Marking	Clear
NKK Switches YB26WSKW01-1D24-JE	100000 Cycles	200000 Cycles	DPDT	Solder Quick Connect - 0.110" (2.8mm)	24 V	16 mm	50 °C	-25 °C	Voltage Reduction Lighting	On-On	IP65 - Dust Tight Water Resistant	Button Square	3 A	Illuminated Standard	Amber LED	Panel Mount Front	30 V	125 V	No Marking	Clear

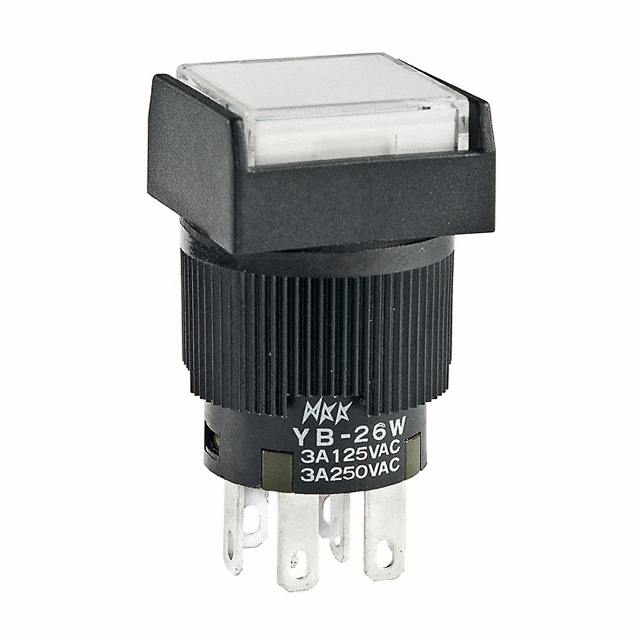

NKK Switches YB26WSKW01-6F-JB	100000 Cycles	200000 Cycles	DPDT	Solder Quick Connect - 0.110" (2.8mm)	3.3 VDC	16 mm	50 °C	-25 °C	Voltage Reduction Lighting	On-On	IP65 - Dust Tight Water Resistant	Button Square	3 A	Illuminated Standard	Green LED	Panel Mount Front	30 V	125 V	No Marking	Clear

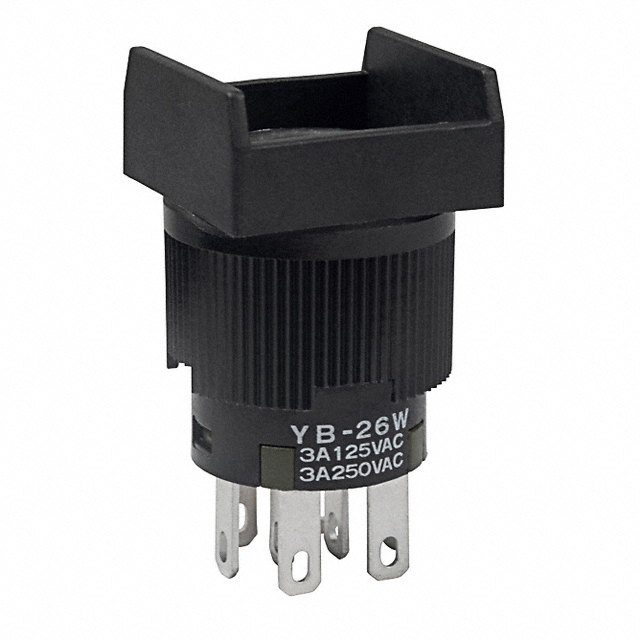

NKK Switches YB26WSKW01	100000 Cycles	200000 Cycles	DPDT	Solder Quick Connect - 0.110" (2.8mm)		16 mm	70 °C	-25 °C	Voltage Reduction Lighting	On-On	IP65 - Dust Tight Water Resistant	Plunger for Cap	3 A	Standard		Panel Mount Front	30 V	125 V	No Marking

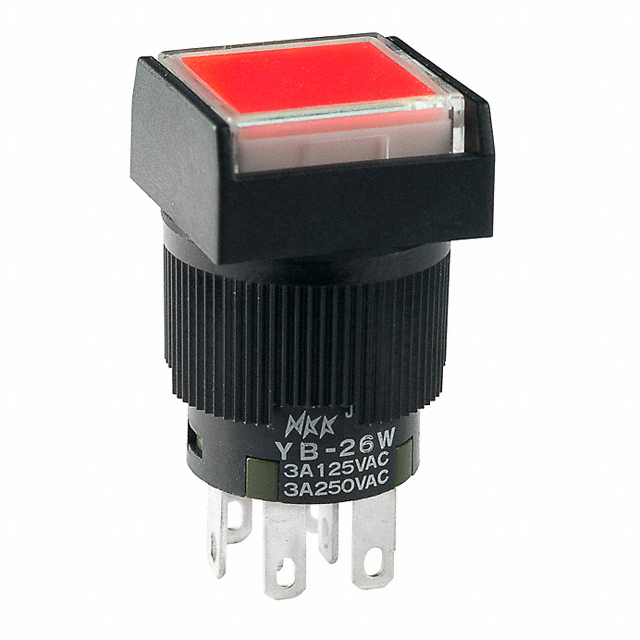

NKK Switches YB26WSKW01-5C-JC	100000 Cycles	200000 Cycles	DPDT	Solder Quick Connect - 0.110" (2.8mm)	1.9 VDC	16 mm	50 °C	-25 °C	Voltage Reduction Lighting	On-On	IP65 - Dust Tight Water Resistant	Button Square	3 A	Illuminated Standard	LED Red	Panel Mount Front	30 V	125 V	No Marking	Clear
NKK Switches YB26WSKW01-1E24-JA	100000 Cycles	200000 Cycles	DPDT	Solder Quick Connect - 0.110" (2.8mm)	24 V	16 mm	50 °C	-25 °C	Voltage Reduction Lighting	On-On	IP65 - Dust Tight Water Resistant	Button Square	3 A	Illuminated Standard	LED Yellow	Panel Mount Front	30 V	125 V	No Marking	Clear
NKK Switches YB26WSKG01-2CF12-JB	100000 Cycles	200000 Cycles	DPDT	Solder Quick Connect - 0.110" (2.8mm)	12 VDC	16 mm	50 °C	-25 °C	Voltage Reduction Lighting	On-On	IP65 - Dust Tight Water Resistant	Button Square	0.4 VA	Illuminated Standard	Green/Red LED	Panel Mount Front	28 V	28 V	No Marking	Clear
NKK Switches YB26WSKW01-1C05-JB	100000 Cycles	200000 Cycles	DPDT	Solder Quick Connect - 0.110" (2.8mm)	5 VDC	16 mm	50 °C	-25 °C	Voltage Reduction Lighting	On-On	IP65 - Dust Tight Water Resistant	Button Square	3 A	Illuminated Standard	LED Red	Panel Mount Front	30 V	125 V	No Marking	Clear
NKK Switches YB26WSKW01-1F24-JA	100000 Cycles	200000 Cycles	DPDT	Solder Quick Connect - 0.110" (2.8mm)	24 V	16 mm	50 °C	-25 °C	Voltage Reduction Lighting	On-On	IP65 - Dust Tight Water Resistant	Button Square	3 A	Illuminated Standard	Green LED	Panel Mount Front	30 V	125 V	No Marking	Clear

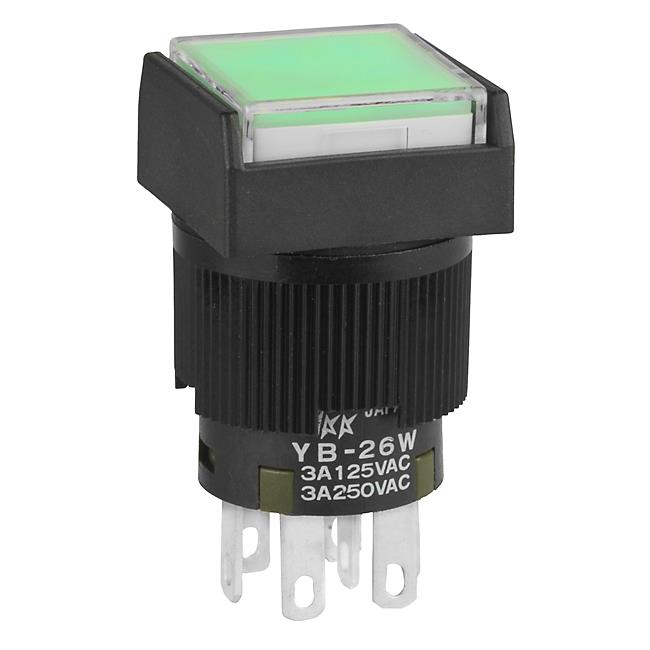

NKK Switches YB26WSKW01-5F-JF	100000 Cycles	200000 Cycles	DPDT	Solder Quick Connect - 0.110" (2.8mm)	2.2 VDC	16 mm	50 °C	-25 °C	Voltage Reduction Lighting	On-On	IP65 - Dust Tight Water Resistant	Button Square	3 A	Illuminated Standard	Green LED	Panel Mount Front	30 V	125 V	No Marking	Clear
