Schaffner FN3100 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

LINE FILTER 230A CHASSIS MOUNT

Part	Frequency - Operating	Applications	Current	Approval Agency	Termination Style	Mounting Type	Voltage - Rated AC (Phase to Ground/Neutral)	Voltage - Rated AC (Phase to Phase)	Operating Temperature [Max]	Operating Temperature [Min]	Configuration	Filter Type

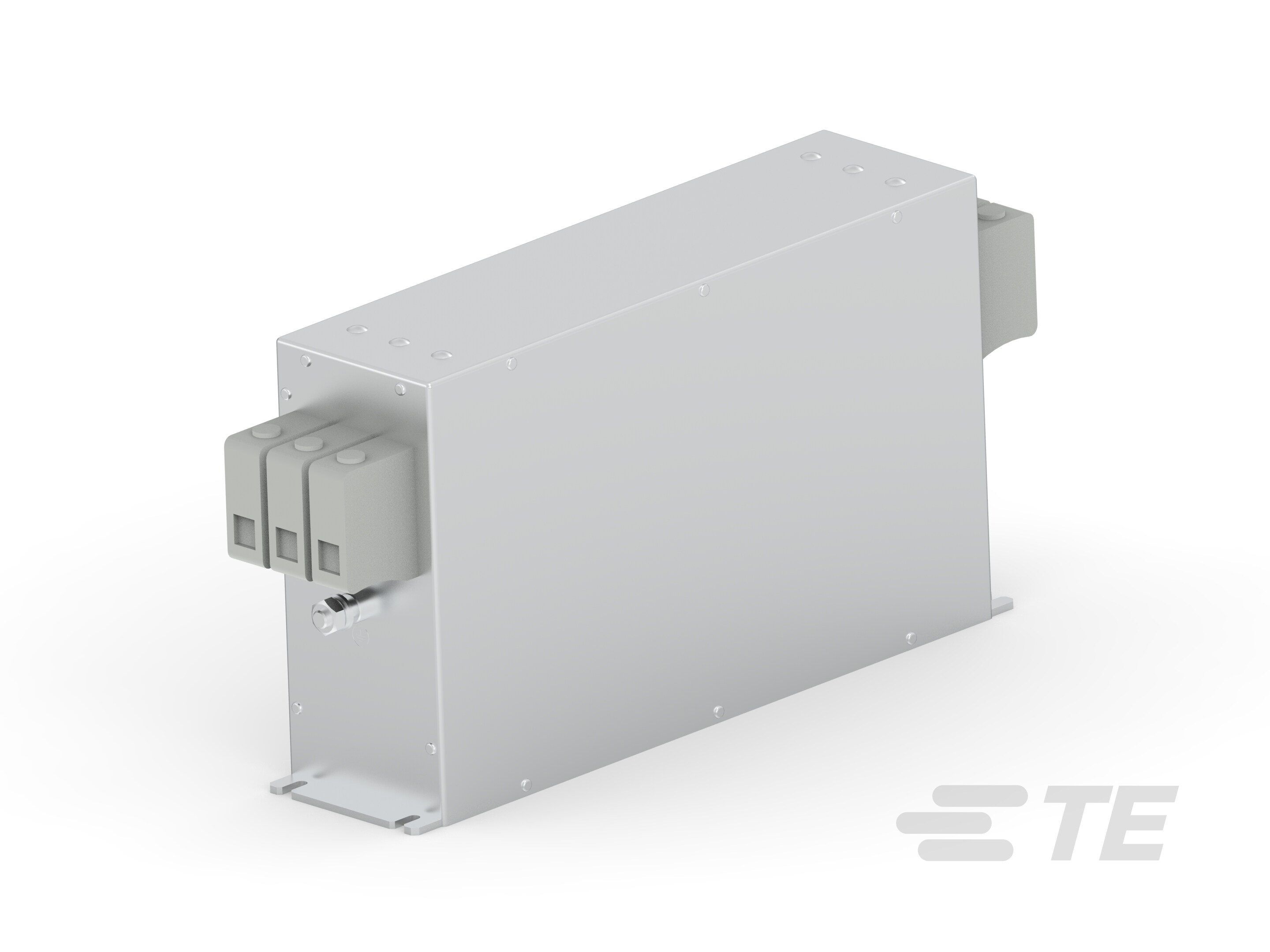

TE Connectivity AMP Connectors FN3100-230-40	60 Hz	Regenerative Motor Drive	230 A	CSA SEMKO UR	Terminal Block	Chassis Mount	300 V	520 V	100 °C	-25 °C	Single Stage	Three Phase (Delta)

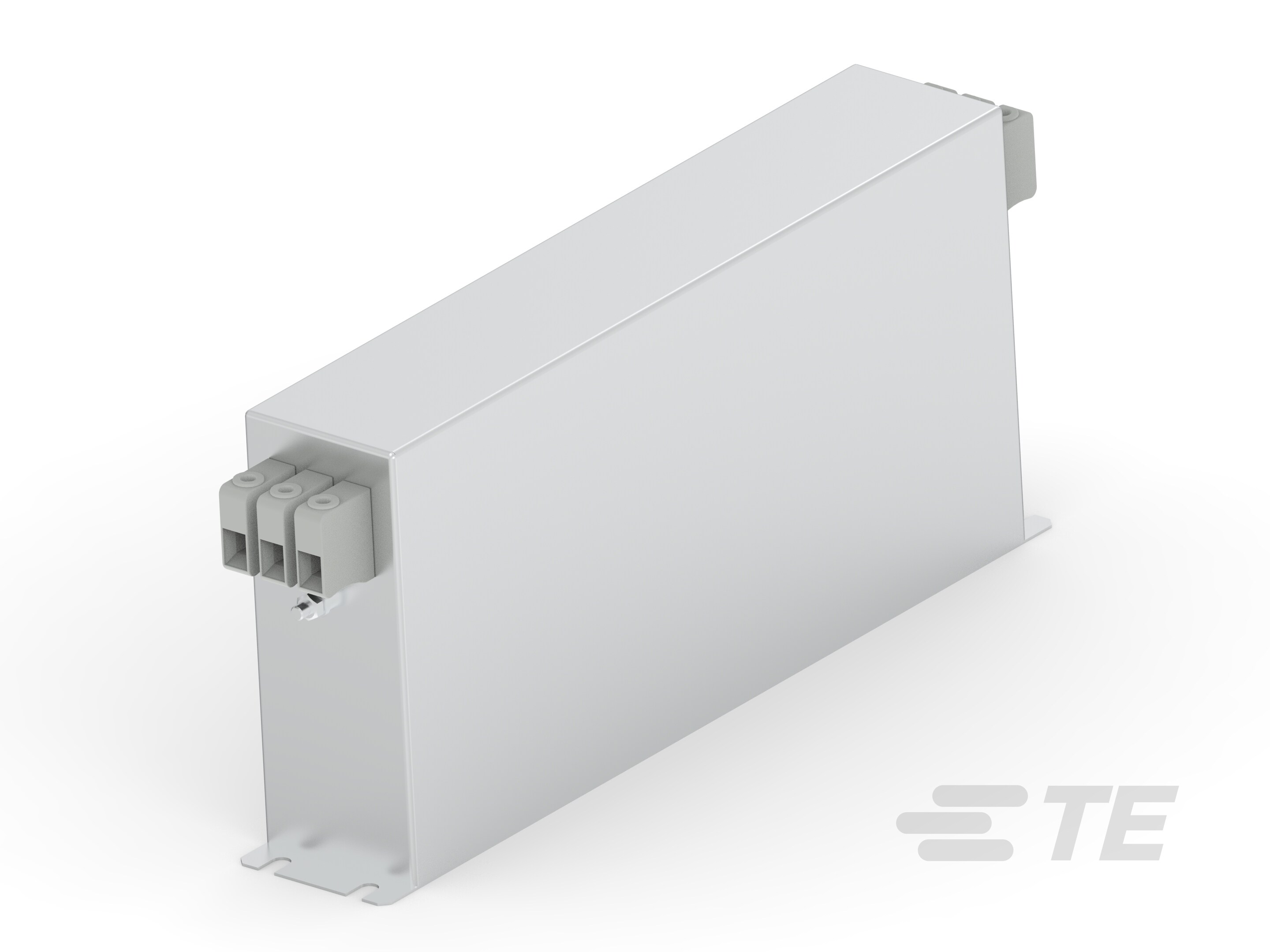

TE Connectivity AMP Connectors FN3100-35-33	60 Hz	Regenerative Motor Drive		CSA SEMKO UR	Terminal Block	Chassis Mount	300 V	520 V	100 °C	-25 °C	Single Stage	Three Phase (Delta)

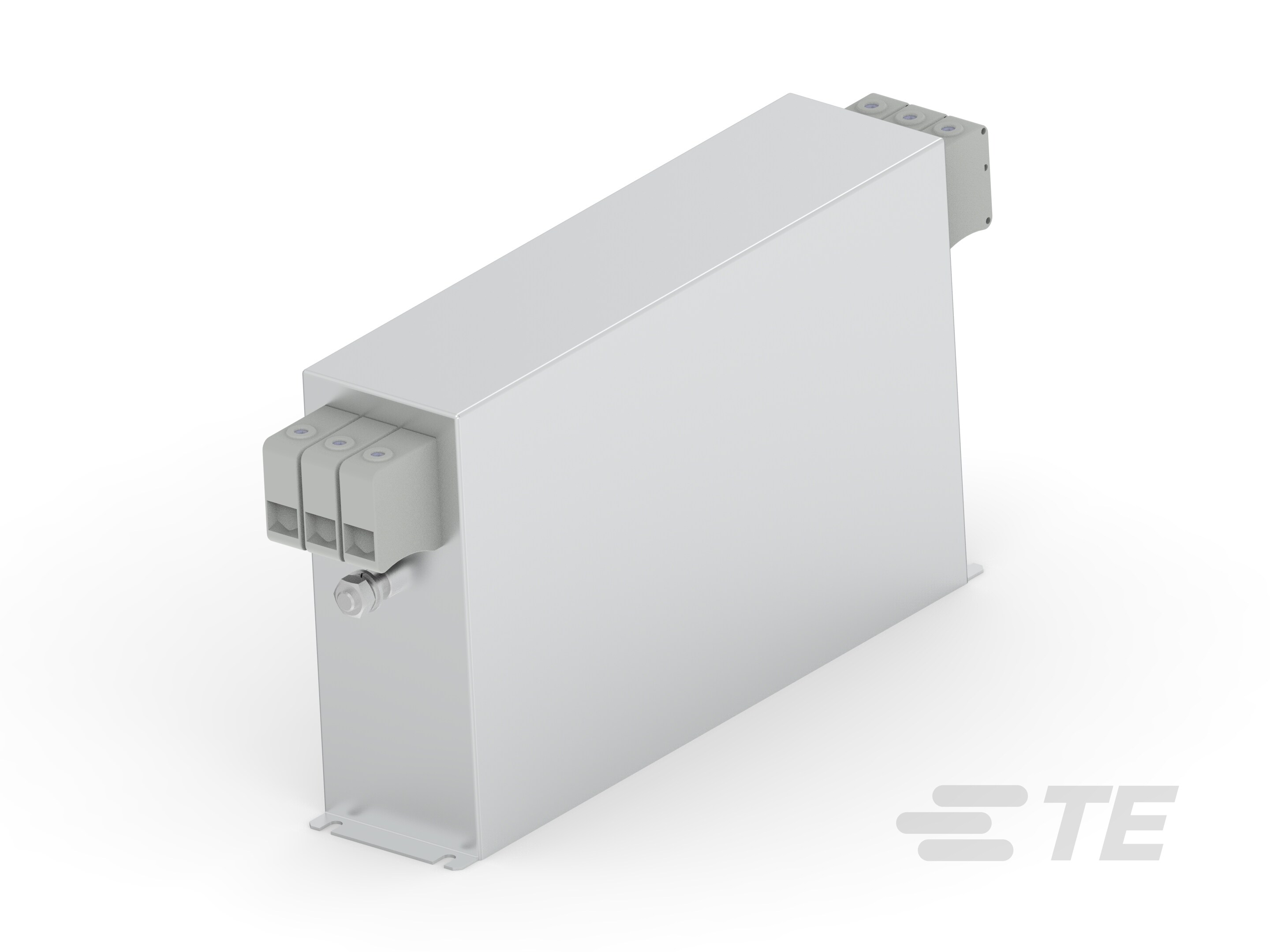

TE Connectivity AMP Connectors FN3100-110-35	60 Hz	Regenerative Motor Drive	110 A	CSA SEMKO UR	Terminal Block	Chassis Mount	300 V	520 V	100 °C	-25 °C	Single Stage	Three Phase (Delta)
TE Connectivity AMP Connectors FN3100-80-56	60 Hz	Regenerative Motor Drive	80 A	CSA SEMKO UR	Terminal Block	Chassis Mount	300 V	520 V	100 °C	-25 °C	Single Stage	Three Phase (Delta)
TE Connectivity AMP Connectors FN3100-230-40	60 Hz	Regenerative Motor Drive	230 A	CSA SEMKO UR	Terminal Block	Chassis Mount	300 V	520 V	100 °C	-25 °C	Single Stage	Three Phase (Delta)
TE Connectivity AMP Connectors FN3100-110-56	60 Hz	Regenerative Motor Drive	110 A	CSA SEMKO UR	Terminal Block	Chassis Mount	300 V	520 V	100 °C	-25 °C	Single Stage	Three Phase (Delta)
TE Connectivity AMP Connectors FN3100-80-35	60 Hz	Regenerative Motor Drive	80 A	CSA SEMKO UR	Terminal Block	Chassis Mount	300 V	520 V	100 °C	-25 °C	Single Stage	Three Phase (Delta)
TE Connectivity AMP Connectors FN3100-50-34	60 Hz	Regenerative Motor Drive	50 A	CSA SEMKO UR	Terminal Block	Chassis Mount	300 V	520 V	100 °C	-25 °C	Single Stage	Three Phase (Delta)
TE Connectivity AMP Connectors FN3100-200-40	60 Hz	Regenerative Motor Drive	200 A	CSA SEMKO UR	Terminal Block	Chassis Mount	300 V	520 V	100 °C	-25 °C	Single Stage	Three Phase (Delta)
TE Connectivity AMP Connectors FN3100-200-40	60 Hz	Regenerative Motor Drive	200 A	CSA SEMKO UR	Terminal Block	Chassis Mount	300 V	520 V	100 °C	-25 °C	Single Stage	Three Phase (Delta)
