CM1423 Series

Secure Digital Card EMI Filter Array with ESD Protection

Catalog

Secure Digital Card EMI Filter Array with ESD Protection

Part	Applications	Package / Case	Filter Order	Center / Cutoff Frequency	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Resistance - Channel (Ohms)	Attenuation Value	Mounting Type	Height [z]	Height [z]	Number of Channels [custom]	Type	Values	ESD Protection	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]

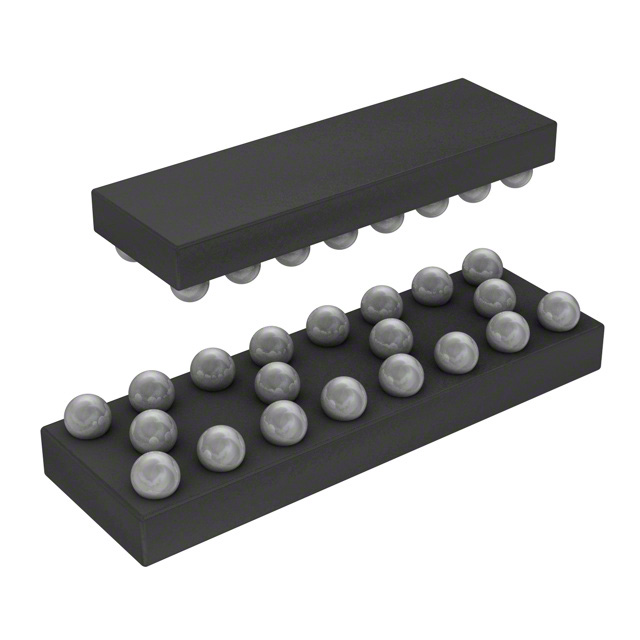

ON Semiconductor CM1423-03CP	Data Lines for Mobile Devices	20-WFBGA WLCSP	2nd	145 MHz	RC (Pi)	85 °C	-40 °C	100 Ohms	25 dB	Surface Mount	0.51 mm	0.02 in	6	Low Pass	12 pF 100 Ohms		0.157 "	4 mm	0.057 in	1.46 mm
ON Semiconductor CM1423-03CP	Data Lines for Mobile Devices	20-WFBGA WLCSP	2nd	145 MHz	RC (Pi)	85 °C	-40 °C	100 Ohms	25 dB	Surface Mount	0.51 mm	0.02 in	6	Low Pass	12 pF 100 Ohms		0.157 "	4 mm	0.057 in	1.46 mm

Catalog

Secure Digital Card EMI Filter Array with ESD Protection

Key Features

• Mates to the uSD interface

Description

The CM1423 is an EMI filter array with ESD protection, which integrates si pi filters (C-R-C) and four channels of ESD protections. the CM1423's filters have component values of 12pF-100 Ohm-12pF. The part includes ESD protection diodes on every pin.
