684M7W2 Series
Manufacturer: NorComp Inc.
Beta
⌘K

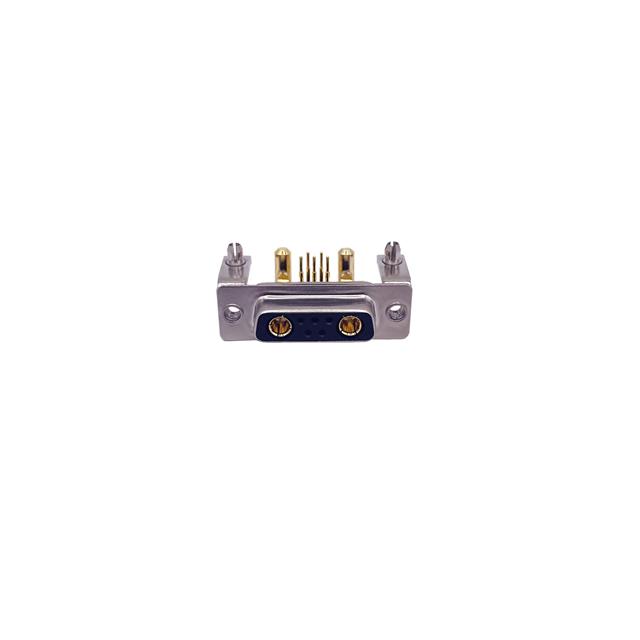

COMBO D-SUB CONN, RCPT, DA-7W2, TH ROHS COMPLIANT: YES
| Part | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Voltage Rating | Mounting Type | Shell Material, Finish | Current Rating (Amps) | Contact Finish | Features | Contact Type | Contact Finish Thickness | Connector Style | Flange Feature | Flange Feature | Material Flammability Rating | Backset Spacing | Backset Spacing | Termination | Number of Rows [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Number of Positions | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Black | Polybutylene Terephthalate (PBT) | -55 C | 125 °C | Copper Alloy | 250 V | Board Edge Right Angle Through Hole | Nickel Plated Steel | 5 A 40 A | Gold | Board Lock Mounting Brackets | Signal and Power | Flash | Combo D-Sub | Housing/Shell | 4-40 | UL94 V-0 | 9.4 mm | 0.37 in | Solder | 2 | A DA | 2 | 7W2 | Receptacle Female Sockets | 7 | 5 | 2 |
