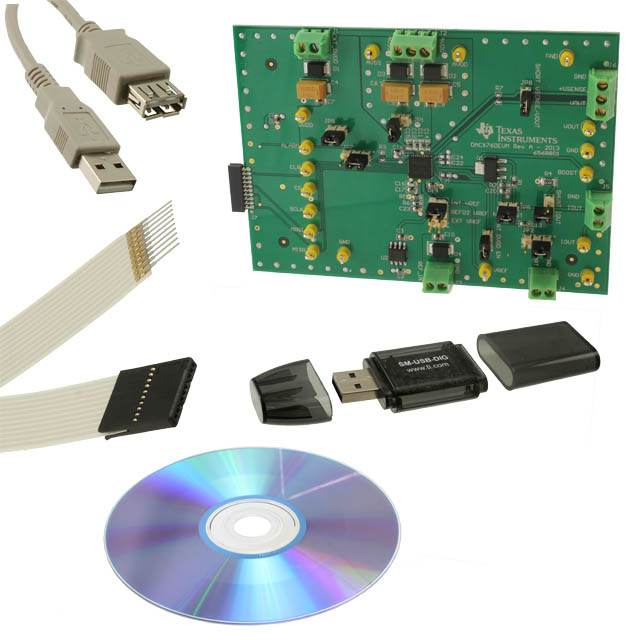

DAC8760 Series
16-Bit Single-Channel Programmable Current/Voltage Output DAC for 4-20mA current loop applications
Manufacturer: Texas Instruments
Catalog
16-Bit Single-Channel Programmable Current/Voltage Output DAC for 4-20mA current loop applications
Key Features
• Current output: 4 mA to 20 mA; 0 mA to 20 mA; 0 mA to 24 mAVoltage output:0 V to 5 V; 0 V to 10 V; ±5 V; ±10 V0 V to 5.5 V; 0 V to 11 V; ±5.5 V; ±11 V (10% overrange)±0.1% FSR total unadjusted error (TUE) maximumDNL: ±1 LSB maximumSimultaneous voltage and current outputInternal 5-V reference (10 ppm/°C, maximum)Internal 4.6-V power-supply outputReliability features:CRC check and watchdog timerThermal alarmOpen alarm, short current limitWide temperature range: –40°C to 125°CPackages: 6-mm × 6-mm 40-pin VQFN and 24-pin HTSSOPCurrent output: 4 mA to 20 mA; 0 mA to 20 mA; 0 mA to 24 mAVoltage output:0 V to 5 V; 0 V to 10 V; ±5 V; ±10 V0 V to 5.5 V; 0 V to 11 V; ±5.5 V; ±11 V (10% overrange)±0.1% FSR total unadjusted error (TUE) maximumDNL: ±1 LSB maximumSimultaneous voltage and current outputInternal 5-V reference (10 ppm/°C, maximum)Internal 4.6-V power-supply outputReliability features:CRC check and watchdog timerThermal alarmOpen alarm, short current limitWide temperature range: –40°C to 125°CPackages: 6-mm × 6-mm 40-pin VQFN and 24-pin HTSSOP
Description
AI
The DACx760 are precision, fully integrated, 12-bit and 16-bit digital-to-analog converters (DACs) designed to meet the requirements of industrial process-control applications. These devices are programmable as a current output with a range of 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA; or as a voltage output with a range of 0 V to 5 V, 0 V to 10 V, ±5 V, or ±10 V with a 10% overrange (0 V to 5.5 V, 0 V to 11 V, ±5.5 V, or ±11 V). Both current and voltage outputs can be simultaneously enabled while being controlled by one data register.
These devices include a power-on-reset function for powering up in a known state (both IOUT and VOUT are disabled and in a Hi-Z state). The CLR and CLR-SEL pins set the voltage outputs to zero-scale or midscale, and the current output to the low end of the range if the output is enabled. Zero and gain registers can be programmed to digitally calibrate the device in the end system. The output slew rate is also programmable by register. These devices can superimpose an external HART signal on the current output, and operate with either a single 10-V to 36-V supply, or dual supplies of up to ±18 V.
The DACx760 are precision, fully integrated, 12-bit and 16-bit digital-to-analog converters (DACs) designed to meet the requirements of industrial process-control applications. These devices are programmable as a current output with a range of 4 mA to 20 mA, 0 mA to 20 mA, or 0 mA to 24 mA; or as a voltage output with a range of 0 V to 5 V, 0 V to 10 V, ±5 V, or ±10 V with a 10% overrange (0 V to 5.5 V, 0 V to 11 V, ±5.5 V, or ±11 V). Both current and voltage outputs can be simultaneously enabled while being controlled by one data register.
These devices include a power-on-reset function for powering up in a known state (both IOUT and VOUT are disabled and in a Hi-Z state). The CLR and CLR-SEL pins set the voltage outputs to zero-scale or midscale, and the current output to the low end of the range if the output is enabled. Zero and gain registers can be programmed to digitally calibrate the device in the end system. The output slew rate is also programmable by register. These devices can superimpose an external HART signal on the current output, and operate with either a single 10-V to 36-V supply, or dual supplies of up to ±18 V.
