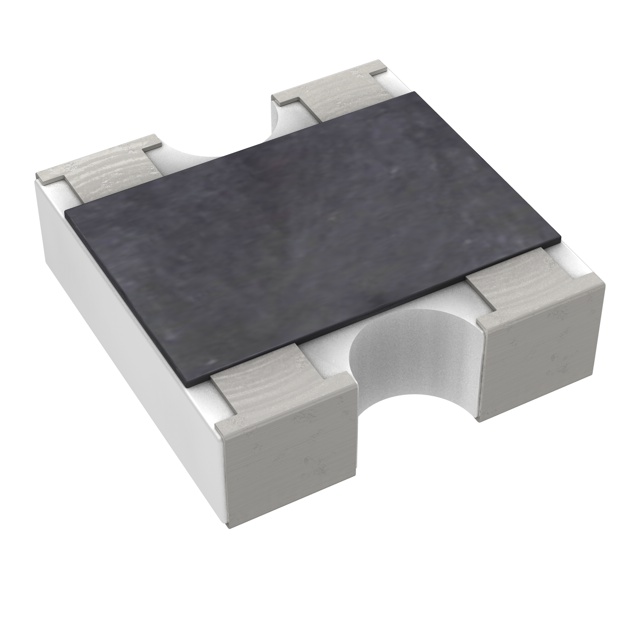

YC122-JR Series

Manufacturer: YAGEO

Catalog

Catalog

RES ARRAY 2 RES 560 OHM 0404

...

Part	Mounting Type	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Applications	Tolerance	Circuit Type	Number of Resistors	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of Pins	Grade	Qualification	Power Per Element	Resistance (Ohms) [custom]	Resistance (Ohms)	Resistance (Ohms) [custom]
YAGEO YC122-JR-07560RL	Surface Mount	200 ppm/°C	0.016 in	0.4 mm	1 mm	0.039 in	0.039 "	1 mm	DDRAM SDRAM	5 %	Isolated	2	0404 Convex	1010 Metric	155 C	-55 C	4	Automotive	AEC-Q200	62.5 mW	560 Ohms
YAGEO YC122-JR-071R8L	Surface Mount	250 ppm/°C	0.016 in	0.4 mm	1 mm	0.039 in	0.039 "	1 mm	DDRAM SDRAM	5 %	Isolated	2	0404 Convex	1010 Metric	155 C	-55 C	4	Automotive	AEC-Q200	62.5 mW	1.8 Ohms
YAGEO YC122-JR-0713KL	Surface Mount	200 ppm/°C	0.016 in	0.4 mm	1 mm	0.039 in	0.039 "	1 mm	DDRAM SDRAM	5 %	Isolated	2	0404 Convex	1010 Metric	155 C	-55 C	4	Automotive	AEC-Q200	62.5 mW		13 kOhms
YAGEO YC122-JR-073K3L	Surface Mount	200 ppm/°C	0.016 in	0.4 mm	1 mm	0.039 in	0.039 "	1 mm	DDRAM SDRAM	5 %	Isolated	2	0404 Convex	1010 Metric	155 C	-55 C	4	Automotive	AEC-Q200	62.5 mW	3.3 kOhms
YAGEO YC122-JR-07120KL	Surface Mount	200 ppm/°C	0.016 in	0.4 mm	1 mm	0.039 in	0.039 "	1 mm	DDRAM SDRAM	5 %	Isolated	2	0404 Convex	1010 Metric	155 C	-55 C	4	Automotive	AEC-Q200	62.5 mW			120k
YAGEO YC122-JR-0736KL	Surface Mount	200 ppm/°C	0.016 in	0.4 mm	1 mm	0.039 in	0.039 "	1 mm	DDRAM SDRAM	5 %	Isolated	2	0404 Convex	1010 Metric	155 C	-55 C	4	Automotive	AEC-Q200	62.5 mW	36 k
YAGEO YC122-JR-0768RL	Surface Mount	200 ppm/°C	0.016 in	0.4 mm	1 mm	0.039 in	0.039 "	1 mm	DDRAM SDRAM	5 %	Isolated	2	0404 Convex	1010 Metric	155 C	-55 C	4	Automotive	AEC-Q200	62.5 mW		68 Ohms
YAGEO YC122-JR-07680KL	Surface Mount	200 ppm/°C	0.016 in	0.4 mm	1 mm	0.039 in	0.039 "	1 mm	DDRAM SDRAM	5 %	Isolated	2	0404 Convex	1010 Metric	155 C	-55 C	4	Automotive	AEC-Q200	62.5 mW		680 kOhms
YAGEO YC122-JR-07270RL	Surface Mount	200 ppm/°C	0.016 in	0.4 mm	1 mm	0.039 in	0.039 "	1 mm	DDRAM SDRAM	5 %	Isolated	2	0404 Convex	1010 Metric	155 C	-55 C	4	Automotive	AEC-Q200	62.5 mW		270 Ohms
YAGEO YC122-JR-0716RL	Surface Mount	200 ppm/°C	0.016 in	0.4 mm	1 mm	0.039 in	0.039 "	1 mm	DDRAM SDRAM	5 %	Isolated	2	0404 Convex	1010 Metric	155 C	-55 C	4	Automotive	AEC-Q200	62.5 mW	16 Ohms
