6022 Series
Manufacturer: Boyd Laconia, LLC
Beta
⌘K

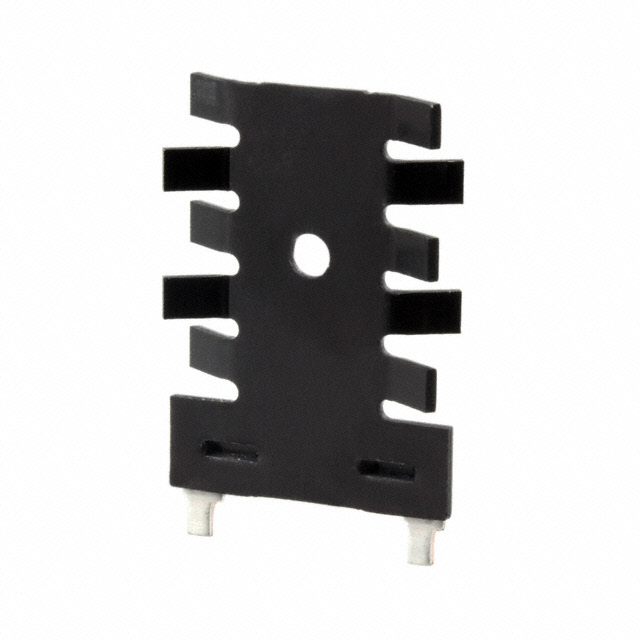

HEAT SINK PASSIVE TO-220 STAGGERED THRU-HOLE ALUMINUM 16.7°C/W BLACK ANODIZED
| Part | Attachment Method | Fin Height | Fin Height | Type | Shape [custom] | Shape [custom] | Material | Material Finish | Thermal Resistance @ Natural | Package Cooled | Width | Width | Thermal Resistance @ Forced Air Flow | Length | Length | Power Dissipation @ Temperature Rise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Boyd Laconia, LLC | Bolt On PC Pin | 6.35 mm | 0.25 in | Board Level Vertical | Rectangular | Fins | Aluminum | Black Anodized | 16.7 °C/W | TO-220 | 22.22 mm | 0.875 in | 6 °C/W | 30.73 mm | 1.21 in | 2 W 40 °C |
