M2478 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

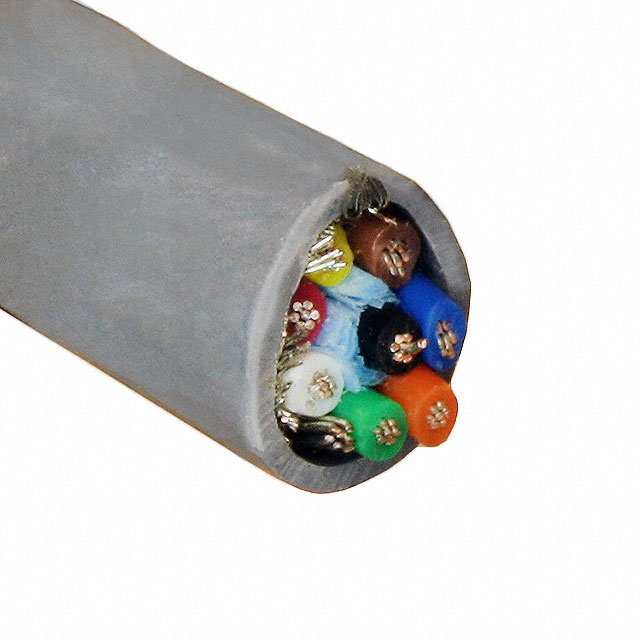

CABLE 8CON 22AWG SLATE SHLD 100'
| Part | Shield Material | Shield Coverage | Voltage | Wire Gauge | Shield Type | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Conductor Material | Jacket Color | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Number of Conductors [custom] | Cable Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 300 VDC | 22 AWG | Braid Foil | UL Style 2464 | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Slate | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 0.256 in | 6.5 mm | 0.813 mm | 0.032 in | 100 ft | 30.5 m | 8 | Multi-Conductor | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 300 VDC | 22 AWG | Braid Foil | UL Style 2464 | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Slate | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 0.256 in | 6.5 mm | 0.813 mm | 0.032 in | 8 | Multi-Conductor | 914.4 m | 3000 ' | ||
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 300 VDC | 22 AWG | Braid Foil | UL Style 2464 | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Slate | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 0.256 in | 6.5 mm | 0.813 mm | 0.032 in | 8 | Multi-Conductor | 152.4 m | 500 ft |
