KSA0M3 Series

Catalog

SWITCH TACTILE SPST-NO 0.01A 32V

Part	Switch Function	Ingress Protection	Mounting Type	Actuator Type	Actuator Height off PCB, Vertical [z]	Illumination	Circuit	Switch Travel	Termination Style	Actuator Orientation	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Mechanical Life	Outline [x]	Outline [y]

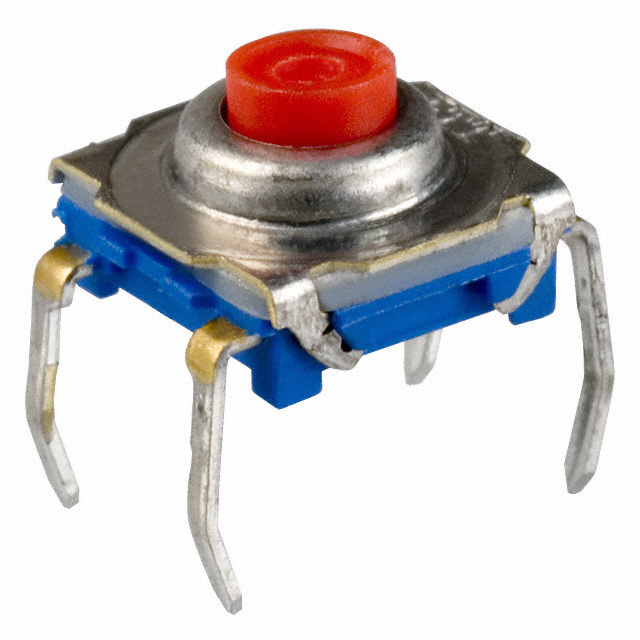

Littelfuse/Commercial Vehicle Products KSA0M331LFT	Off-Mom	IP60	Through Hole	Standard	4.7 mm	Non-Illuminated	SPST-NO	0.5 mm	PC Pin	Top Actuated	130 gf	125 °C	-40 °C	0.01 A 32 VDC	1000000 Cycles	7.4 mm	7.4 mm

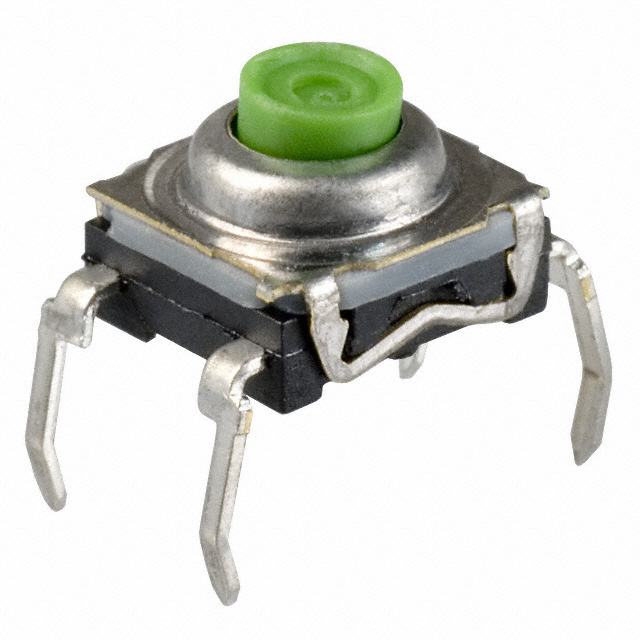

Littelfuse/Commercial Vehicle Products KSA0M312	Off-Mom	IP65 - Dust Tight Water Resistant	Through Hole	Standard	4.7 mm	Non-Illuminated	SPST-NO	0.5 mm	PC Pin	Top Actuated	130 gf	85 °C	-40 °C	0.05 A	1000000 Cycles	6.2 mm	6.2 mm
Littelfuse/Commercial Vehicle Products KSA0M331 LFTR	Off-Mom	IP60	Through Hole	Standard	4.7 mm	Non-Illuminated	SPST-NO	0.5 mm	PC Pin	Top Actuated	130 gf	125 °C	-40 °C	0.01 A 32 VDC	1000000 Cycles	7.4 mm	7.4 mm
Littelfuse/Commercial Vehicle Products KSA0M311	Off-Mom	IP60	Through Hole	Standard	4.7 mm	Non-Illuminated	SPST-NO	0.5 mm	PC Pin	Top Actuated	130 gf	90 °C	-40 °C	0.05 A	1000000 Cycles	7.4 mm	7.4 mm
Littelfuse/Commercial Vehicle Products KSA0M311 LFTR	Off-Mom	IP60	Through Hole	Standard	4.7 mm	Non-Illuminated	SPST-NO	0.5 mm	PC Pin	Top Actuated	130 gf	90 °C	-40 °C	0.05 A	1000000 Cycles	7.4 mm	7.4 mm
