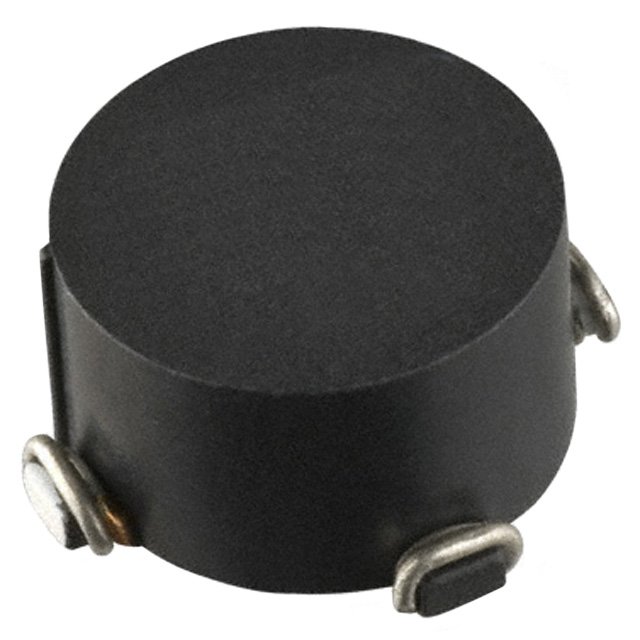

PM3700 Series

Catalog

CMC 750UH 5.5A 2LN SMD

Part	Mounting Type	Inductance @ Frequency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)	Number of Lines	DC Resistance (DCR) (Max) [Max]
Bourns Inc. PM3700-30	Surface Mount	750 µH	0.85 in	0.85 in	21.6 mm	21.6 mm	11.43 mm	0.45 in	-55 C	125 °C	Horizontal 4 PC Pad	5.5 A	12 mOhm	2
Bourns Inc. PM3700-70	Surface Mount	10 mH	0.85 in	0.85 in	21.6 mm	21.6 mm	11.43 mm	0.45 in	-55 C	125 °C	Horizontal 4 PC Pad	1.5 A		2	150 mOhm
Bourns Inc. PM3700-50	Surface Mount	1 kHz 2 mH	0.85 in	0.85 in	21.6 mm	21.6 mm	11.43 mm	0.45 in	-55 C	125 °C	Horizontal 4 PC Pad	3.5 A		2	30 mOhm
Bourns Inc. PM3700-20	Surface Mount	1 kHz 500 µH	0.85 in	0.85 in	21.6 mm	21.6 mm	11.43 mm	0.45 in	-55 C	125 °C	Horizontal 4 PC Pad	6 A		2	10 mOhm
Bourns Inc. PM3700-10	Surface Mount	200 µH	0.85 in	0.85 in	21.6 mm	21.6 mm	11.43 mm	0.45 in	-55 C	125 °C	Horizontal 4 PC Pad	7 A		2
Bourns Inc. PM3700-50-RC	Surface Mount	1 kHz 2 mH	0.85 in	0.85 in	21.6 mm	21.6 mm	11.43 mm	0.45 in	-55 C	125 °C	Horizontal 4 PC Pad	3.5 A		2	30 mOhm
Bourns Inc. PM3700-70-RC	Surface Mount	10 mH	0.85 in	0.85 in	21.6 mm	21.6 mm	11.43 mm	0.45 in	-55 C	125 °C	Horizontal 4 PC Pad	1.5 A		2	150 mOhm
Bourns Inc. PM3700-60	Surface Mount	5 mH	0.85 in	0.85 in	21.6 mm	21.6 mm	11.43 mm	0.45 in	-55 C	125 °C	Horizontal 4 PC Pad	2 A	70 mOhm	2
Bourns Inc. PM3700-40	Surface Mount	1 mH	0.85 in	0.85 in	21.6 mm	21.6 mm	11.43 mm	0.45 in	-55 C	125 °C	Horizontal 4 PC Pad	4 A		2	20 mOhm
Bourns Inc. PM3700-60-RC	Surface Mount	5 mH	0.85 in	0.85 in	21.6 mm	21.6 mm	11.43 mm	0.45 in	-55 C	125 °C	Horizontal 4 PC Pad	2 A	70 mOhm	2
