G9EN-1 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

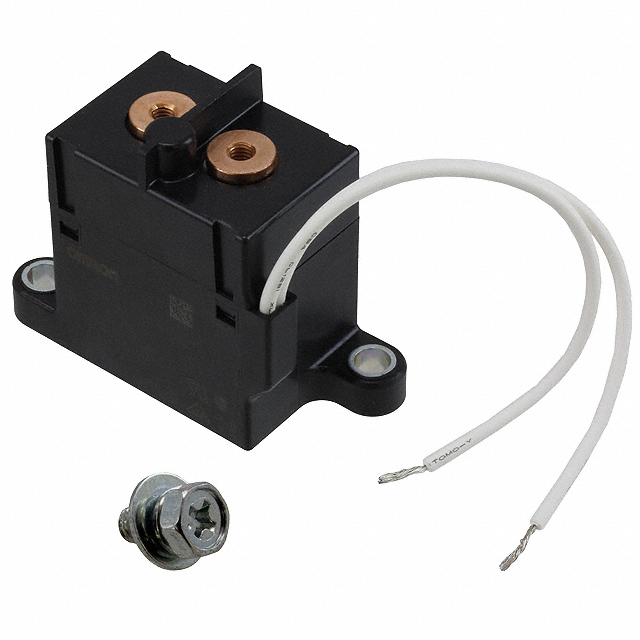

RELAY GEN PURPOSE SPST 60A 24V
| Part | Switching Voltage | Release Time | Termination Style | Coil Type | Must Release Voltage | Coil Current | Contact Rating (Current) | Relay Type | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Approval Agency | Mounting Type | Load - Max Switching [Max] | Operate Time | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 400 VDC | 20 ms | Screw Terminal | Non Latching | 1.2 VDC | 208 mA | 60 A | General Purpose | 24 VDC | 85 °C | -40 °C | 14.4 VDC | CSA UR VDE | Chassis Mount | 24000 VA | 40 ms | SPST-NO (1 Form A) |
