SMA391 Series

Catalog

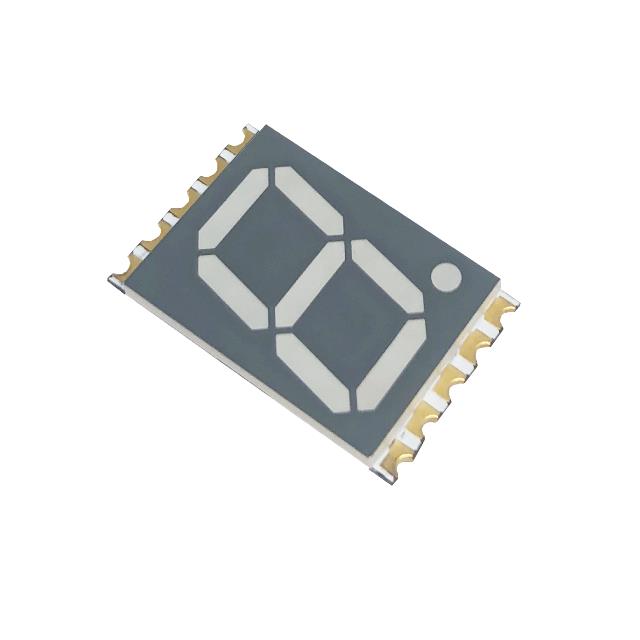

ULTRA THIN 7SEG 0.39" RED 10SMD

Part	Millicandela Rating	Power Dissipation (Max) [Max]	Current - Test	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Common Pin	Package / Case	Display Type	Voltage - Forward (Vf) (Typ)	Number of Characters	Power Dissipation (Max)
American Opto Plus LED SMA391LE-STGW	45 mcd	70 mW	20 mA	Red	0.112 "	9.8 mm	2.85 mm	0.591 in	0.386 in	15 mm	632 nm	10 mm	0.39 in	Common Anode	10-SMD No Lead	7-Segment	2 V	1
American Opto Plus LED SMA391LB G/W	40 mcd		20 mA	Blue	0.512 "	9.8 mm	13 mm	0.159 "	0.386 in	4.05 mm	470 nm	10 mm	0.39 in	Common Anode	10-SMD No Lead	7-Segment	3.2 V	1	120 mW
American Opto Plus LED SMA391YG G/W	12 mcd	70 mW	20 mA	Yellow-Green	0.512 "	9.8 mm	13 mm	0.159 "	0.386 in	4.05 mm	573 nm	10 mm	0.39 in	Common Anode	10-SMD No Lead	7-Segment	2.1 V	1
American Opto Plus LED SMA391W G/W	35 mcd		5 mA	White	0.512 "	9.8 mm	13 mm	0.159 "	0.386 in	4.05 mm		10 mm	0.39 in	Common Anode	10-SMD No Lead	7-Segment	3.2 V	1	120 mW
American Opto Plus LED SMA391LA G/W	30 mcd	70 mW	20 mA	Amber	0.512 "	9.8 mm	13 mm	0.159 "	0.386 in	4.05 mm	612 nm	10 mm	0.39 in	Common Anode	10-SMD No Lead	7-Segment	2 V	1
American Opto Plus LED SMA391LY G/W	30 mcd	70 mW	20 mA	Yellow	0.512 "	9.8 mm	13 mm	0.159 "	0.386 in	4.05 mm	593 nm	10 mm	0.39 in	Common Anode	10-SMD No Lead	7-Segment	2 V	1
American Opto Plus LED SMA391PG G/W	130 mcd		20 mA	Green	0.512 "	9.8 mm	13 mm	0.159 "	0.386 in	4.05 mm	525 nm	10 mm	0.39 in	Common Anode	10-SMD No Lead	7-Segment	3.2 V	1	120 mW
American Opto Plus LED SMA391LE G/W	30 mcd	70 mW	20 mA	Red	0.512 "	9.8 mm	13 mm	0.159 "	0.386 in	4.05 mm	632 nm	10 mm	0.39 in	Common Anode	10-SMD No Lead	7-Segment	2 V	1
