PT6101 Series

Catalog

ETHERNET & LAN TRANSFORMER, 10/100 BASE-T, 1 PORT, 1CT:1CT, 350 ΜH, 1.5 KV, SURFACE MOUNT

Part	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Transformer Type	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Qualification	Grade

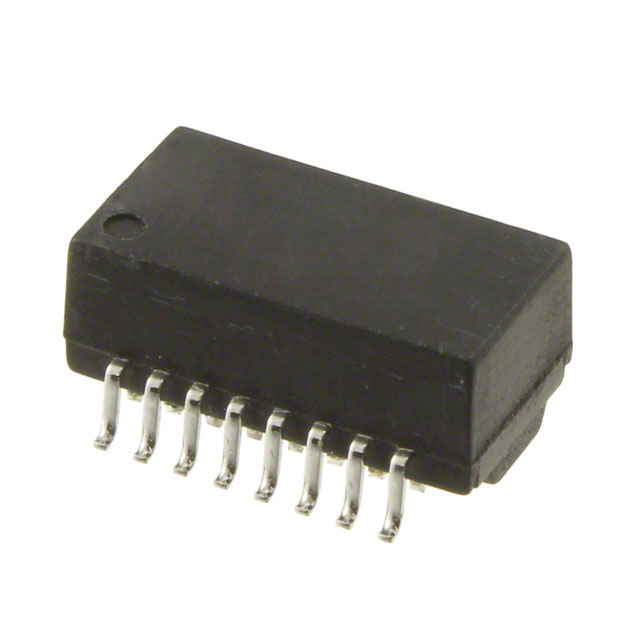

Bourns Inc. PT61018PEL	350 µH	85 °C	-40 C	LAN 10/100 Base-T	1CT	1CT	0.222 in	5.65 mm	Surface Mount	12.8 mm	0.272 in	0.504 in	6.9 mm

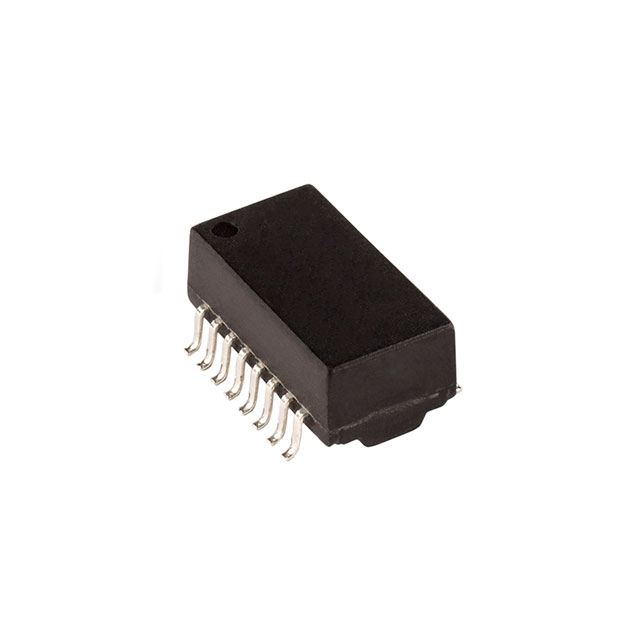

Bourns Inc. PT61018AAPEL	350 µH	85 °C	-40 C	LAN 10/100 Base-T	1CT	1CT	0.232 "	5.9 mm	Surface Mount	12.8 mm	0.272 in	0.504 in	6.9 mm	AEC-Q200	Automotive
Bourns Inc. PT61017PEL	350 µH	70 °C	0 °C	LAN 10/100 Base-T	1CT	1CT	0.222 in	5.65 mm	Surface Mount	12.8 mm	0.272 in	0.504 in	6.9 mm
