9774MN Series

Catalog

MULTI-PAIR 12CON 18AWG GRY

Part	Shield Material	Shield Coverage	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Number of Conductors	Jacket (Insulation) Material	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Wire Gauge	Conductor Insulation	Features	Ratings	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Shield Type	Jacket Color	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Length [x]	Length [x]
Belden Inc. 9774MN 0081000	Aluminum	100 %	300 VDC	0.406 mm	0.016 in	Audio Control Instrumentation	12	Poly-Vinyl Chloride (PVC)	0.439 in	11.15 mm	18 AWG	Polypropylene (PP)	Drain Wire	UL Style 2937	Copper Tinned	80 °C	-20 ░C	Multi-Pair	Foil	Gray	304.8 m	1000 ft	41	34

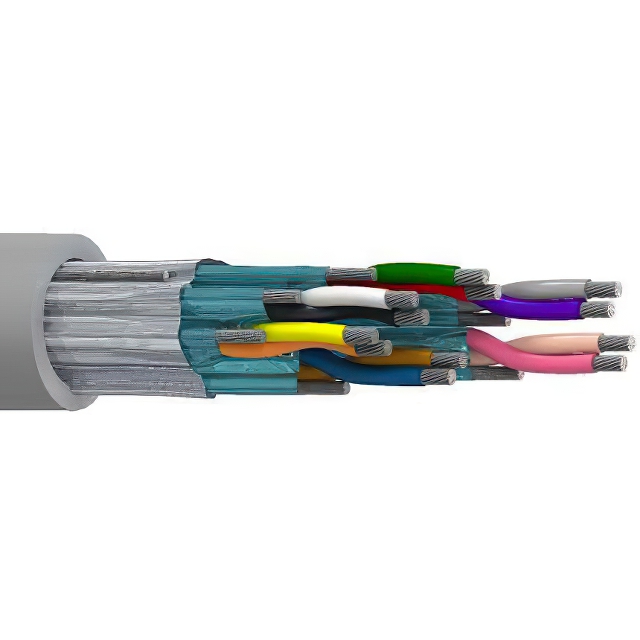

Belden Inc. 9774MN 008100	Aluminum	100 %		0.031 in		Audio Control Instrumentation	12	Poly-Vinyl Chloride (PVC)	0.439 in	11.15 mm	18 AWG	Polypropylene (PP)	Drain Wire		Copper Tinned	80 °C	-20 ░C	Multi-Pair	Foil	Gray			41	34	0.787 mm	100 ft	30.5 m
