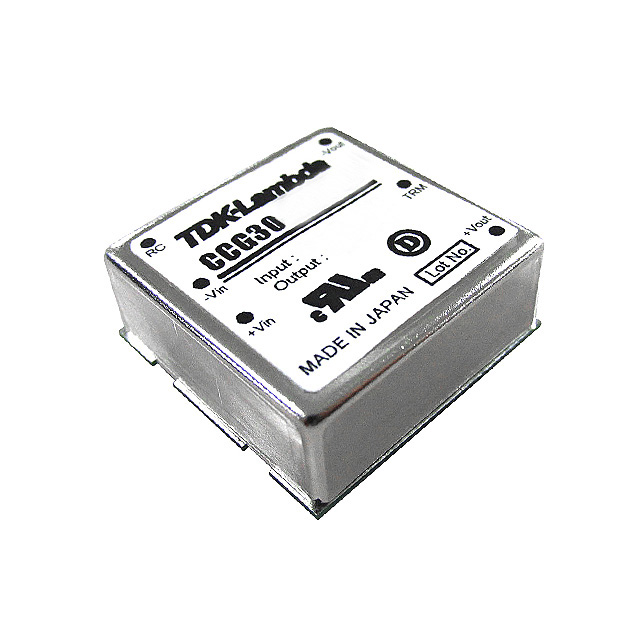

CCG30 Series

Catalog

DC-DC CONVERTER, 2 O/P, 15V, 1A ROHS COMPLIANT: YES

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Power (Watts)	Voltage - Output 2	Standard Number	Applications	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Package / Case	Voltage - Input (Max) [Max]	Control Features	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Voltage - Output 1	Features	Approval Agency	Mounting Type	Current - Output (Max) [Max]
TDK-LAMBDA CCG30-24-15D	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	91 %	30 W	-15 V	62368-1	ITE (Commercial)	2	Isolated Module	85 °C	-40 °C	1.5 kV	6-DIP Module	36 V	Active Low Enable	1 A	1 A	9 V	15 V	OCP Remote On/Off	CE CSA EN IEC UKCA UL	Through Hole
TDK-LAMBDA CCG30-48-05S	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	90 %	30 W		62368-1	ITE (Commercial)	1	Isolated Module	85 °C	-40 °C	1.5 kV	6-DIP Module	76 V	Active Low Enable			18 V	5 V	Adjustable Output OCP Remote On/Off	CE CSA EN IEC UKCA UL	Through Hole	6 A
TDK-LAMBDA CCG30-48-03S	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	87 %	30 W		62368-1	ITE (Commercial)	1	Isolated Module	85 °C	-40 °C	1.5 kV	6-DIP Module	76 V	Active Low Enable	7 A		18 V	3.3 V	Adjustable Output OCP Remote On/Off	CE CSA EN IEC UKCA UL	Through Hole
TDK-LAMBDA CCG30-24-12D	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	89 %	30 W	-12 V	62368-1	ITE (Commercial)	2	Isolated Module	85 °C	-40 °C	1.5 kV	6-DIP Module	36 V	Active Low Enable	1.25 A		9 V	12 V	OCP Remote On/Off	CE CSA EN IEC UKCA UL	Through Hole
TDK-LAMBDA CCG30-24-05S	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	89 %	30 W		62368-1	ITE (Commercial)	1	Isolated Module	85 °C	-40 °C	1.5 kV	6-DIP Module	36 V	Active Low Enable			9 V	5 V	Adjustable Output OCP Remote On/Off	CE CSA EN IEC UKCA UL	Through Hole	6 A
