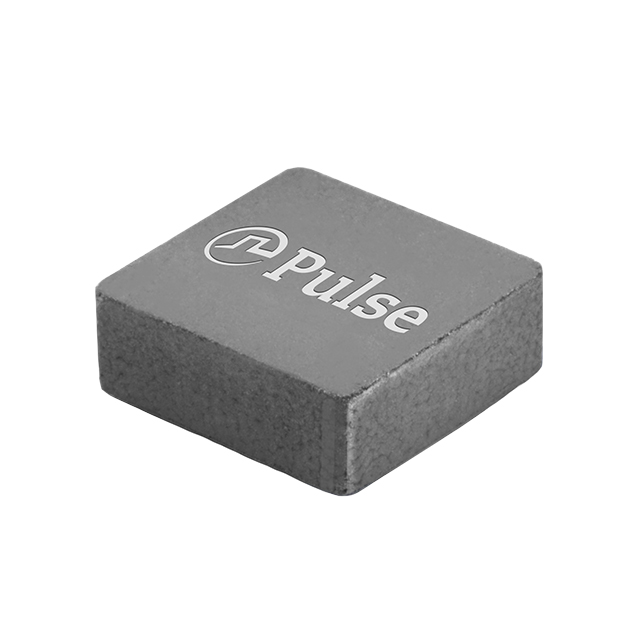

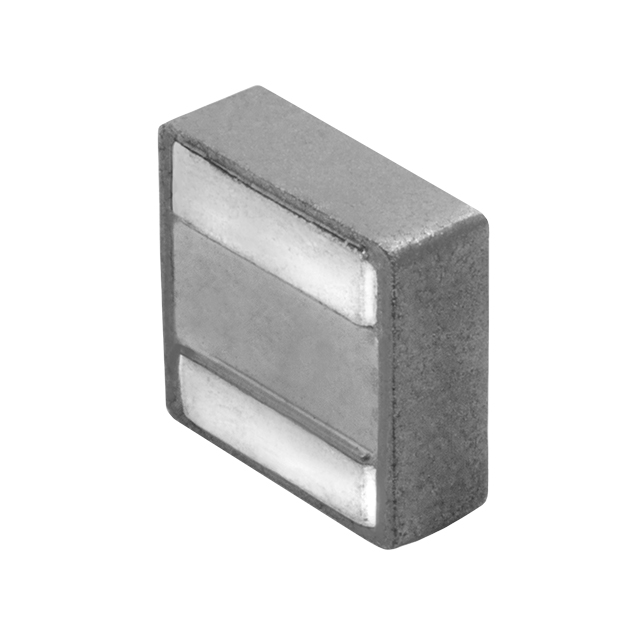

PA500x Series

Power Inductors - SMD 0.82uH 20% AEC-Q200 5.9A DCR=36.3mOhm

Manufacturer: Pulse Electronics

Catalog

Power Inductors - SMD 0.82uH 20% AEC-Q200 5.9A DCR=36.3mOhm

Catalog

Power Inductors - SMD 0.82uH 20% AEC-Q200 5.9A DCR=36.3mOhm

Part	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Inductance Frequency - Test	Tolerance	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Saturation (Isat)	Inductance	DC Resistance (DCR) [Max]	Material - Core	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	DC Resistance (DCR)	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Pulse Electronics PA5005.152NLT	Molded	0.197 in	5 mm	Shielded	100 kHz	20 %	Nonstandard	125 °C	-40 C	Surface Mount	19.5 A	1.5 µH	6.3 mOhm	Ferrite	6.4 mm	6.6 mm	0.26 in	0.252 in	17 A
Pulse Electronics PA5005.102NLT	Molded	0.197 in	5 mm	Shielded	100 kHz	20 %	Nonstandard	125 °C	-40 C	Surface Mount	23 A	1 µH		Ferrite	6.4 mm	6.6 mm	0.26 in	0.252 in	20 A	4.52 mOhm
Pulse Electronics PA5003.821NLT	Molded			Shielded	100 kHz	20 %	Nonstandard	125 °C	-40 C	Surface Mount	19.7 A	820 nH	5.78 mOhm	Ferrite		5.5 mm	0.217 in	0.209 in	12.9 A		5.3 mm	0.122 in	3.1 mm
Pulse Electronics PA5001.401NLT	Molded			Shielded	100 kHz	20 %	Nonstandard	125 °C	-40 C	Surface Mount	15.5 A	400 nH		Ferrite		4.1 mm	0.161 "	0.161 in	14 A	7.73 mOhm	4.1 mm	0.083 in	2.1 mm
