M80-942 Series

Catalog

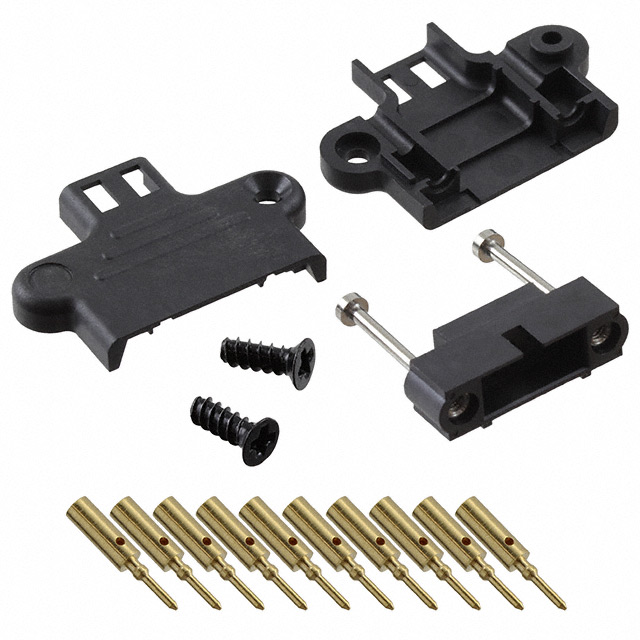

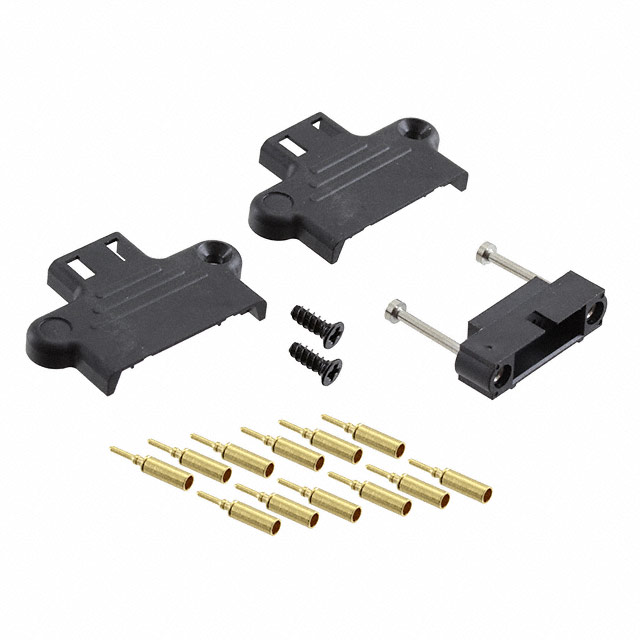

10+10 POS. MALE DIL 24-28AWG CABLE CONN. KIT WITH HOOD/BACKSHELL, JACKSCREWS ROHS COMPLIANT: YES

Part	Number of Rows [custom]	Row Spacing	Row Spacing	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Finish Thickness	Wire Type	Contact Finish	Connector Type	Color	Pitch [x]	Pitch [x]	Features	Cable Termination	Mounting Type	Contact Type	Number of Positions	Number of Positions [custom]
Harwin Inc. M80-9422005	2	2 mm	0.079 in	24 AWG	28 AWG	0.25 Ám	10 Áin	Discrete	Gold	Receptacle	Black	0.079 in	2 mm	Cable Hood Kit Jackscrews	Crimp	Free Hanging (In-Line)	Female Socket	20
Harwin Inc. M80-9423405	2	2 mm	0.079 in	24 AWG	28 AWG	0.25 Ám	10 Áin	Discrete	Gold	Receptacle	Black	0.079 in	2 mm	Cable Hood Kit Jackscrews	Crimp	Free Hanging (In-Line)	Female Socket		34
Harwin Inc. M80-9425005	2	2 mm	0.079 in	24 AWG	28 AWG	0.25 Ám	10 Áin	Discrete	Gold	Receptacle	Black	0.079 in	2 mm	Cable Hood Kit Jackscrews	Crimp	Free Hanging (In-Line)	Female Socket	50
Harwin Inc. M80-9421405	2	2 mm	0.079 in	24 AWG	28 AWG	0.25 Ám	10 Áin	Discrete	Gold	Receptacle	Black	0.079 in	2 mm	Cable Hood Kit Jackscrews	Crimp	Free Hanging (In-Line)	Female Socket	14
