PTA4553 Series

Catalog

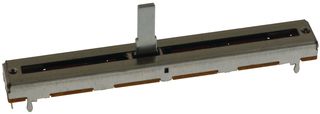

SLIDE POT 10K OHM 0.25W TOP 45MM

Part	Tolerance	Adjustment Type	Travel Range	Fader Type	Resistance	Power (Watts)	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type
Bourns Inc. PTA4553-2010CIB103	20 %	Top	45 mm	Standard	10000 Ohms	0.25 W	0.25 W	60 mm	6.5 mm	9 mm	2.362 in	0.354 in	0.256 in	Through Hole
Bourns Inc. PTA4553-2015CPB204	20 %	Top	45 mm	Standard	200000 Ohms	0.25 W	0.25 W	60 mm	6.5 mm	9 mm	2.362 in	0.354 in	0.256 in	Through Hole
Bourns Inc. PTA4553-2215CIB103	20 %	Top	45 mm	Standard	10000 Ohms	0.25 W	0.25 W	60 mm	6.5 mm	9 mm	2.362 in	0.354 in	0.256 in	Through Hole
Bourns Inc. PTA4553-2015CPA103	20 %	Top	45 mm	Standard	10000 Ohms	0.125 W	0.125 W	60 mm	6.5 mm	9 mm	2.362 in	0.354 in	0.256 in	Through Hole
Bourns Inc. PTA4553-2210DPB103	20 %	Top	45 mm	Standard	10000 Ohms	0.25 W	0.25 W	60 mm	6.5 mm	9 mm	2.362 in	0.354 in	0.256 in	Through Hole
Bourns Inc. PTA4553-2015CPB103	20 %	Top	45 mm	Standard	10000 Ohms	0.25 W	0.25 W	60 mm	6.5 mm	9 mm	2.362 in	0.354 in	0.256 in	Through Hole
Bourns Inc. PTA4553-2015CPB503	20 %	Top	45 mm	Standard	50000 Ohms	0.25 W	0.25 W	60 mm	6.5 mm	9 mm	2.362 in	0.354 in	0.256 in	Through Hole
Bourns Inc. PTA4553-2015DPB102	20 %	Top	45 mm	Standard	1000 Ohms	0.25 W	0.25 W	60 mm	6.5 mm	9 mm	2.362 in	0.354 in	0.256 in	Through Hole
Bourns Inc. PTA4553-2015DPA105	20 %	Top	45 mm	Standard	1 MOhms	0.125 W	0.125 W	60 mm	6.5 mm	9 mm	2.362 in	0.354 in	0.256 in	Through Hole
