SFSA016 Series

Manufacturer: SWISSBIT

Catalog

SSD 16GB M.2 SLC SATA III 3.3V

Part	Memory Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Speed - Read	Memory Type	Voltage - Supply	Current - Max [Max]	Form Factor	Speed - Write	Operating Temperature [Max]	Operating Temperature [Min]	Type	Form Factor	Weight [custom]	Weight [custom]	Weight [custom]	Weight [custom]	Weight	Weight

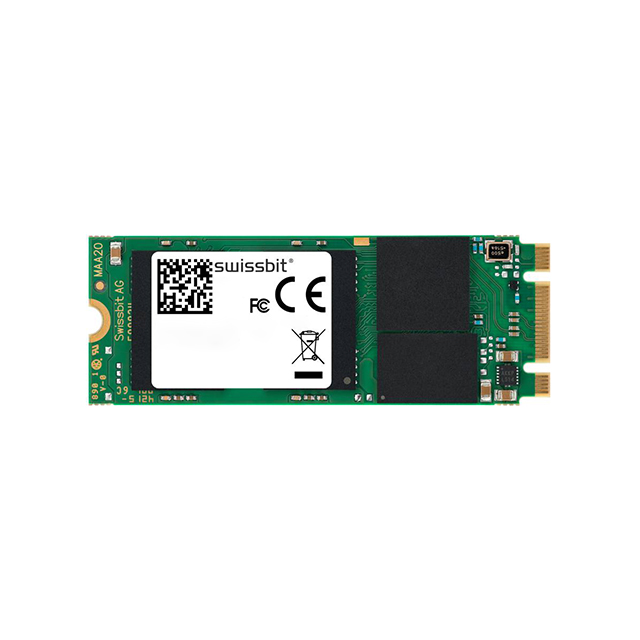

SWISSBIT SFSA016GM1AA2TO-I-DB-416-STD	16 GB	60 mm	3.3 mm	22 mm	470 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	350 mA	M.2 Module	125 MB/s	85 °C	-40 C	SATA III

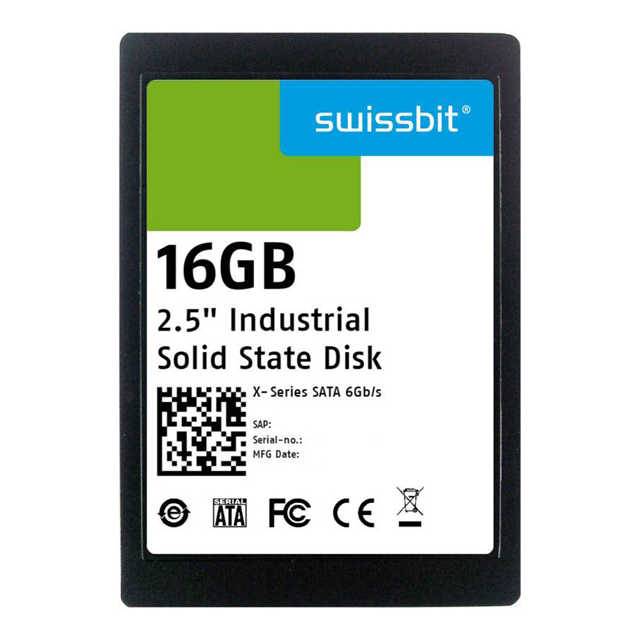

SWISSBIT SFSA016GQ1BJ8TO-I-DT-236-STD	16 GB	100.2 mm	9.3 mm	2.75 in	226 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)		400 mA		142 MB/s	85 °C	-40 C	SATA II	2.5 "	2.82 oz	80.36 g

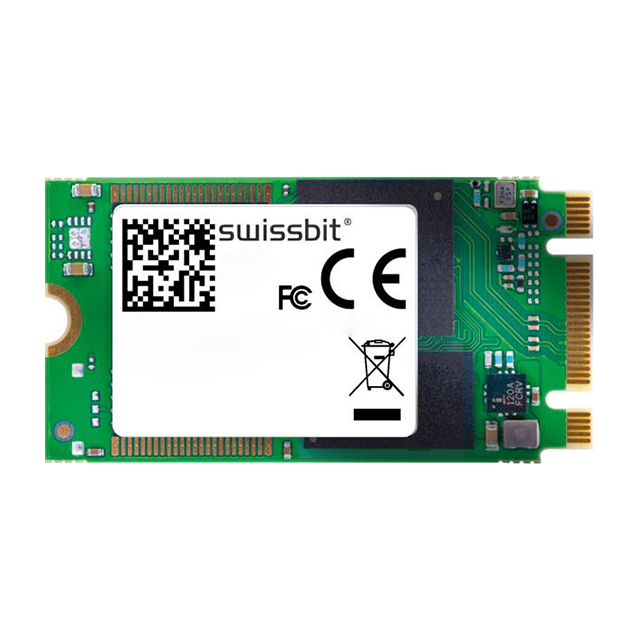

SWISSBIT SFSA016GM3AA1TO-I-LB-12P-STD	16 GB	42 mm	3.6 mm	22 mm	520 MB/s	Solid State Drive (SSD) FLASH - NAND (pSLC)	3.3 V	550 mA	M.2 Module	415 MB/s	85 °C	-40 C	SATA III
SWISSBIT SFSA016GQ1AA1TO-I-LB-22P-STD	16 GB	100.2 mm	7 mm	2.75 in	520 MB/s	Solid State Drive (SSD) FLASH - NAND (pSLC)		530 mA		450 MB/s	85 °C	-40 C	SATA III	2.5 "
SWISSBIT SFSA016GQ1AA2TO-C-DB-226-STD	16 GB	100.1 mm	7 mm	2.75 in	470 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)				125 MB/s	70 °C	0 °C	SATA III	2.5 "			70.38 g	2.47 oz
SWISSBIT SFSA016GM1AA2TO-C-DB-216-STD	16 GB	42 mm	3.3 mm	22 mm	470 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	360 mA	M.2 Module	125 MB/s	70 °C	0 °C	SATA III
SWISSBIT SFSA016GV3AA2TO-C-DB-226-STD	16 GB	54 mm	4 mm	39 mm	470 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V 5 VDC		Slim-SATA	125 MB/s	70 °C	0 °C	SATA III
SWISSBIT SFSA016GM1AA2TO-C-DB-416-STD	16 GB	60 mm	3.3 mm	22 mm	470 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V	350 mA	M.2 Module	125 MB/s	70 °C	0 °C	SATA III
SWISSBIT SFSA016GV1AA2TO-C-DB-216-STD	16 GB	54 mm	4 mm	39 mm	470 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)			Slim-SATA	125 MB/s	70 °C	0 °C	SATA III						10 g	0.353 oz
SWISSBIT SFSA016GM3AA2TO-C-DB-226-STD	16 GB	42 mm	3.58 mm	22 mm	470 MB/s	Solid State Drive (SSD) FLASH - NAND (SLC)	3.3 V		M.2 Module	125 MB/s	70 °C	0 °C	SATA III
