326809 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

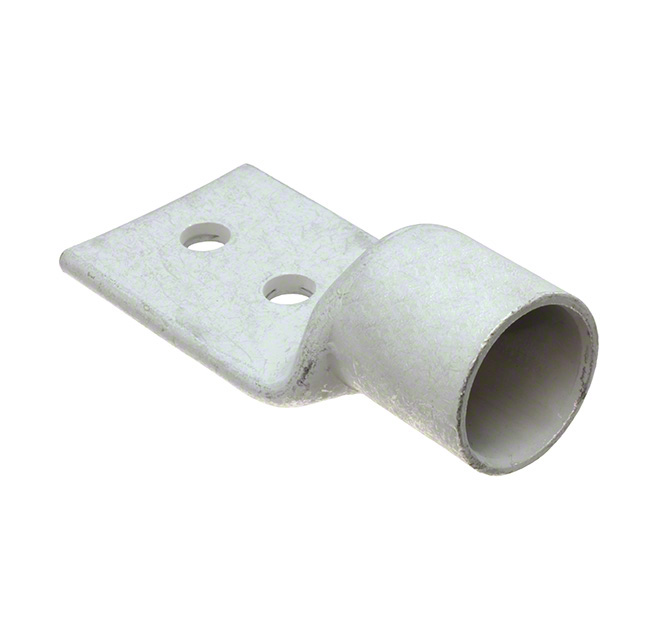

CONN TERM RECT 600 MCM #3/8
| Part | Length - Overall | Length - Overall | Stud/Tab Size | Insulation | Terminal Type | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Wire Gauge | Termination | Mounting Type | Width - Outer Edges [y] | Width - Outer Edges [y] | Terminal Style | Contact Finish | Contact Material | Tab Thickness | Tab Thickness | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 107.19 mm | 4.22 in | 3/8 Stud | Non-Insulated | Standard | 9.91 mm | 0.39 in | 600 MCM (kcmil) | Barrel Crimp | Free Hanging (In-Line) | 1.95 in | 49.53 mm | Two Stud Holes | Tin | Copper | 5.59 mm | 0.22 in | 1.341 in | 34.06 mm | 1.075 " | 27.31 mm |
