AMC1304L25-Q1 Series

Automotive, ±250-mV input, current sensing reinforced isolated modulator with LDO & LVDS Interface

Catalog

Automotive, ±250-mV input, current sensing reinforced isolated modulator with LDO & LVDS Interface

Part	Operating Temperature [Max]	Operating Temperature [Min]	Data Interface	Voltage Supply Source	Sampling Rate (Per Second)	Number of Channels	Mounting Type	Type	Package / Case [x]	Package / Case	Package / Case [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Resolution (Bits)	Grade	Qualification	Number of Channels [custom]	Utilized IC / Part	Supplied Contents	Number of Bits	Input Range	Number of A/D Converters
Texas Instruments AMC1304M05DWR	125 °C	-40 °C	CMOS Serial	Single Supply	78k	1	Surface Mount	Isolated Module	0.295 in	16-SOIC	7.5 mm	5.5 V	3 V	16-SOIC	16 b
Texas Instruments AMC1304L05QDWQ1	125 °C	-40 °C	LVDS Serial	Single Supply	78k		Surface Mount	Isolated Module	0.295 in	16-SOIC	7.5 mm	5.5 V	3 V	16-SOIC	16 b	Automotive	AEC-Q100	2
Texas Instruments AMC1304L25DWR	125 °C	-40 °C	LVDS - Serial	Single Supply	78k	1	Surface Mount	Isolated Module	0.295 in	16-SOIC	7.5 mm	5.5 V	3 V	16-SOIC	16 b

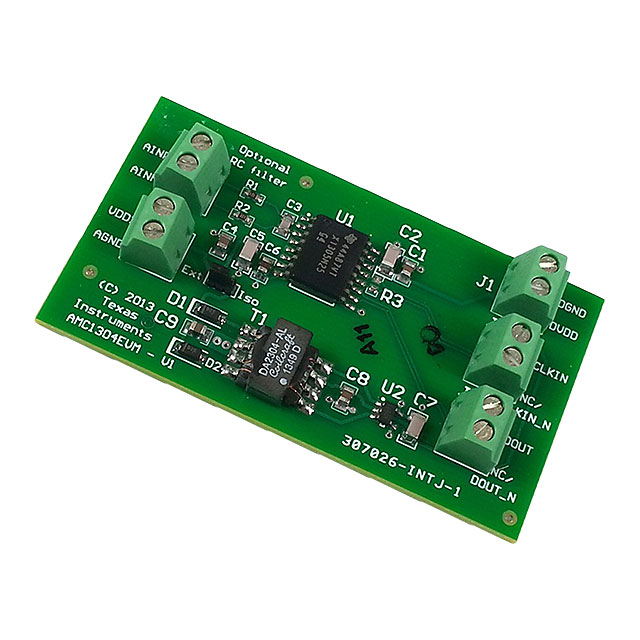

Texas Instruments AMC1304L25EVM																			AMC1304L25	Board(s)	16	250 mV
Texas Instruments AMC1304L05QDWRQ1	125 °C	-40 °C	LVDS Serial	Single Supply	78k		Surface Mount	Isolated Module	0.295 in	16-SOIC	7.5 mm	5.5 V	3 V	16-SOIC	16 b	Automotive	AEC-Q100	2
Texas Instruments AMC1304M25QDWRQ1	125 °C	-40 °C	CMOS Serial	Single Supply	78k	1	Surface Mount	Isolated Module	0.295 in	16-SOIC	7.5 mm	5.5 V	3 V	16-SOIC	16 b	Automotive	AEC-Q100
Texas Instruments AMC1304L25QDWQ1	125 °C	-40 °C	LVDS Serial	Single Supply	78k		Surface Mount	Isolated Module	0.295 in	16-SOIC	7.5 mm	5.5 V	3 V	16-SOIC	16 b	Automotive	AEC-Q100	2
Texas Instruments AMC1304L25DW	125 °C	-40 °C	LVDS - Serial	Single Supply	78k	1	Surface Mount	Isolated Module	0.295 in	16-SOIC	7.5 mm	5.5 V	3 V	16-SOIC	16 b

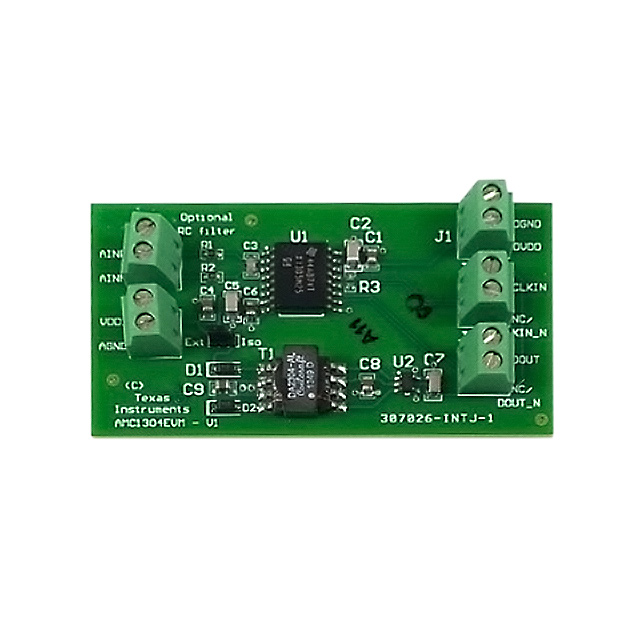

Texas Instruments AMC1304M25EVM			Serial																AMC1304	Board(s)	16	250 mV	1
Texas Instruments AMC1304M25QDWQ1	125 °C	-40 °C	CMOS Serial	Single Supply	78k	1	Surface Mount	Isolated Module	0.295 in	16-SOIC	7.5 mm	5.5 V	3 V	16-SOIC	16 b	Automotive	AEC-Q100

Catalog

Automotive, ±250-mV input, current sensing reinforced isolated modulator with LDO & LVDS Interface

Key Features

• Pin-compatible family optimized for shunt-resistor-based current measurements:±50-mV or ±250-mV input voltage rangesCMOS or LVDS digital interface optionsExcellent DC performance supporting high-precision sensing on system level:Offset error: ±50 µV or ±100 µV (max)Offset drift: 1.3 µV/°C (max)Gain error: ±0.2% or ±0.3% (max)Gain drift: ±40 ppm/°C (max)Safety-related certifications:7000-VPKreinforced isolation perDIN VDE V 0884-11: 2017-015000-VRMSisolation for 1 minute per UL1577CAN/CSA no. 5A-component acceptance service notice and IEC 62368-1 end equipment standardTransient immunity: 15 kV/µs (min)High electromagnetic field immunity(see application noteSLLA181A)External 5-MHz to 20-MHz clock input foreasier system-level synchronizationOn-chip 18-V LDO regulatorFully specified over the extended industrial temperature rangePin-compatible family optimized for shunt-resistor-based current measurements:±50-mV or ±250-mV input voltage rangesCMOS or LVDS digital interface optionsExcellent DC performance supporting high-precision sensing on system level:Offset error: ±50 µV or ±100 µV (max)Offset drift: 1.3 µV/°C (max)Gain error: ±0.2% or ±0.3% (max)Gain drift: ±40 ppm/°C (max)Safety-related certifications:7000-VPKreinforced isolation perDIN VDE V 0884-11: 2017-015000-VRMSisolation for 1 minute per UL1577CAN/CSA no. 5A-component acceptance service notice and IEC 62368-1 end equipment standardTransient immunity: 15 kV/µs (min)High electromagnetic field immunity(see application noteSLLA181A)External 5-MHz to 20-MHz clock input foreasier system-level synchronizationOn-chip 18-V LDO regulatorFully specified over the extended industrial temperature range

Description

The AMC1304 is a precision, delta-sigma (ΔΣ) modulator with the output separated from the input circuitry by a capacitive double isolation barrier that is highly resistant to magnetic interference. This barrier is certified to provide reinforced isolation of up to 7000 VPEAKaccording to the DIN VDE V 0884-11, UL1577 and CSA standards. Used in conjunction with isolated power supplies, the device prevents noise currents on a high common-mode voltage line from entering the local system ground and interfering with or damaging low voltage circuitry. The input of the AMC1304 is optimized for direct connection to shunt resistors or other low voltage-level signal sources. The unique low input voltage range of the ±50-mV device allows significant reduction of the power dissipation through the shunt while supporting excellent ac and dc performance. By using an appropriate digital filter (that is, as integrated on theTMS320F2807xorTMS320F2837xfamilies) to decimate the bit stream, the device can achieve 16 bits of resolution with a dynamic range of 81 dB (13.2 ENOB) at a data rate of 78 kSPS. On the high-side, the modulator is supplied by an integrated low-dropout (LDO) regulator that allows an unregulated input voltage between 4 V and 18 V (LDOIN). The isolated digital interface operates from a 3.3-V or 5-V power supply (DVDD). The AMC1304 is available in a wide-body SOIC-16 (DW) package and is specified from –40°C to +125°C. The AMC1304 is a precision, delta-sigma (ΔΣ) modulator with the output separated from the input circuitry by a capacitive double isolation barrier that is highly resistant to magnetic interference. This barrier is certified to provide reinforced isolation of up to 7000 VPEAKaccording to the DIN VDE V 0884-11, UL1577 and CSA standards. Used in conjunction with isolated power supplies, the device prevents noise currents on a high common-mode voltage line from entering the local system ground and interfering with or damaging low voltage circuitry. The input of the AMC1304 is optimized for direct connection to shunt resistors or other low voltage-level signal sources. The unique low input voltage range of the ±50-mV device allows significant reduction of the power dissipation through the shunt while supporting excellent ac and dc performance. By using an appropriate digital filter (that is, as integrated on theTMS320F2807xorTMS320F2837xfamilies) to decimate the bit stream, the device can achieve 16 bits of resolution with a dynamic range of 81 dB (13.2 ENOB) at a data rate of 78 kSPS. On the high-side, the modulator is supplied by an integrated low-dropout (LDO) regulator that allows an unregulated input voltage between 4 V and 18 V (LDOIN). The isolated digital interface operates from a 3.3-V or 5-V power supply (DVDD). The AMC1304 is available in a wide-body SOIC-16 (DW) package and is specified from –40°C to +125°C.
