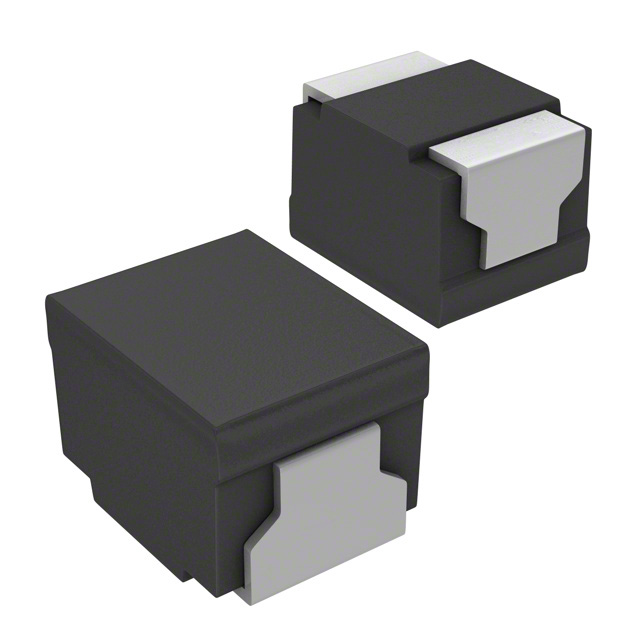

ELJ-DA Series

Catalog

FIXED IND 82UH 80MA 10 OHM SMD

Part	Mounting Type	Tolerance	Inductance Frequency - Test	Frequency - Self Resonant	Shielding	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Q @ Freq	Inductance	Package / Case	Package / Case
Panasonic Industrial Automation Sales ELJ-DA820JF	Surface Mount	5 %	2.52 MHz	7 MHz	Unshielded	3.2 mm	2.5 mm	0.126 in	0.098 in	Wirewound	0.094 "	2.4 mm	80 mA	10 Ohm	85 °C	-20 C	2.52 MHz 19	82 µH	1210	3225 Metric
Panasonic Industrial Automation Sales ELJ-DA680JF	Surface Mount	5 %	2.52 MHz	7.5 MHz	Unshielded	3.2 mm	2.5 mm	0.126 in	0.098 in	Wirewound	0.094 "	2.4 mm	85 mA	9 Ohm	85 °C	-20 C	2.52 MHz 21	68 µH	1210	3225 Metric
Panasonic Industrial Automation Sales ELJ-DA470JF	Surface Mount	5 %	2.52 MHz	10 MHz	Unshielded	3.2 mm	2.5 mm	0.126 in	0.098 in	Wirewound	0.094 "	2.4 mm	0.105 A	5.9 Ohm	85 °C	-20 C	2.52 MHz 21	47 µH	1210	3225 Metric
