0298-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .022-.032 SWAGE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Board Thickness	Board Thickness	Contact Finish Thickness	Contact Finish Thickness	Socket Depth [z]	Socket Depth [z]	Tail Diameter [diameter]	Tail Diameter [diameter]	Tail Type	Termination	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall	Length - Overall
Mill-Max Manufacturing Corp. 0298-2-15-01-06-01-10-0	-55 C	125 °C	1.57 mm	0.062 "	200 Áin	5.08 Ám	3.81 mm	0.15 in	0.026 in	0.66 mm	Standard Tail	Swage	0.06 in	1.52 mm	Tin-Lead	Beryllium Copper	0.051 in	1.3 mm	0.094 "	2.39 mm	0.387 in	9.83 mm
Mill-Max Manufacturing Corp. 0298-2-15-80-06-27-10-0	-55 C	125 °C			30 Áin	0.76 Ám	3.81 mm	0.15 in	0.026 in	0.66 mm	Standard Tail	Swage	0.06 in	1.52 mm	Gold	Beryllium Copper	0.051 in	1.3 mm	0.094 "	2.39 mm	0.387 in	9.83 mm
Mill-Max Manufacturing Corp. 0298-2-15-15-06-14-10-0	-55 C	125 °C			10 Áin	0.25 Ám	3.81 mm	0.15 in	0.026 in	0.66 mm	Standard Tail	Swage	0.06 in	1.52 mm	Gold	Beryllium Copper	0.051 in	1.3 mm	0.094 "	2.39 mm	0.387 in	9.83 mm
Mill-Max Manufacturing Corp. 0298-2-15-15-06-27-10-0	-55 C	125 °C	1.57 mm	0.062 "	30 Áin	0.76 Ám	3.81 mm	0.15 in	0.026 in	0.66 mm	Standard Tail	Swage	0.06 in	1.52 mm	Gold	Beryllium Copper	0.051 in	1.3 mm	0.094 "	2.39 mm	0.387 in	9.83 mm
Mill-Max Manufacturing Corp. 0298-2-15-01-06-14-10-0	-55 C	125 °C	1.57 mm	0.062 "	10 Áin	0.25 Ám	3.81 mm	0.15 in	0.026 in	0.66 mm	Standard Tail	Swage	0.06 in	1.52 mm	Gold	Beryllium Copper	0.051 in	1.3 mm	0.094 "	2.39 mm	0.387 in	9.83 mm

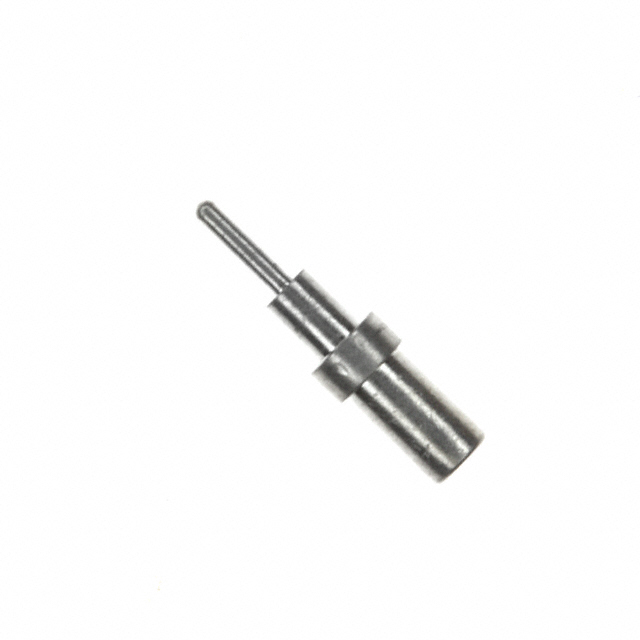

Mill-Max Manufacturing Corp. 0298-2-15-01-06-27-10-0	-55 C	125 °C	1.57 mm	0.062 "	30 Áin	0.76 Ám	3.81 mm	0.15 in	0.026 in	0.66 mm	Standard Tail	Swage	0.06 in	1.52 mm	Gold	Beryllium Copper	0.051 in	1.3 mm	0.094 "	2.39 mm	0.387 in	9.83 mm
Mill-Max Manufacturing Corp. 0298-2-15-80-06-14-10-0	-55 C	125 °C			10 Áin	0.25 Ám	3.81 mm	0.15 in	0.026 in	0.66 mm	Standard Tail	Swage	0.06 in	1.52 mm	Gold	Beryllium Copper	0.051 in	1.3 mm	0.094 "	2.39 mm	0.387 in	9.83 mm
