60Dx Series Series

Manufacturer: Renesas Electronics Corporation

Catalog

IGBT FOR INVERTER APPLICATIONS

Part	Test Condition	Operating Temperature	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Gate Charge	Mounting Type	Package / Case	Switching Energy	Vce(on) (Max) @ Vge, Ic	Current - Collector (Ic) (Max) [Max]	IGBT Type	Td (on/off) @ 25°C [custom]	Td (on/off) @ 25°C [custom]	Power - Max [Max]	Reverse Recovery Time (trr)	Vce(on) (Max) @ Vge, Ic [Max]	Td (on/off) @ 25°C

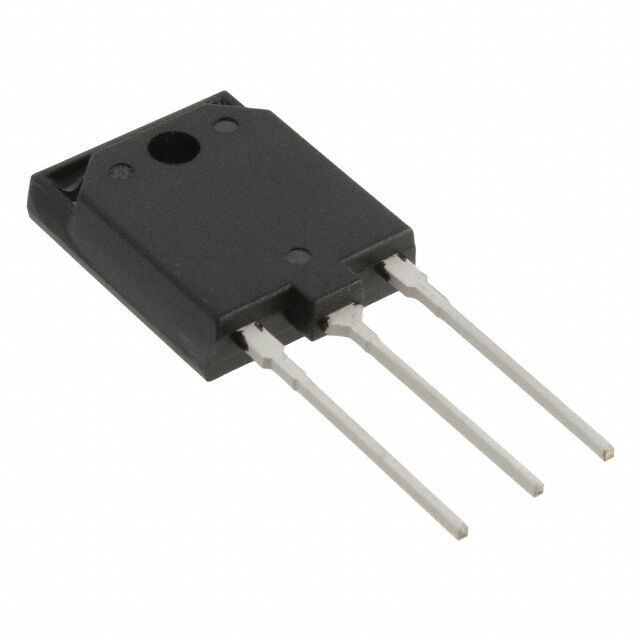

Renesas Electronics Corporation RJH60D6DPM-00#T1	5 Ohm 15 V 40 A 300 V	150 °C	600 V	TO-3PFM	104 nC	Through Hole	TO-220-3 Full Pack	600 µJ 850 µJ	2.2 V	80 A	Trench	50 ns	160 ns	50 W

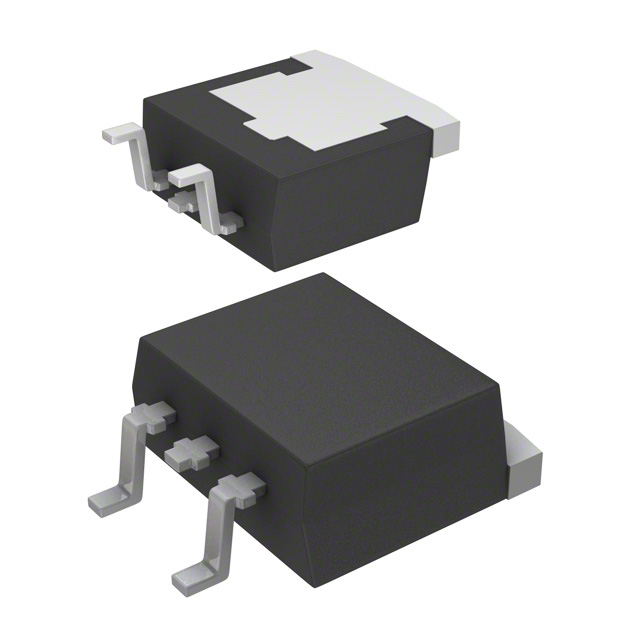

Renesas Electronics Corporation RJH60D1DPE-00#J3	5 Ohm 10 A 15 V 300 V	150 °C	600 V		13 nC	Surface Mount	SC-83	100 µJ 130 µJ	2.5 V	20 A	Trench	30 ns	42 ns	52 W

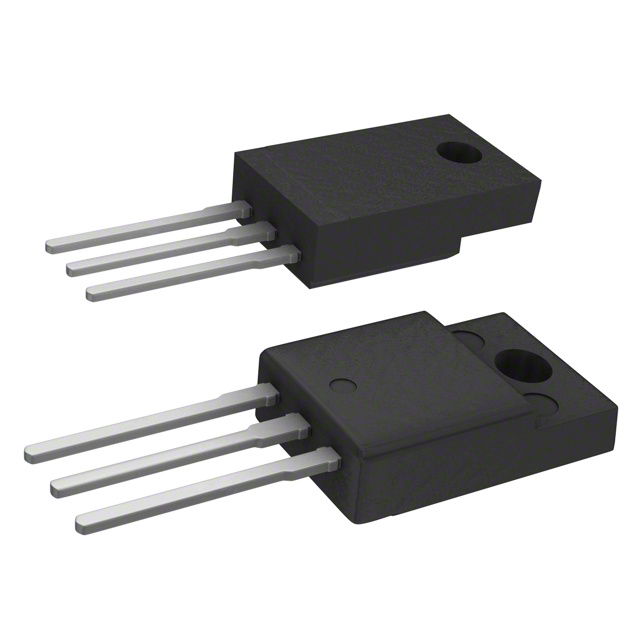

Renesas Electronics Corporation RJH60D1DPP-E0#T2	5 Ohm 10 A 15 V 300 V	150 °C	600 V	TO-220FP	13 nC	Through Hole	TO-220-3 Full Pack	100 µJ 130 µJ	2.5 V	20 A	Trench	30 ns	42 ns	30 W	70 ns
Renesas Electronics Corporation RJH60D3DPP-M0#T2	5 Ohm 15 V 17 A 300 V	150 °C	600 V	TO-220FL	37 nC	Through Hole	TO-220-3 Full Pack	200 µJ 210 µJ	2.2 V	35 A	Trench	35 ns	80 ns	40 W

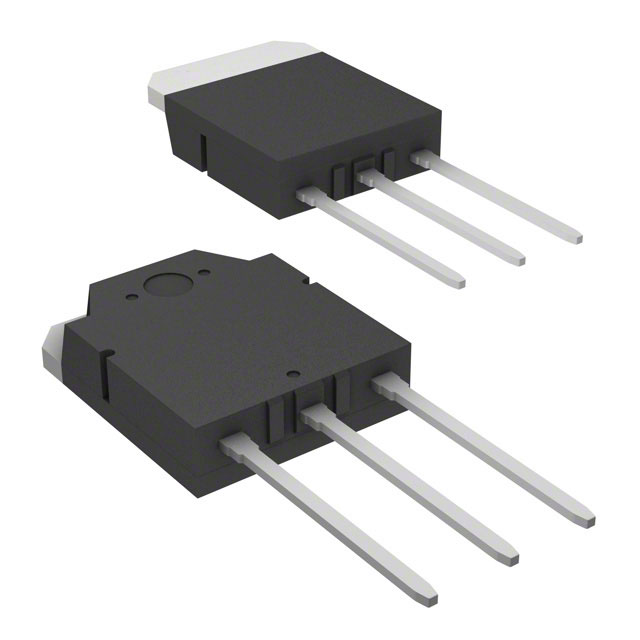

Renesas Electronics Corporation RJH60D6DPK-00#T0	5 Ohm 15 V 40 A 300 V	150 °C	600 V	TO-3P	104 nC	Through Hole	SC-65-3 TO-3P-3	600 µJ 850 µJ	2.2 V	80 A	Trench	50 ns	160 ns	260 W
Renesas Electronics Corporation RJH60D7DPM-00#T1	5 Ohm 15 V 50 A 300 V	150 °C	600 V	TO-3PFM	130 nC	Through Hole	TO-220-3 Full Pack	1.1 mJ 600 µJ	2.2 V	90 A	Trench	60 ns	190 ns	55 W

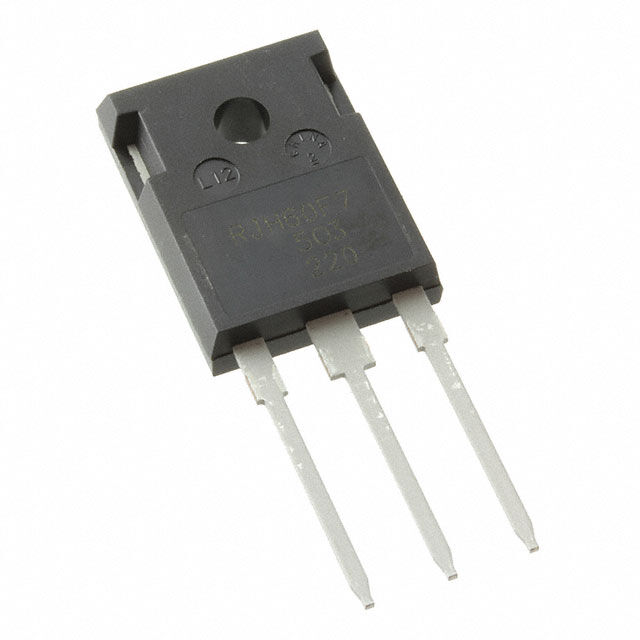

Renesas Electronics Corporation RJH60D5BDPQ-E0#T2	5 Ohm 15 V 37 A 300 V	150 °C	600 V	TO-247	78 nC	Through Hole	TO-247-3	400 µJ 810 µJ	2.2 V	75 A	Trench	50 ns	130 ns	200 W	25 ns
Renesas Electronics Corporation RJH60D2DPE-00#J3	5 Ohm 12 A 15 V 300 V	150 °C	600 V		19 nC	Surface Mount	SC-83	100 µJ 160 µJ		25 A	Trench	32 ns	85 ns	63 W		2.2 V
Renesas Electronics Corporation RJH60D2DPP-E0#T2
Renesas Electronics Corporation RJP60D0DPE-00#J3	5 Ohm 15 V 22 A 300 V	150 °C	600 V		45 nC	Surface Mount	SC-83		2.2 V	45 A				122 W			35 ns 90 ns
