PMG-20 Series

Catalog

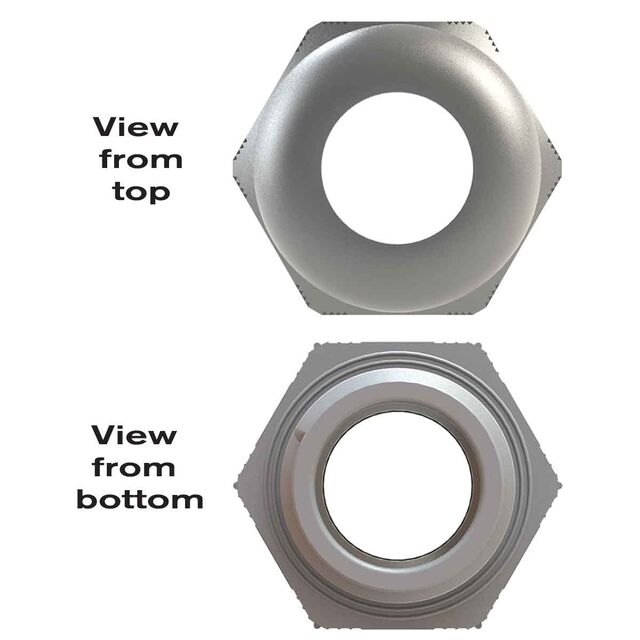

CABLE GLAND 5-9.02MM M20

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Panel Hole Size	Panel Hole Size	Includes	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Color	Ingress Protection	Type	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Length	Thread Length	Outside Cable Diameter (Max)	Outside Cable Diameter (Min)	Outside Cable Diameter (Min)	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
SAB North America PMG-20R	0.197 in	5 mm	20 mm	0.787 in	Locknut	M20x1.5	-20 ░C	100 °C	Gray	IP68 - Dust Tight Waterproof	Cable Gland	9.02 mm	0.355 in	0.394 in	10 mm
SAB North America PMG-20RC			20 mm	0.787 in	Locknut	M20x1.5	-20 ░C	100 °C	Gray	IP68 - Dust Tight Waterproof	Cable Gland		0.473 in	0.394 in	10 mm	12.01 mm	7 mm	0.276 in
SAB North America PMG-20C			20 mm	0.787 in	Locknut	M20x1.5	-20 ░C	100 °C	Gray	IP68 - Dust Tight Waterproof	Cable Gland		0.552 in	0.394 in	10 mm	14.02 mm			10 mm	0.394 "
