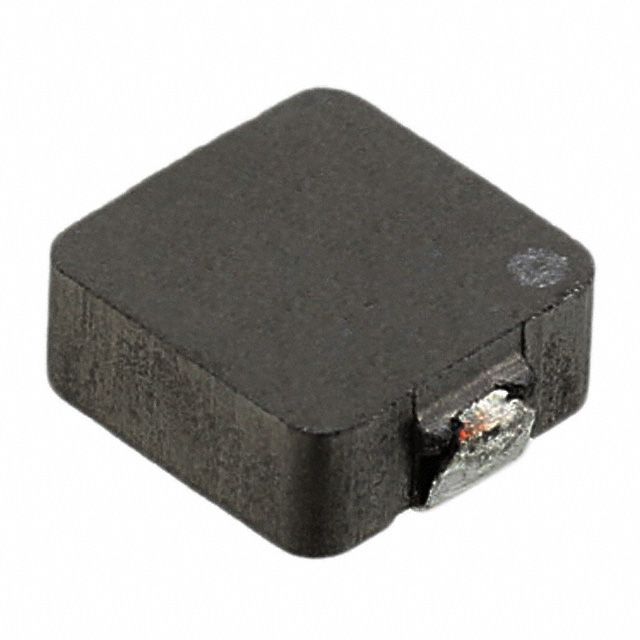

MPCH0730 Series
Manufacturer: KEMET
Beta
⌘K
FIXED IND 120NH 31A 0.65MOHM SMD
| Part | Inductance Frequency - Test | DC Resistance (DCR) | Current Rating (Amps) | Inductance | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Shielding | Current - Saturation (Isat) | Material - Core |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 100 kHz | 0.65 mOhm | 31 A | 120 nH | Surface Mount | 0.315 in | 0.264 " | 6.7 mm | 8 mm | Nonstandard | 125 °C | -40 C | 20 % | 0.118 " | 3 mm | Shielded | 32 A | Metal Composite |
