WP710 Series

Catalog

LED GREEN CLEAR T-1 T/H

...

Part	Lens Transparency	Package / Case	Configuration	Wavelength - Dominant	Millicandela Rating	Viewing Angle	Supplier Device Package	Lens Color	Wavelength - Peak	Height (Max) [z]	Lens Size	Lens Size	Current - Test	Lens Style	Size / Dimension [diameter]	Voltage - Forward (Vf) (Typ)	Color	Mounting Type	Orientation	Wavelength	Type	Radiant Intensity (Ie) Min @ If	Operating Temperature [Max]	Operating Temperature [Min]	Current - DC Forward (If) (Max)

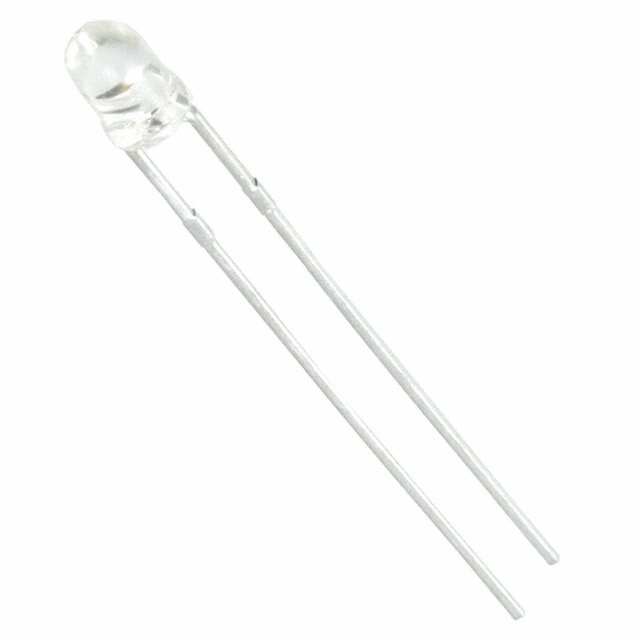

Kingbright WP710A10ZGC/G	Clear	Radial	Standard	525 nm	14000 mcd	34 °	T-1	Colorless	520 nm	5.9 mm	3 mm	T-1	20 mA	Round with Domed Top	2.9 mm	3.2 V	Green	Through Hole
Kingbright WP710A10PGC	Clear	Radial	Standard	557 nm	12 mcd	34 °	T-1	Colorless	557 nm	5.9 mm	3 mm	T-1	20 mA	Round with Domed Top	2.9 mm	2.25 V	Green	Through Hole

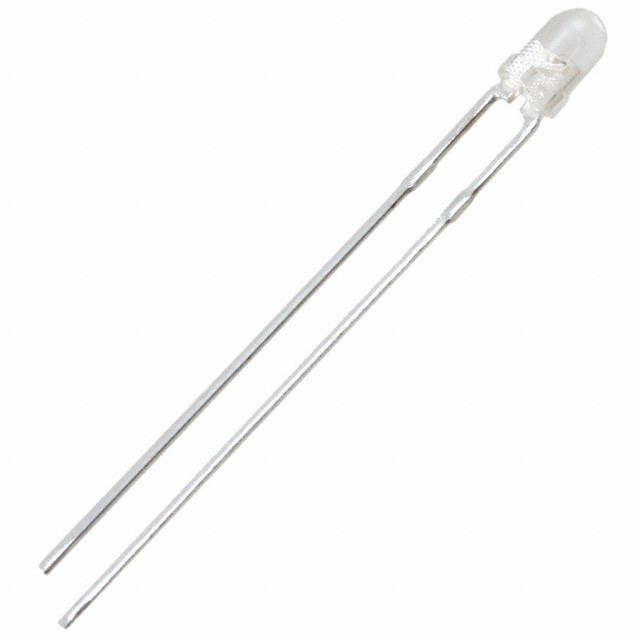

Kingbright WP710A10SEC/J3	Clear	Radial	Standard	625 nm	5300 mcd	30 °	T-1	Colorless	640 nm	5.9 mm	3 mm	T-1	20 mA	Round with Domed Top	2.9 mm	2.2 V	Red	Through Hole
Kingbright WP710A10LVBC/D	Clear	Radial	Standard	470 nm	450 mcd	20 °	T-1 (3mm)	Colorless	465 nm	5.9 mm	3 mm	T-1	2 mA	Round with Domed Top	2.9 mm	2.65 V	Blue	Through Hole

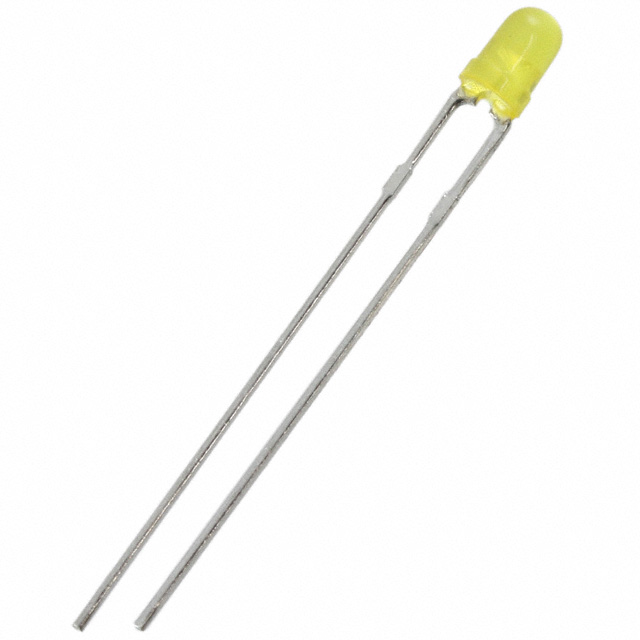

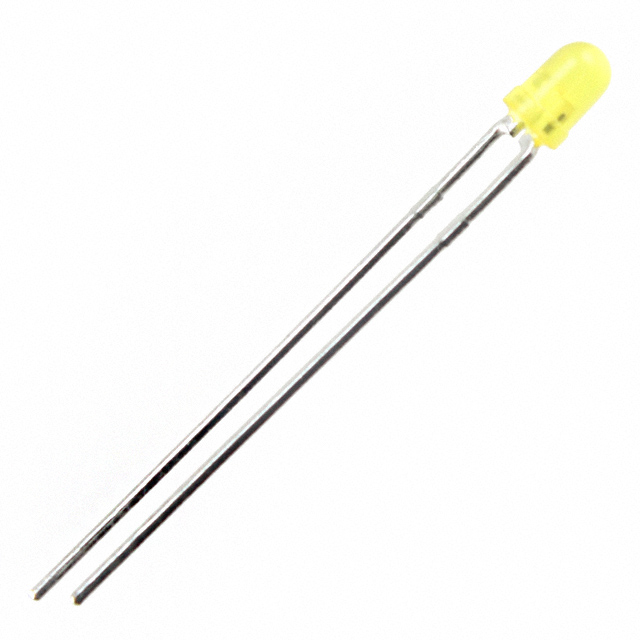

Kingbright WP710A10YD14V	Diffused	Radial	Standard	588 nm	11 mcd	40 °	T-1	Yellow	590 nm	5.9 mm	3 mm	T-1	10.5 mA	Round with Domed Top	2.9 mm		Yellow	Through Hole
Kingbright WP710A10SYCK/J3	Clear	Radial	Standard	590 nm	2600 mcd 3000 mcd	30 ° 34 °	T-1	Colorless	590 nm	5.9 mm	3 mm	T-1	20 mA	Round with Domed Top	2.9 mm	2 V	Yellow	Through Hole

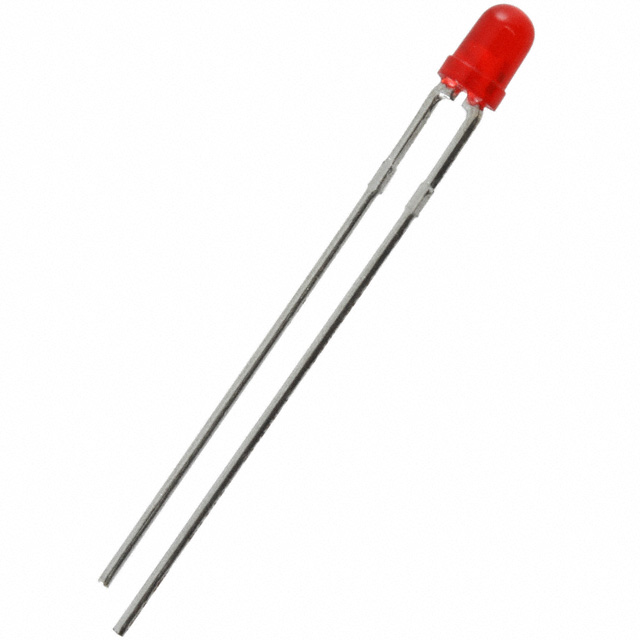

Kingbright WP710A10LSRD	Diffused	Radial	Standard	640 nm	6 mcd	40 °	T-1	Red	655 nm	5.9 mm	3 mm	T-1	2 mA	Round with Domed Top	2.9 mm	1.65 V	Red	Through Hole

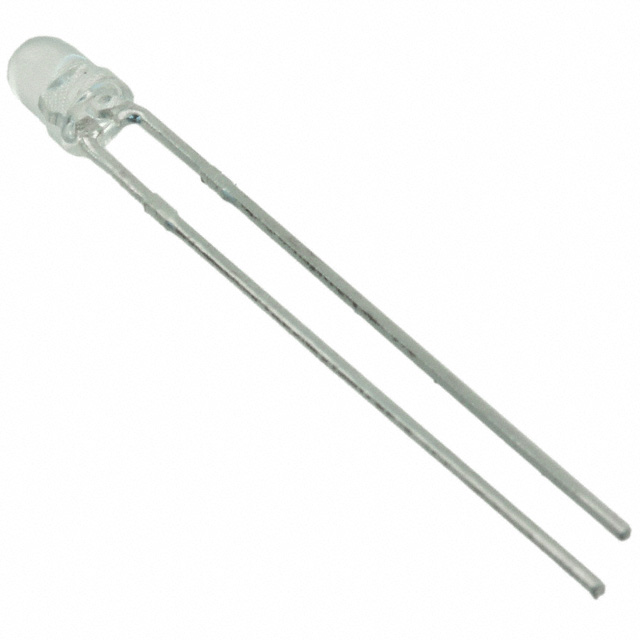

Kingbright WP710A10F3C		Radial				34 °												Through Hole	Top View	940 nm	Infrared (IR)	10 mW/sr	85 C	-40 ¯C	50 mA
Kingbright WP710A10LYD	Diffused	Radial	Standard	588 nm	1.5 mcd	40 °	T-1	Yellow	590 nm	5.9 mm	3 mm	T-1	2 mA	Round with Domed Top	2.9 mm	1.85 V	Yellow	Through Hole

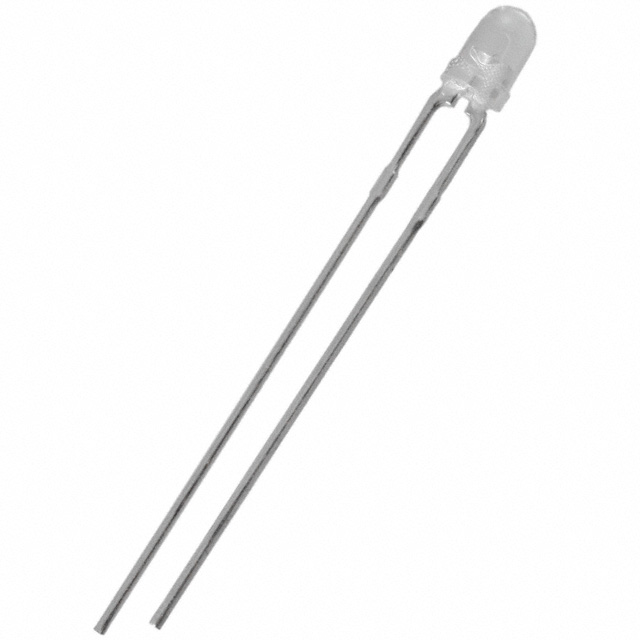

Kingbright WP710A10QBC/G	Clear	Radial	Standard	465 nm	2800 mcd	20 °	T-1	Colorless	461 nm	5.9 mm	3 mm	T-1	20 mA	Round with Domed Top	2.9 mm	3.3 V	Blue	Through Hole
