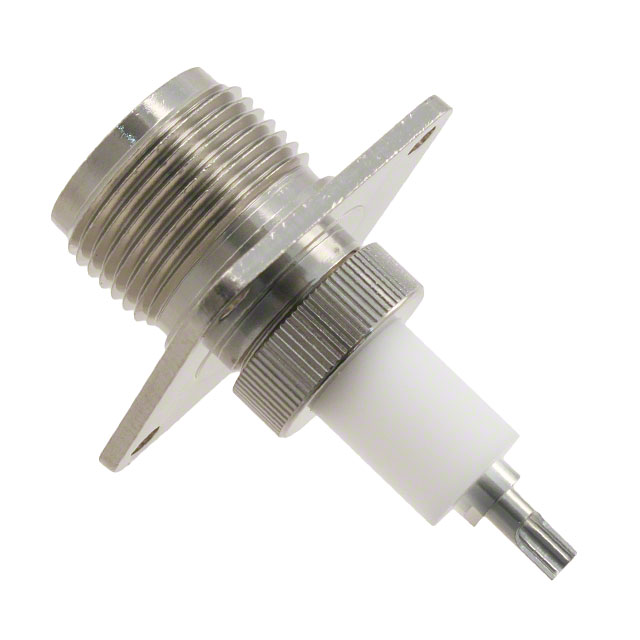

082-805 Series
Manufacturer: Amphenol RF
Beta
⌘K
CONN HN JACK STR 50 OHM SOLDER
| Part | Mounting Feature | Impedance | Features | Voltage Rating | Center Contact Plating | Body Material | Number of Ports | Operating Temperature [Min] | Operating Temperature [Max] | Shield Termination | Housing Color | Ingress Protection | Connector Type | Contact Termination | Frequency - Max [Max] | Dielectric Material | Center Contact Material | Body Finish | Mating Cycles | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol RF | Flange | 50 Ohms | Extended Insulation | 1500 V | Silver | Brass | 1 | -65 ░C | 165 °C | Solder | Silver | Weatherproof | Female Socket Jack | Solder Cup | 4 GHz | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Nickel | 500 | HN Type |
