40.52.7 Series

Catalog

RELAY GEN PURPOSE DPDT 8A 5V

Part	Coil Resistance	Operate Time	Relay Type	Mounting Type	Coil Type	Approval Agency	Coil Current	Contact Material	Must Release Voltage	Release Time	Contact Form	Termination Style	Seal Rating	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Coil Voltage	Switching Voltage [Max]	Must Operate Voltage	Load - Max Switching
Finder Relays, Inc. 40.52.7.005.0000	50 Ohms	12 ms	General Purpose	Socketable	Non Latching	CCC CSA cURus EAC ENEC RINA VDE	0.1 A	Silver Nickel (AgNi)	1 VDC	4 ms	DPDT (2 Form C)	Plug In	Sealed - Flux Protection	8 A	85 °C	-40 C	5 VDC	400 VAC	3.7 VDC	3200 VA
Finder Relays, Inc. 40.52.7.012.0001	288 Ohms	12 ms	General Purpose	Socketable	Non Latching	CCC CSA cURus EAC ENEC RINA VDE	42 mA	Silver Nickel (AgNi)	2.4 VDC	4 ms	DPDT (2 Form C)	Plug In		8 A	85 °C	-40 C	12 VDC	400 VAC	8.8 VDC	3200 VA
Finder Relays, Inc. 40.52.7.024.5000	1.15 kOhms	12 ms	General Purpose	Socketable	Non Latching	CCC CSA cURus EAC ENEC RINA VDE	21 mA	Silver Nickel (AgNi)	4.8 VDC	4 ms	DPDT (2 Form C)	Plug In	Sealed - Flux Protection	8 A	85 °C	-40 C	24 VDC	400 VAC	17.5 VDC	3200 VA
Finder Relays, Inc. 40.52.7.048.0001	4.8 kOhms	12 ms	General Purpose	Socketable	Non Latching	CCC CSA cURus EAC ENEC RINA VDE	10 mA	Silver Nickel (AgNi)	9.6 VDC	4 ms	DPDT (2 Form C)	Plug In		8 A	85 °C	-40 C	48 VDC	400 VAC	35 VDC	3200 VA
Finder Relays, Inc. 40.52.7.024.0001	1.15 kOhms	12 ms	General Purpose	Socketable	Non Latching	CCC CSA cURus EAC ENEC RINA VDE	21 mA	Silver Nickel (AgNi)	4.8 VDC	4 ms	DPDT (2 Form C)	Plug In		8 A	85 °C	-40 C	24 VDC	400 VAC	17.5 VDC	3200 VA

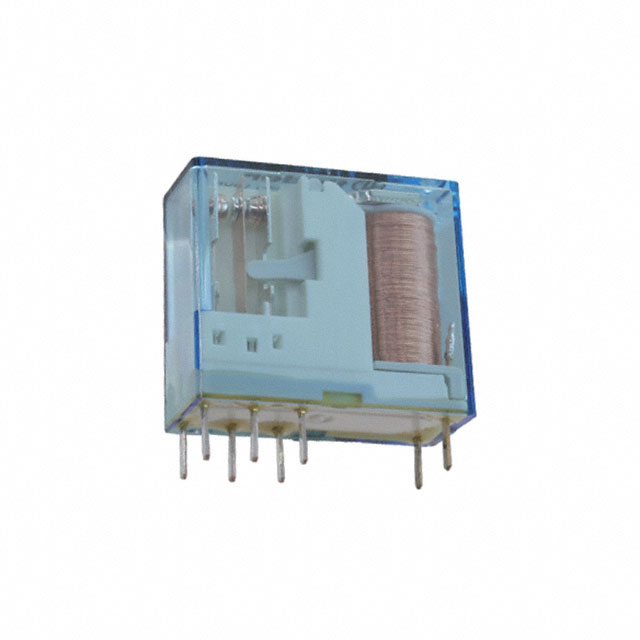

Finder Relays, Inc. 40.52.7.012.0000	288 Ohms	7 ms	General Purpose	Socketable	Non Latching	CCC CSA cURus EAC ENEC RINA VDE	42 mA	Silver Nickel (AgNi)	2.4 VDC	3 ms	DPDT (2 Form C)	Plug In	Sealed - Flux Protection	8 A	85 °C	-40 C	12 VDC	400 VAC	8.8 VDC	3200 VA
Finder Relays, Inc. 40.52.7.024.0301	1.15 kOhms	12 ms	General Purpose	Socketable	Non Latching	CCC CSA cURus EAC ENEC RINA VDE	21 mA	Silver Nickel (AgNi)	4.8 VDC	4 ms	DPST-NO (2 Form A)	Plug In		8 A	85 °C	-40 C	24 VDC	400 VAC	17.5 VDC	3200 VA
Finder Relays, Inc. 40.52.7.018.0000	650 Ohms	12 ms	General Purpose	Socketable	Non Latching	CCC CSA cURus EAC ENEC RINA VDE	27.7 mA	Silver Nickel (AgNi)	3.6 VDC	4 ms	DPDT (2 Form C)	Plug In	Sealed - Flux Protection	8 A	85 °C	-40 C	18 VDC	400 VAC	13.2 VDC	3200 VA
