VMS-200 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 12V 200W

Part	Mounting Type	Features	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Isolation	Voltage - Output 1	Approval Agency	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Power (Watts)	Standard Number	Number of Outputs	Applications

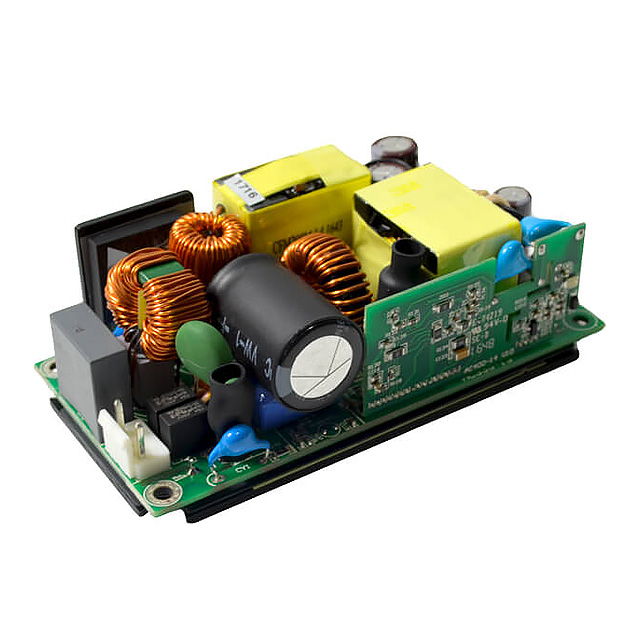

CUI Inc. VMS-200-12	Chassis Mount	Universal Input	264 VAC	90 VAC	4000 V	12 V	CB Scheme EN IEC TUV UL	Open Frame	101.6 mm	50.8 mm	2 in	37.6 mm	4 "	1.48 "	92 %	80 ¯C	-20 °C	16.67 A	200 Watts	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	1	Medical

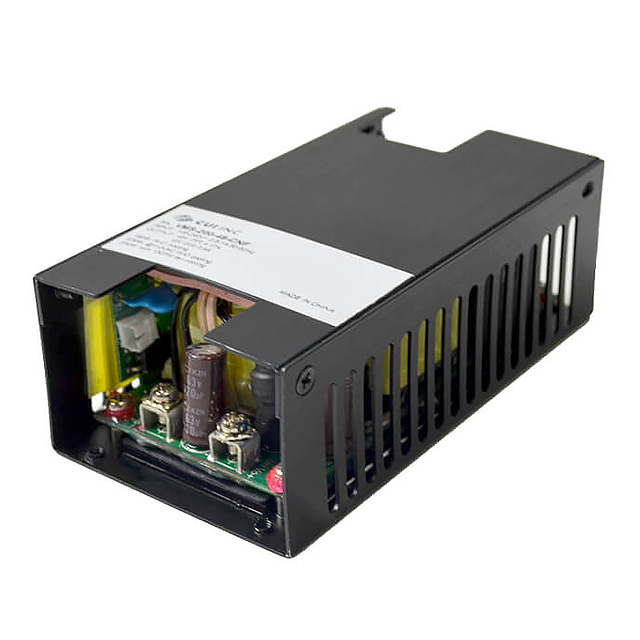

CUI Inc. VMS-200-12-CNF	Chassis Mount	Universal Input	264 VAC	90 VAC	4000 V	12 V	CB Scheme EN IEC TUV UL	Enclosed	117 mm	62 mm	2.44 "	40 mm	4.61 "	1.58 in	92 %	80 ¯C	-20 °C	16.67 A	200 Watts	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	1	Medical
CUI Inc. VMS-200-48-CNF	Chassis Mount	Universal Input	264 VAC	90 VAC	4000 V	48 V	CB Scheme EN IEC TUV UL	Enclosed	117 mm	62 mm	2.44 "	40 mm	4.61 "	1.58 in	93 %	80 ¯C	-20 °C	4.17 A	200 Watts	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	1	Medical
CUI Inc. VMS-200-24	Chassis Mount	Universal Input	264 VAC	90 VAC	4000 V	24 V	CB Scheme EN IEC TUV UL	Open Frame	101.6 mm	50.8 mm	2 in	37.6 mm	4 "	1.48 "	93.5 %	80 ¯C	-20 °C	8.33 A	200 Watts	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	1	Medical
CUI Inc. VMS-200-24-CNF	Chassis Mount	Universal Input	264 VAC	90 VAC	4000 V	24 V	CB Scheme EN IEC TUV UL	Enclosed	117 mm	62 mm	2.44 "	40 mm	4.61 "	1.58 in	93.5 %	80 ¯C	-20 °C	8.33 A	200 Watts	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	1	Medical
CUI Inc. VMS-200-48	Chassis Mount	Universal Input	264 VAC	90 VAC	4000 V	48 V	CB Scheme EN IEC TUV UL	Open Frame	101.6 mm	50.8 mm	2 in	37.6 mm	4 "	1.48 "	93 %	80 ¯C	-20 °C	4.17 A	200 Watts	55011 Class B; 60601-1; 61000-3-2; 61000-3-3	1	Medical
