PNF10 Series

Catalog

RING TONGUE TERMINAL, M5, #10, 10 AWG, 6 MM², PNF SERIES, YELLOW

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Material - Insulation	Color	Insulation	Length - Overall	Length - Overall	Stud/Tab Size	Features	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Terminal Type	Thickness	Thickness	Mounting Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Material	Insulation Diameter [diameter]	Width - Outer Edges	Width - Outer Edges	Length - Overall [x]	Length - Overall [x]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Tongue Inside Opening [diameter]	Tongue Inside Opening [diameter]	Width - Outer Edges [x]	Width - Outer Edges [x]
Panduit Corp PNF10-10R-D	5.84 mm	0.23 in	Nylon Polyamide (PA)	Yellow	Insulated	1.06 in	26.92 mm	10 Stud	Serrated Termination	Crimp	10 AWG	12 AWG	Tin	Circular	0.04 in	1.02 mm	Free Hanging (In-Line)	0.37 in	9.4 mm	Copper
Panduit Corp PNF10-8R-D	0.225 "		Nylon Polyamide (PA)	Yellow	Insulated	1.06 in	26.92 mm	8 Stud	Serrated Termination	Crimp	10 AWG	12 AWG	Tin	Circular	0.04 in	1.02 mm	Free Hanging (In-Line)	0.37 in	9.4 mm	Copper	5.72 mm

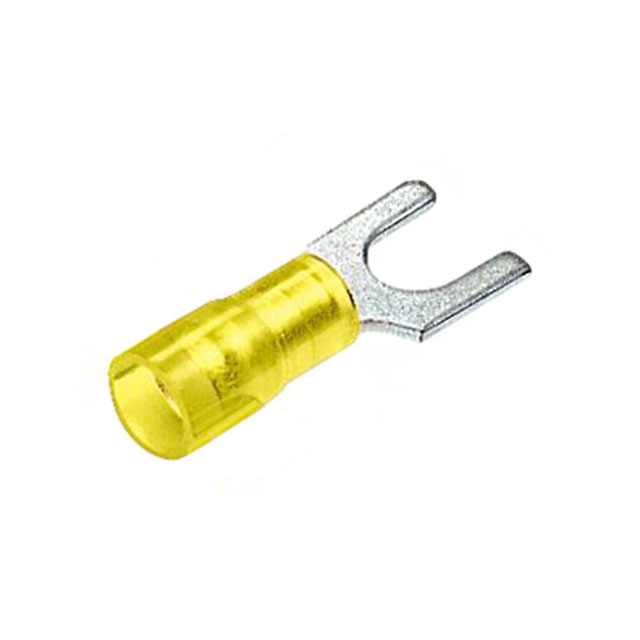

Panduit Corp PNF10-6F-2K	0.225 "		Nylon Polyamide (PA)	Yellow	Insulated			6 Stud	Serrated Termination	Crimp	10 AWG	12 AWG		Standard			Free Hanging (In-Line)				5.72 mm	7.87 mm	0.31 in	1.01 "	25.65 mm
Panduit Corp PNF10-10LF-2K			Nylon Polyamide (PA)	Yellow	Insulated			10 Stud	Serrated Termination	Crimp	10 AWG	12 AWG	Tin	Snap Spring			Free Hanging (In-Line)	0.34 in	8.64 mm	Copper				1.05 in	26.67 mm	4.83 mm	0.19 in	5.72 mm	0.135 "	0.225 in	3.43 mm
Panduit Corp PNF10-8LF-2K			Nylon Polyamide (PA)	Yellow	Insulated			8 Stud	Serrated Termination	Crimp	10 AWG	12 AWG	Tin	Snap Spring			Free Hanging (In-Line)			Copper				1.05 in	26.67 mm	4.06 mm	0.16 in	5.72 mm	0.135 "	0.225 in	3.43 mm
Panduit Corp PNF10-8R-L	0.225 "		Nylon Polyamide (PA)	Yellow	Insulated	1.06 in	26.92 mm	8 Stud	Serrated Termination	Crimp	10 AWG	12 AWG	Tin	Circular	0.04 in	1.02 mm	Free Hanging (In-Line)	0.37 in	9.4 mm	Copper	5.72 mm
Panduit Corp PNF10-10F-D	0.225 "		Nylon Polyamide (PA)	Yellow	Insulated			10 Stud	Serrated Termination	Crimp	10 AWG	12 AWG	Tin	Standard			Free Hanging (In-Line)	0.37 in	9.4 mm	Copper	5.72 mm			1.04 in	26.42 mm	5.08 mm	0.2 in

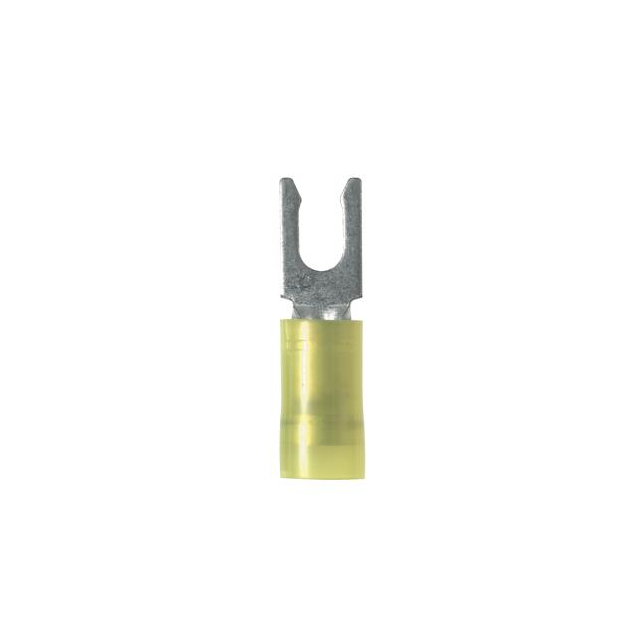

Panduit Corp PNF10-10LF-D	0.225 "		Nylon Polyamide (PA)	Yellow	Insulated			10 Stud	Serrated Termination	Crimp	10 AWG	12 AWG	Tin	Snap Spring			Free Hanging (In-Line)	0.34 in	8.64 mm	Copper	5.72 mm			1.05 in	26.67 mm	4.83 mm	0.19 in

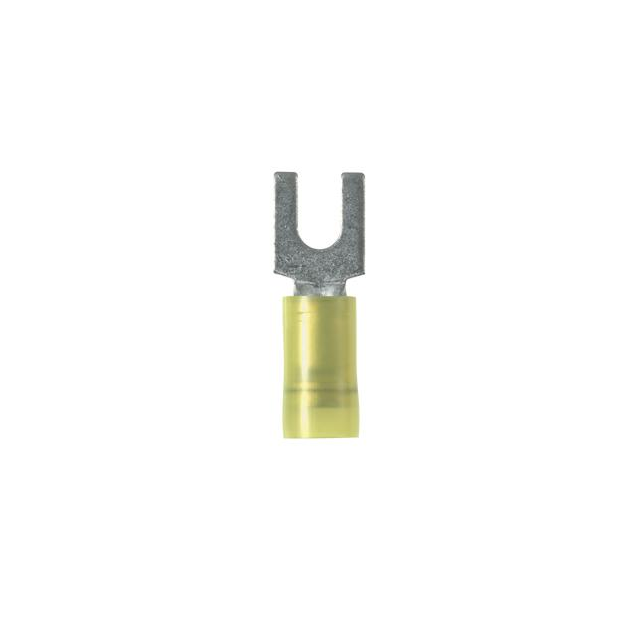

Panduit Corp PNF10-8F-D	0.225 "		Nylon Polyamide (PA)	Yellow	Insulated			8 Stud	Serrated Termination	Crimp	10 AWG	12 AWG	Tin	Standard			Free Hanging (In-Line)	0.37 in	9.4 mm	Copper	5.72 mm			1.02 in	25.91 mm							0.17 in	4.32 mm
Panduit Corp PNF10-38R-2K	5.84 mm	0.23 in	Nylon Polyamide (PA)	Yellow	Insulated	1.29 in	32.77 mm	0.375 Stud	Serrated Termination	Crimp	10 AWG	12 AWG	Tin	Circular	0.04 in	1.02 mm	Free Hanging (In-Line)			Copper														14.73 mm	0.58 in
