YMC04 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

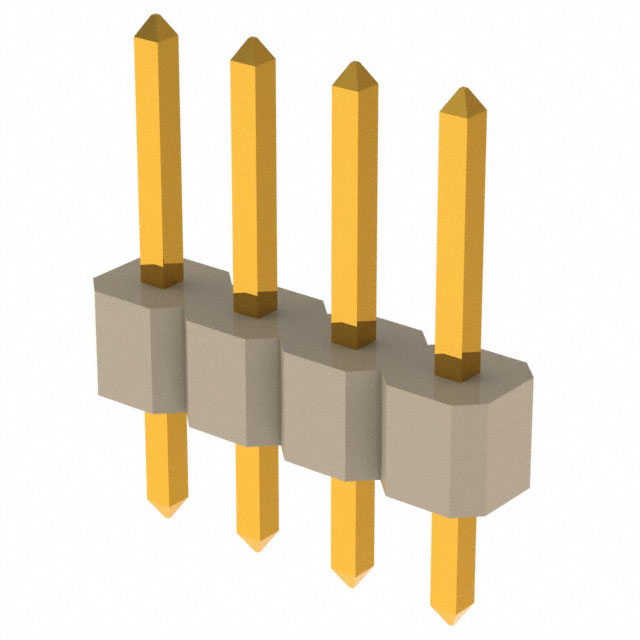

CONN HEADER VERT 4POS 2.54MM
| Part | Connector Type | Overall Contact Length | Contact Finish Thickness - Post | Contact Type | Shrouding | Style | Contact Length - Mating | Contact Finish Thickness - Mating | Number of Positions Loaded | Number of Rows | Contact Material | Termination | Material Flammability Rating | Operating Temperature (Max) | Operating Temperature (Min) | Fastening Type | Contact Finish - Post | Insulation Height | Pitch - Mating | Insulation Material | Insulation Color | Number of Positions | Contact Finish - Mating | Current Rating | Contact Length - Post | Contact Shape | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Breakaway Header | 0.45 in | 10 µin | Male Pin | Unshrouded | Board Board or Cable | 0.23 in | 30 µin | All | 1 | Beryllium Copper | Solder | UL94 V-0 | 250 °C | -65 °C | Push-Pull | Gold | 0.1 in | 0.1 in | Polyetheretherketone (PEEK) | Tan | 4 | Gold | 3 A | 0.12 in | Square | Through Hole |
