FOD8173 Series

Catalog

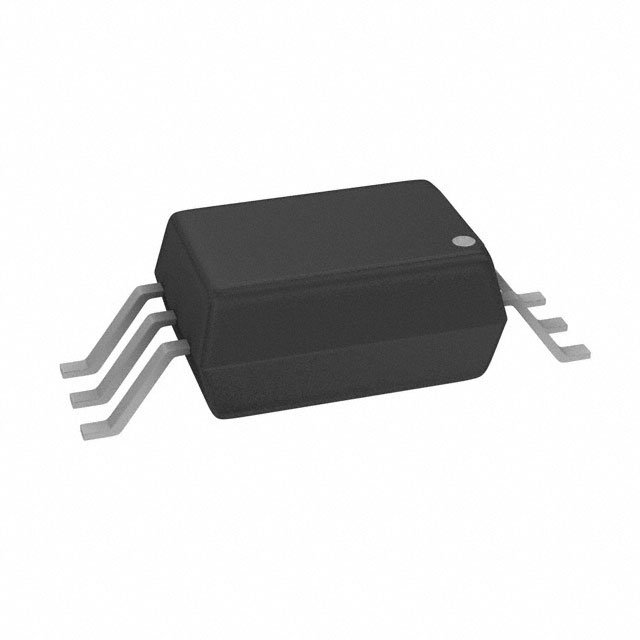

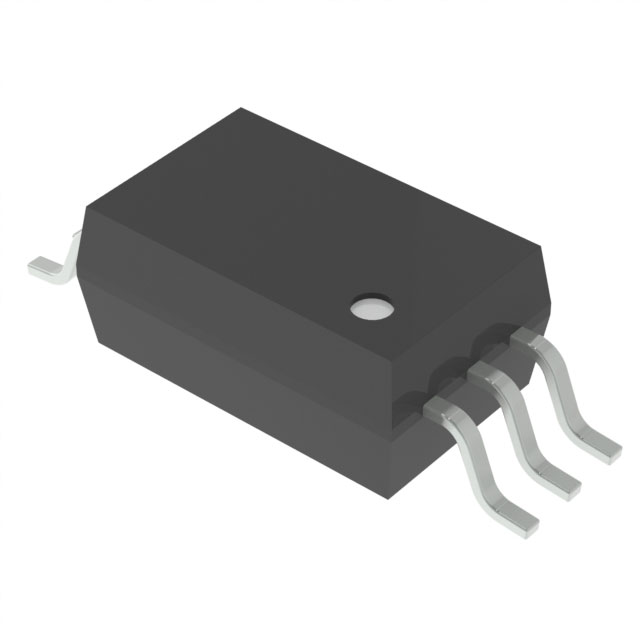

3.3 V/5 V, 20 MBIT/SEC, LOGIC GATE OPTOCOUPLER IN STRETCHED BODY SOP 6-PIN

Part	Voltage - Forward (Vf) (Typ)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplier Device Package	Current - Output / Channel [custom]	Number of Channels	Package / Case [y]	Package / Case	Package / Case [x]	Common Mode Transient Immunity (Min) [Min]	Data Rate	Output Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Input Type	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - DC Forward (If) (Max) [Max]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]
ON Semiconductor FOD8173T	1.35 V	7 ns	7 ns	6-SOIC	10 mA	1	6.8 mm	6-SOIC	0.268 in	20 kV/µs	20 Mbps	Push-Pull Totem Pole	5.5 V	3 V	DC	0	1	100 °C	-40 °C	Surface Mount	20 mA	55 ns	55 ns
ON Semiconductor FOD8173	1.35 V	7 ns	7 ns	6-SOIC	10 mA	1	6.8 mm	6-SOIC	0.268 in	20 kV/µs	20 Mbps	Push-Pull Totem Pole	5.5 V	3 V	DC	0	1	100 °C	-40 °C	Surface Mount	20 mA	55 ns	55 ns
