QADA-50 Series

Manufacturer: Qualtek

Catalog

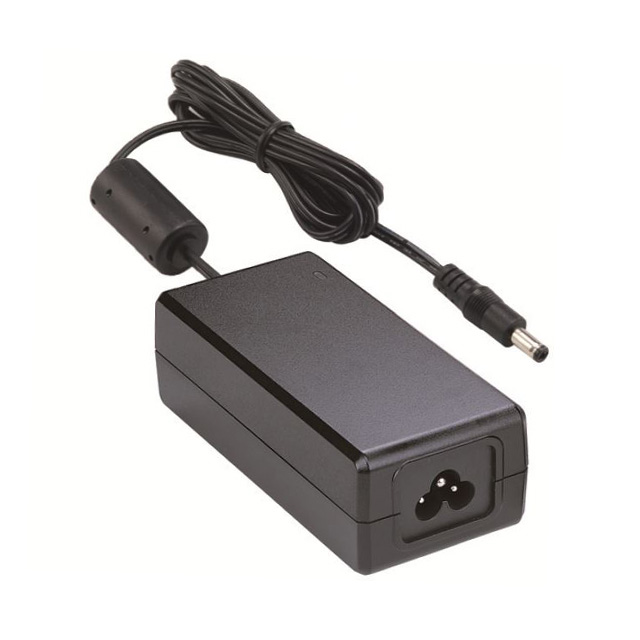

AC/DC DESKTOP ADAPTER 9V 45W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Operating Temperature [Max]	Form	Current - Output (Max)	Output Connector [x]	Output Connector [diameter]	Output Connector	No Load Power Consumption	Voltage - Output	Cord Length	Cord Length	Efficiency	Polarization	Region Utilized	Input Type	Input Connector	Current - Output (Max) [Max]
Qualtek QADA-50-9-1401	100 VAC	240 VAC	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	45 W	40 °C	Desktop (Class I)	5 A	11 mm	2.1 mm 5.5 mm	Barrel Plug	210 mW	9 V	1.5 m	59 in	Level VI	Positive Center	International	Cord (Sold Separately)	IEC 320-C14
Qualtek QADA-50-12-1402	100 VAC	240 VAC	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	50 W	40 °C	Desktop (Class I)		11 mm	2.5 mm 5.5 mm	Barrel Plug	210 mW	12 V	1.5 m	59 in	Level VI	Positive Center	International	Cord (Sold Separately)	IEC 320-C14	4.2 A
Qualtek QADA-50-15-1401	100 VAC	240 VAC	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	50 W	40 °C	Desktop (Class I)		11 mm	2.1 mm 5.5 mm	Barrel Plug	210 mW	15 V	1.5 m	59 in	Level VI	Positive Center	International	Cord (Sold Separately)	IEC 320-C14	3.34 A
Qualtek QADA-50-15-1402	100 VAC	240 VAC	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	50 W	40 °C	Desktop (Class I)		11 mm	2.5 mm 5.5 mm	Barrel Plug	210 mW	15 V	1.5 m	59 in	Level VI	Positive Center	International	Cord (Sold Separately)	IEC 320-C14	3.34 A
