3129-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

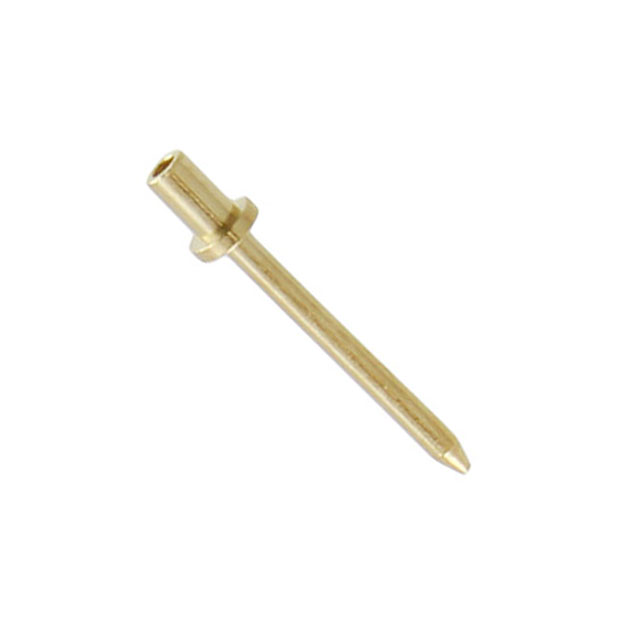

CONN PC PIN CIRC 0.020DIA GOLD
| Part | Terminal Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Termination | Length - Overall [x] | Length - Overall [x] | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Board Thickness | Board Thickness | Terminal Style | Contact Material | Flange Diameter | Flange Diameter | Length - Above Flange | Length - Above Flange [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | PC Pin | 0.89 mm | 0.035 in | Gold | Swage | 7.01 mm | 0.276 " | 0.051 " | 1.3 mm | 0.25 Ám | 10 Áin | Through Hole | 0.79 mm | 0.031 in | Single End | Brass Alloy | 0.05 in | 1.27 mm | 5.46 mm | 0.215 in | 0.02 in | 0.51 mm | Non-Insulated |
 Mill-Max Manufacturing Corp. | PC Pin | 0.89 mm | 0.035 in | Tin-Lead | Swage | 7.01 mm | 0.276 " | 0.051 " | 1.3 mm | 5.08 Ám | 200 Áin | Through Hole | 0.79 mm | 0.031 in | Single End | Brass Alloy | 0.05 in | 1.27 mm | 5.46 mm | 0.215 in | 0.02 in | 0.51 mm | Non-Insulated |
Mill-Max Manufacturing Corp. | PC Pin | 0.89 mm | 0.035 in | Gold | Swage | 7.01 mm | 0.276 " | 0.051 " | 1.3 mm | 0.51 µm | 20 µin | Through Hole | 0.79 mm | 0.031 in | Single End | Brass Alloy | 0.05 in | 1.27 mm | 5.46 mm | 0.215 in | 0.02 in | 0.51 mm | Non-Insulated |
Mill-Max Manufacturing Corp. | PC Pin | 0.89 mm | 0.035 in | Gold | Swage | 7.01 mm | 0.276 " | 0.051 " | 1.3 mm | 1.27 µm | 50 µin | Through Hole | 0.79 mm | 0.031 in | Single End | Brass Alloy | 0.05 in | 1.27 mm | 5.46 mm | 0.215 in | 0.02 in | 0.51 mm | Non-Insulated |
