857-029 Series
Manufacturer: EDAC Inc.
Beta
⌘K

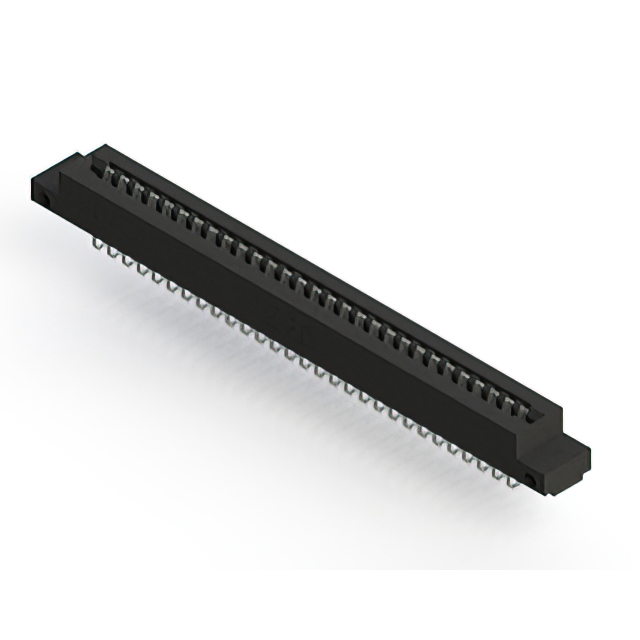

CONN EDGE DUAL FMALE 58POS 0.156
| Part | Card Thickness [Max] | Card Thickness [Min] | Number of Rows [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Mounting Type | Contact Material | Read Out | Number of Positions/Bay/Row | Contact Type | Color | Termination Rows | Pitch | Pitch | Number of Positions | Gender | Contact Finish | Card Type | Material - Insulation | Flange Feature | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 125 °C | -40 C | Solder | Right Angle Through Hole | Copper Alloy | Dual | 29 | Semi Bellows | Black | 1 | 3.96 mm | 0.156 in | 58 | Female | Tin | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | 4-40 Flush Mount Threaded Insert Top Opening | |||||
 EDAC Inc. | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder | Right Angle Through Hole | Copper Alloy | Single | 29 | Semi Bellows | Black | 1 | 3.96 mm | 0.156 in | 29 | Female | Tin | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 1 | ||||||
 EDAC Inc. | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder | Right Angle Through Hole | Copper Alloy | Single | 29 | Semi Bellows | Black | 1 | 3.96 mm | 0.156 in | 29 | Female | Tin | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | Side Mount Opening Unthreaded | 1 | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder | Right Angle Through Hole | Copper Alloy | Single | 29 | Semi Bellows | Black | 1 | 3.96 mm | 0.156 in | 29 | Female | Tin | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | Flush Mount M3 Threaded Insert Top Opening | 1 | |||||
 EDAC Inc. | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder Eyelet(s) | Through Hole | Copper Alloy | Single | 29 | Semi Bellows | Black | 1 | 3.96 mm | 0.156 in | 29 | Female | Gold | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 0.25 Ám | 10 Áin | |||
 EDAC Inc. | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder Eyelet(s) | Through Hole | Copper Alloy | Single | 29 | Semi Bellows | Black | 1 | 3.96 mm | 0.156 in | 29 | Female | Tin | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | Flush Mount Top Opening Unthreaded | 1 | 0.156 " | 3.96 mm | |||
 EDAC Inc. | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder | Through Hole | Copper Alloy | Single | 29 | Semi Bellows | Black | 1 | 3.96 mm | 0.156 in | 29 | Female | Tin | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | Flush Mount Top Opening Unthreaded | 1 | 0.128 " | 3.25 mm | |||
 EDAC Inc. | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 125 °C | -40 C | Solder Eyelet(s) | Through Hole | Copper Alloy | Dual | 29 | Semi Bellows | Black | 1 | 3.96 mm | 0.156 in | 58 | Female | Gold | Non Specified - Dual Edge | Polyphenylene Sulfide (PPS) | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Wire Wrap | Through Hole | Copper Alloy | Single | 29 | Semi Bellows | Black | 1 | 3.96 mm | 0.156 in | 29 | Female | Gold | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | Flush Mount Top Opening Unthreaded | 1 | 0.128 " | 3.25 mm | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 125 °C | -40 C | Solder Eyelet(s) | Through Hole | Copper Alloy | Single | 29 | Semi Bellows | Black | 1 | 3.96 mm | 0.156 in | 29 | Female | Gold | Non Specified - Single Edge | Polyphenylene Sulfide (PPS) | 1 | 0.25 Ám | 10 Áin |
