140-503 Series

Manufacturer: EDAC Inc.

Catalog

CONN RCPT HSG 3POS 2.00MM

Part	Note	Fastening Type	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Features	Contact Type	Color	Mounting Type	Number of Rows	Connector Type	Pitch [x]	Pitch [x]	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Voltage Rating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Shrouding	Current Rating (Amps)	Termination	Contact Shape	Insulation Color	Contact Material	Contact Finish - Post	Style	Insulation Height	Insulation Height

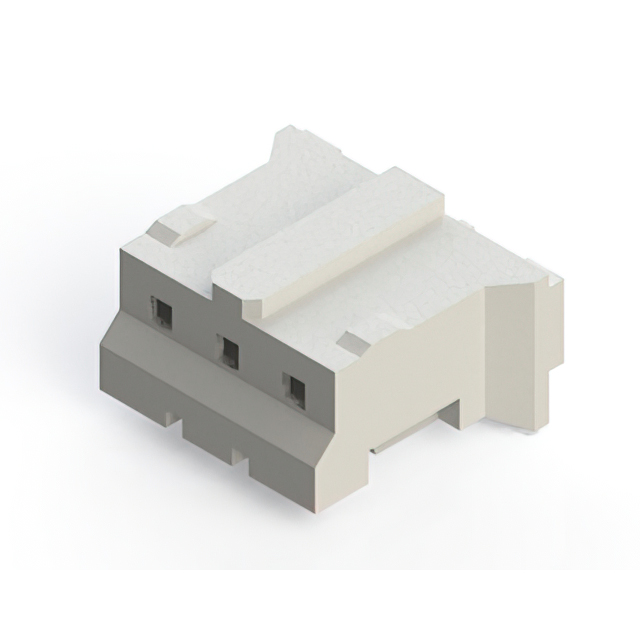

EDAC Inc. 140-503-210-011	Contacts Not Included	Detent Lock	Nylon 6/6 Polyamide (PA66)	85 °C	-25 °C	Crimp	Polarizing Key	Female Socket	Natural	Free Hanging (In-Line)	1	Receptacle	0.079 in	2 mm
EDAC Inc. 140-503-415-101		Detent Lock	Nylon 6/6 Polyamide (PA66)	105 ░C	-40 C			Male Pin		Through Hole	1	Header			6.1 mm	0.24 in	UL94 V-0	100 VAC	All	0.079 "	2 mm	Shrouded - 4 Wall	2 A	Solder	Square	Natural	Brass	Tin	Board to Cable/Wire

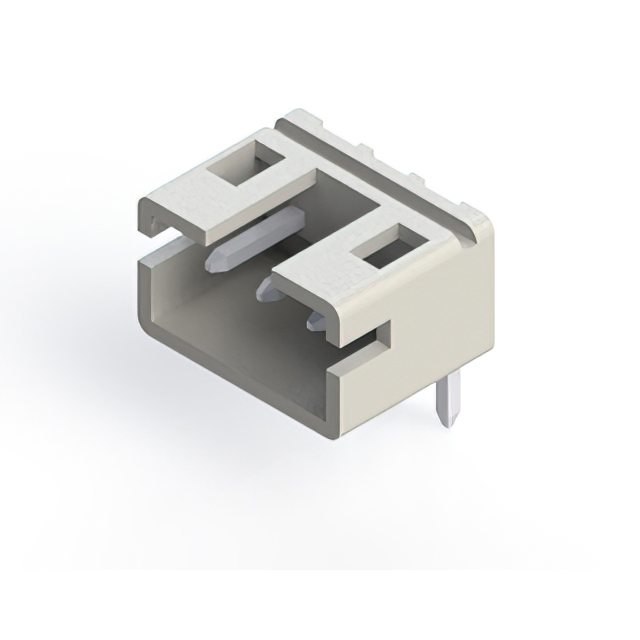

EDAC Inc. 140-503-415-100		Detent Lock	Nylon 6/6 Polyamide (PA66)	105 ░C	-40 C			Male Pin		Right Angle Through Hole	1	Header			4.7 mm	0.185 in	UL94 V-0	100 VAC	All	0.079 "	2 mm	Shrouded - 4 Wall	2 A	Solder	Square	Natural	Brass	Tin	Board to Cable/Wire

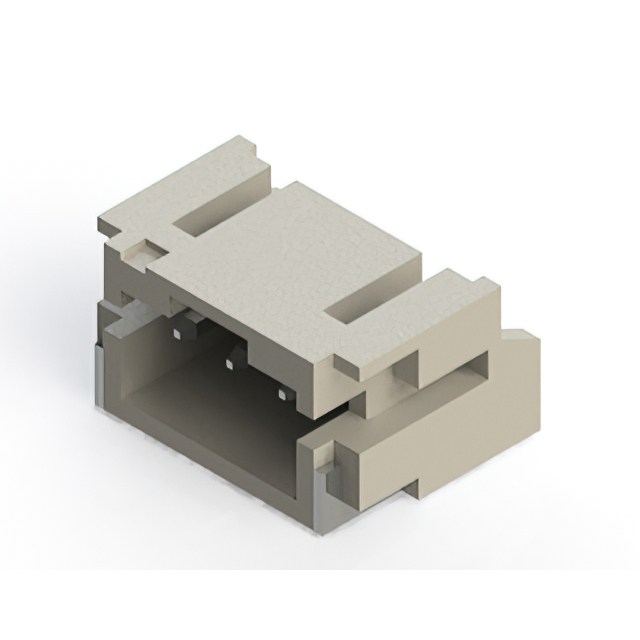

EDAC Inc. 140-503-417-060		Detent Lock	Nylon 9T Polyamide (PA9T)	85 °C	-25 °C		Solder Retention	Male Pin		Right Angle Surface Mount	1	Header					UL94 V-0	100 VAC	All	0.079 "	2 mm	Shrouded - 4 Wall	2 A	Solder	Square	Natural	Brass	Tin	Board to Cable/Wire	0.217 in	5.51 mm

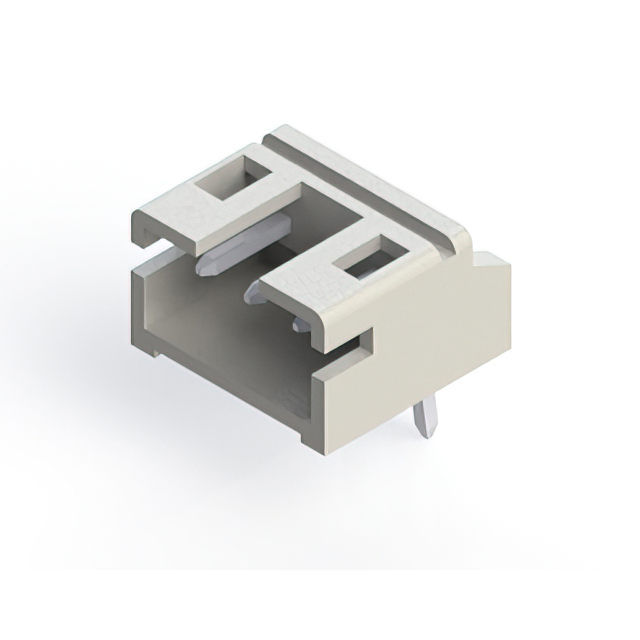

EDAC Inc. 140-503-415-000		Detent Lock	Nylon 6/6 Polyamide (PA66)	105 ░C	-40 C			Male Pin		Right Angle Through Hole	1	Header					UL94 V-0	100 VAC	All	0.079 "	2 mm	Shrouded - 4 Wall	2 A	Kinked Pin Solder	Square	Natural	Brass	Tin	Board to Cable/Wire	0.197 "	5 mm

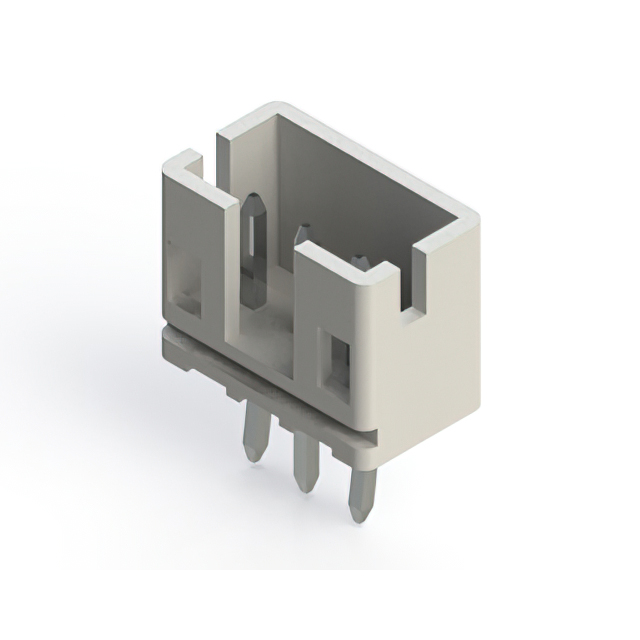

EDAC Inc. 140-503-415-001		Detent Lock	Nylon 6/6 Polyamide (PA66)	105 ░C	-40 C			Male Pin		Through Hole	1	Header			6.1 mm	0.24 in	UL94 V-0	100 VAC	All	0.079 "	2 mm	Shrouded - 4 Wall	2 A	Kinked Pin Solder	Square	Natural	Brass	Tin	Board to Cable/Wire
